QF2822-4300KV 64MM Ducted Fan Motor 5-Blade EDF Model Airplane Brushless Motor For RC Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.80
  • Price in reward points: 288 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.22 $27.65 $26.78 $25.63 Contact US
Quantity:

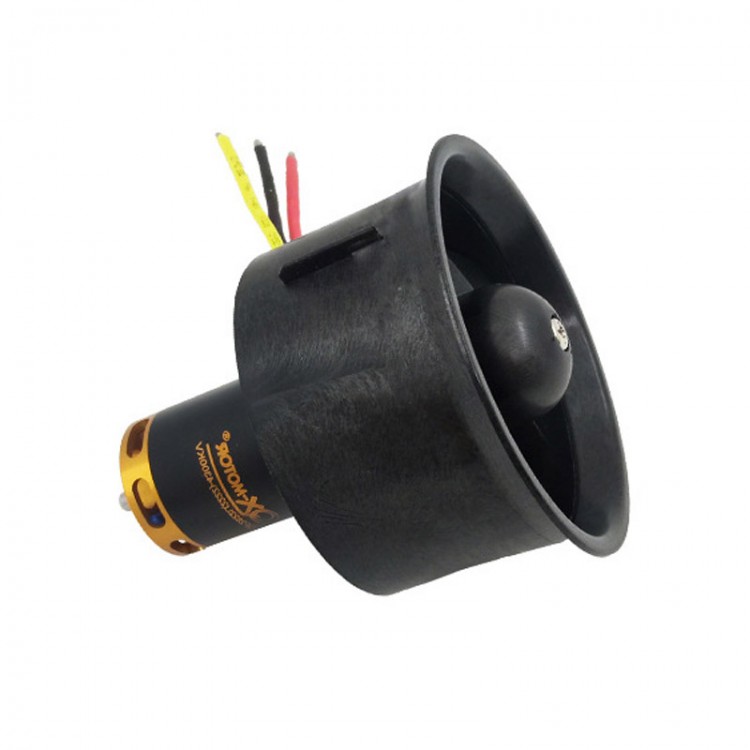

QF2822-4300KV 64MM Ducted Fan Motor 5-Blade EDF Model Airplane Brushless Motor For RC Drone

Description:

With QF2822-4300KV motor and 5 blades, 64mm duct is powerful and efficient! It features low temperature. It is suitable for the modification of ducted UAV below 1200g. It is an ideal choice for you!

Motor Parameters:
- Motor model: QF2822-4300KV
- KV: 4300KV
- Structure: 9N6P
- Stator diameter: 22MM
- Stator length: 22MM

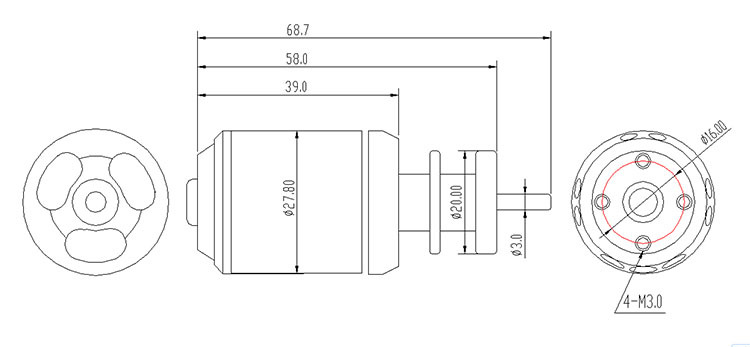

- Motor size: 28*60MM
- Motor weight: 90g
- No-load current: 3.5A
- Maximum power: 1000W
- Maximum current: 67A

Package Included:

- 1 x Set of Ducted Fan Motor

Note:
- It is recommenced to use
3-4S lithium battery which is not included.


Attention:
1. Choosing this product indicates that you are aware of the safe operation terms, otherwise please stop using this product.
2. For safety, please not direct the air inlet or outlet towards yourself or others.
3. This product should be installed and used under the parameter settings guided by the manufacturer. Please not change the voltage, overload or do any modifications.
4. This product has been tested for dynamic balance, please not disassemble or modify it by yourself, otherwise the product balance will be affected.
5. When the product is dynamically balanced, there will be a little scratch on the inner wall of the pipeline. Please make sure that you don't mind before purchasing. Thank you for your understanding!
