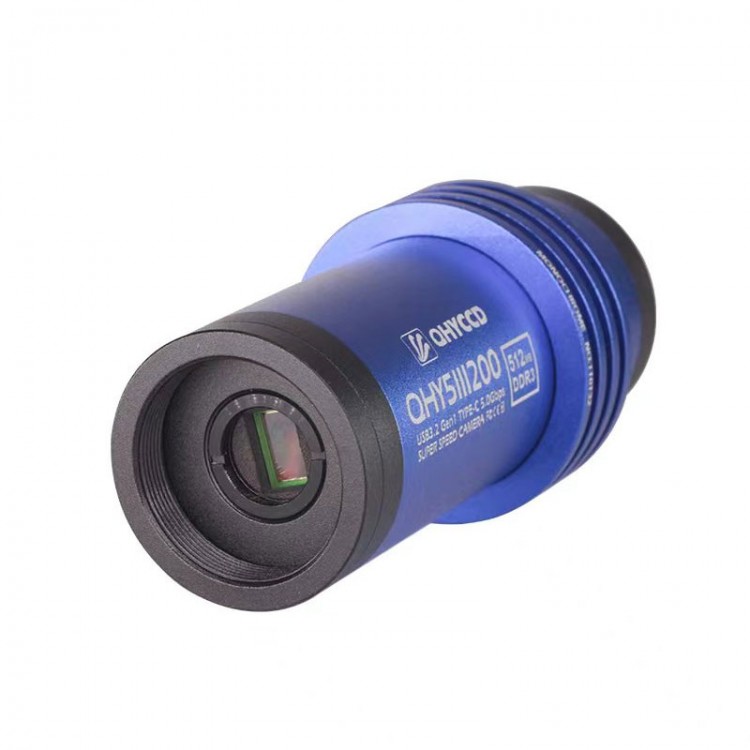

QHYCCD QHY5III200M 2MP Planetary Camera and Guiding Camera with High Near-infrared Sensitivity

QHYCCD QHY5III200M 2MP Planetary Camera and Guiding Camera with High Near-infrared Sensitivity

Description:
QHY5III200M is a new generation of QHY5III V2 series planetary and guiding camera, with excellent quality and near-infrared high sensitivity. The 4um large pixel makes it suitable for guiding.

In this latest generation of sensors, the photodiode portion of the pixel well is physically deeper than in previous sensors, allowing photons of longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensor's sensitivity to red and near-infrared (NIR) light. The sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.

QHY5III Series V2 Introduction:
512MB DDR3
* The QHY5III (Ver. 2) series planetary and guiding cameras are all equipped with a 512MB DDR3 image buffer which can effectively reduce the pressure on computer transmission, a great help for planetary photography which often requires writing a large amount of data in a short period of time. Some deep-sky astrophotography cameras on the market today only have 256MB, for example.
* In comparison, the 512MB DDR3 memory of the new 5III (Ver. 2) series cameras represents a significant upgrade.

New Front-end Design with Better Compatibility
* QHY5III (Ver. 2) series cameras have adopted a new front-end design with better compatibility.Here we only take QHY5III200M as example, however, ALL V2 cams in the future share these features.
* The BFL of V2 cam is only 8mm, which means that a V2 cam is easily compatible with your OAG. The basic top adapter includes 1.25 inch threads and you can still use your 1.25 inch filter.
* The top adapter glass of V2 can be easily switched. One of the advantages of changeable top glasses is you can use one filter even you're using Lens! You can add a 1.25inch-cs adapter to connect CS lens, or add a second CS-C lens for C-mount lens. The two adapters are all standard accessories of V2 cams.
* By the way, there's a 1.25-inch filter wheel adapter to connect your mono planetary cam with the QHYCFW3-S filter wheel.

USB 3.2 Gen1 Type C Interface
* The new QHY5III (Ver.2) series cameras all use the USB3.2 Gen1 Type-C interface. Compared to the USB3.0 Type-B interface used in the previous generation, the Type-C interface has a longer life and is more flexible.
* Tips: It is recommended to use the official standard Type-C data cable of QHYCCD. As the market is flooded with a large number of poor-quality Type-C cables, casual use may lead to the camera malfunctioning. If you use your own spare cable, please make sure it is a high-quality cable.

Universal Guiding Interface
The custom interfaces of the previous generation of planetary cameras and guiders has been replaced in the QHY5III (Ver.2) cameras with a more universal ST-4 compatible guiding interface. Now, even if the guiding cable is lost or damaged, you will be able to easily get a replacement on the market at a low cost.

LED Indicator Light
The new QHY5III (Ver.2) series of cameras is equipped with a status indicator at the back of the camera. If the camera experiences an abnormal status, the multi-colored indicator light will help to determine the situation with different colors signifying different conditions. During normal operation this indicator light is off, so there is no worry about light contaminating the image.

Specifications:
- Model: QHY5III200M
- Sensor: SC2210
- Pixel size: 4um*4um
- Resolution: 1920*1080
- Effective pixels: 2 Mega Pixel
- Full well capacity: 8000e
- Readout noise: 0.75e-3e
- AD: 12bit (output as 16bit and 8bit)
- Built-in image buffer: 512MB DDR3 Memory
- Frame rate (full resolution and partial readout mode):
* Full Resolution 96.5FPS at 8BIT and 60FPS at 16BIT
* 960Lines 187FPS at 8BIT and 116FPS at 16BIT
* 480Lines 209FPS at 8BIT and 130FPS at 16BIT
- Exposure time: 15um-900sec
- Shutter: Electric Rolling Shutter
- Transmission interface: USB3.2 Gen 1 Type-C
- Guide port: ST4
- Interface: 1.25-inch. It is compatible with CS-mount and C-mount lenses by replacing the front-end mount
- Optical window: Anti-reflection Glass
- Back focal length: 17mm
- Chip package size: 8.89mm x 5.79mm
- Weight: 90g

Package Included:
- 1 x Set of QHY5III200M Camera

Packaging Details:
- G.W.: 0.6kg

Note:
- Infrared filter is not included.
