Description:

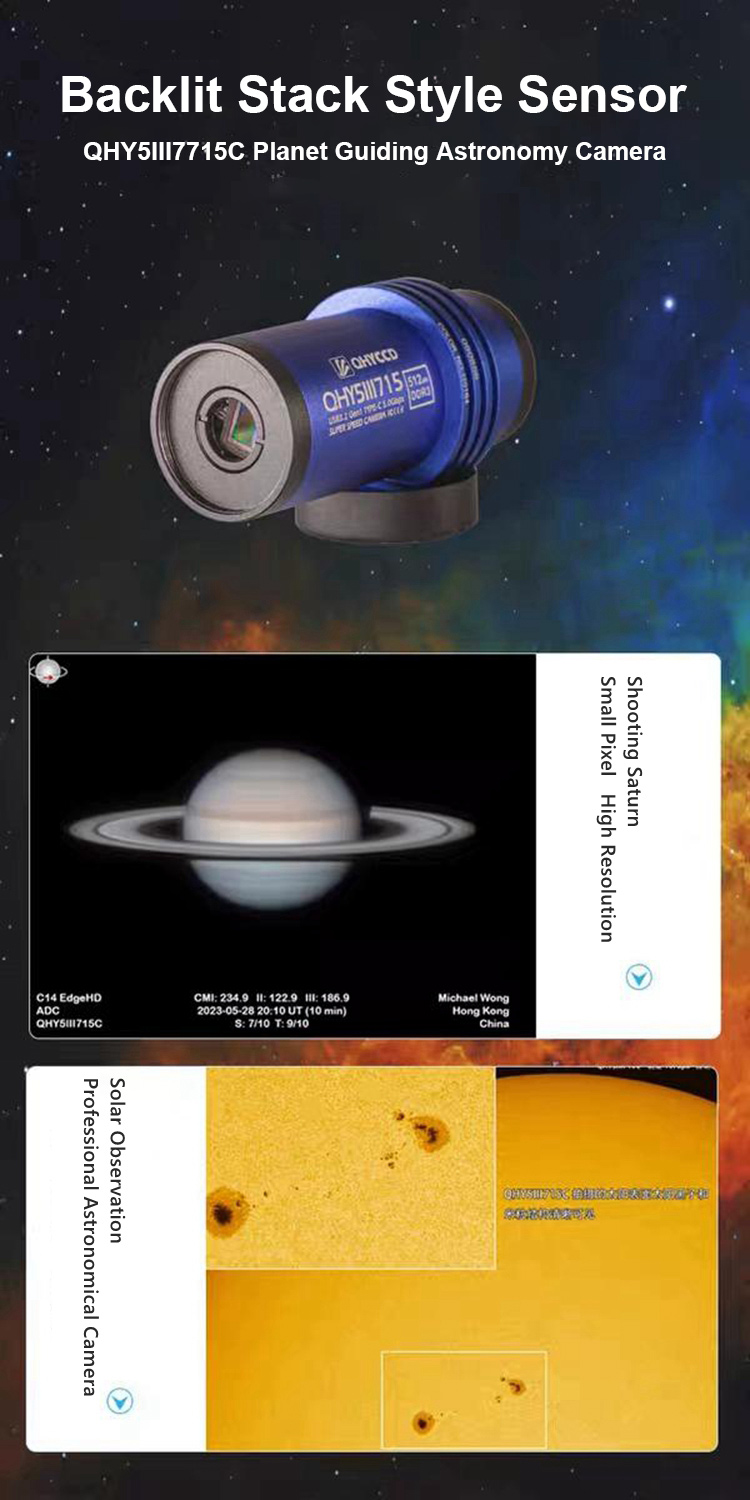

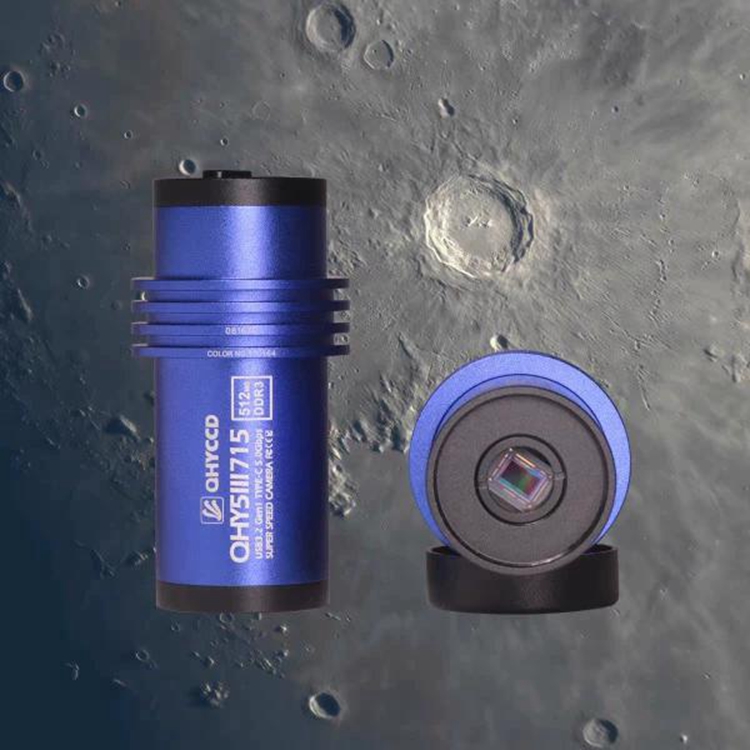

- The QHY5III715C is an ultra-high resolution backlit color camera with extremely low reading noise. The sensor has a 1/2.8-inch optical format, 4K resolution with 1.45um pixels. This makes the new QHY5III715C ideal for smaller refractors with short focal lengths.

- The QHY5III715C inherits all updates and improvements from the QHY5III Series Far 2 line of cameras.

- In this latest generation of sensors, the photodiode portion of the pixel well is physically deeper than in previous sensors, allowing photons with longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensitivity of the sensor to red and near-infrared (NIR) light. The sensor displays almost the same peak sensitivity for NIR light as for light in the visible spectrum.

- QHY5III (Far 2) series cameras have adopted a new front-end design with better compatibility. Here we take only QHY5III 200M as an example, but ALL V2 cams in the future share these features.

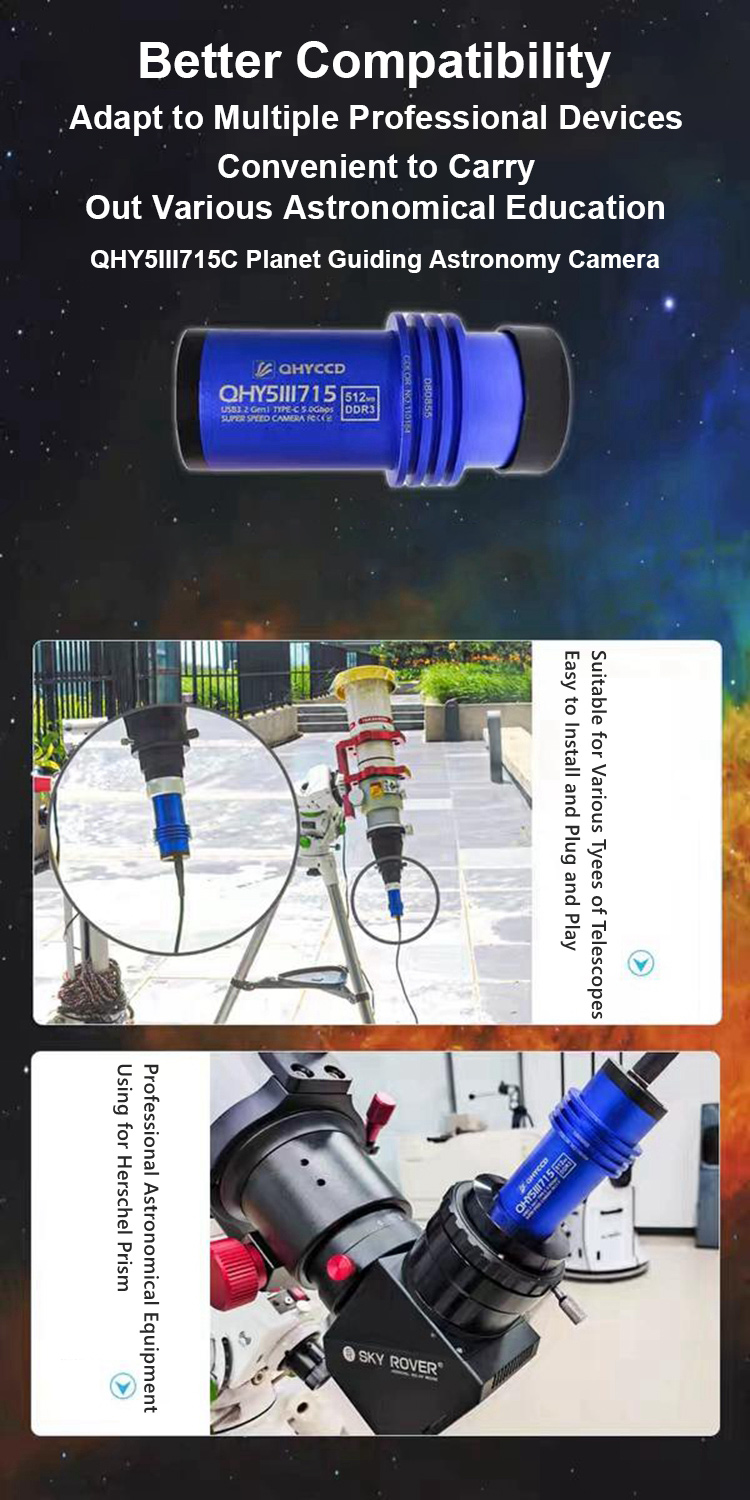

- The BFL of V2 cam is only 8mm, which means you can easily compat a V2 cam with your OAG. The standard top adapter includes 1.25 inch wires and you can still use your 1.25 inch filter.

- The upper adapter glass of V2 can be easily connected. One of the advantage of changeable top lenses is that you can use one filter, even if you use Lens! You can add a 1.25 inch-cs adapter to connect the CS lens, or add a second CS-C lens for a C-mount lens. The two adapters are all standard accessories of V2 cams.

- Besides, there is a 1.25 inch filter wheel adapter to connect your mono planetary cam to QHYCFW3-S filter wheel.

- The new cameras in the QHY5III series (Ver.2) all use the USB3.2 Gen1 Type-C interface. Compared to the USB3.0 Type-B interface used in the previous generation, the Type-C interface has a longer lifespan and is more flexible.

- Tips: It is recommended to use QHYCCD's official standard Type-C data cable. Because the market is flooded with a large number of poor quality Type-C cables, casual use can cause the camera to malfunction. If you are using your own spare cable, make sure it is a high quality cable.

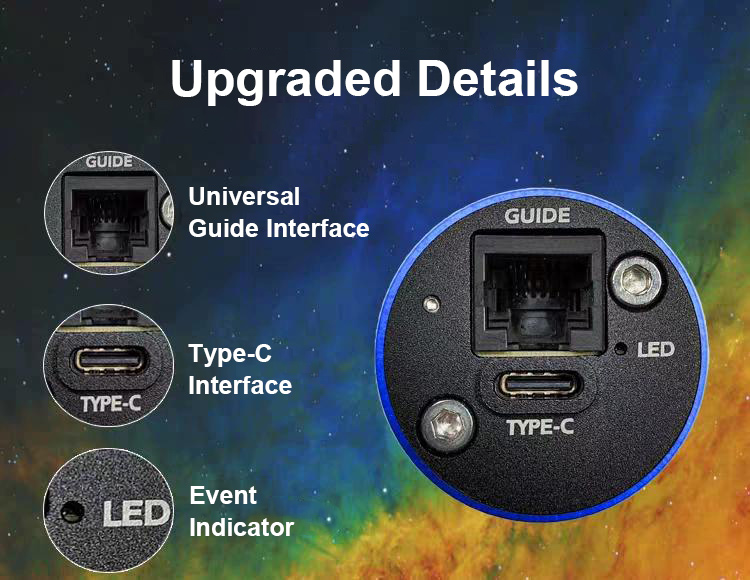

- The modified interfaces of the previous generation planetary cameras and conductors have been replaced in the QHY5III (Ver.2) cameras with a more universal ST-4 compatible conduction interface. Now, even if the conductor cable is lost or damaged, you can easily get a replacement on the market at low cost.

- The new QHY5III (Ver.2) series cameras are equipped with a status indicator on the back of the camera. If the camera experiences an abnormal state, the multi-colored indicator light helps to determine the situation with different colors indicating different conditions. During normal operation, this indicator light is off, so there is no worry about light that contaminates the image.

Specification:
- Model: QHY5III715C
- Sensor: for Sony IMX715
- Pixel size: 1.45um x 1.45um
- Resolution: 3840 x 2192
- Pixel number: 8.4Mega pixel

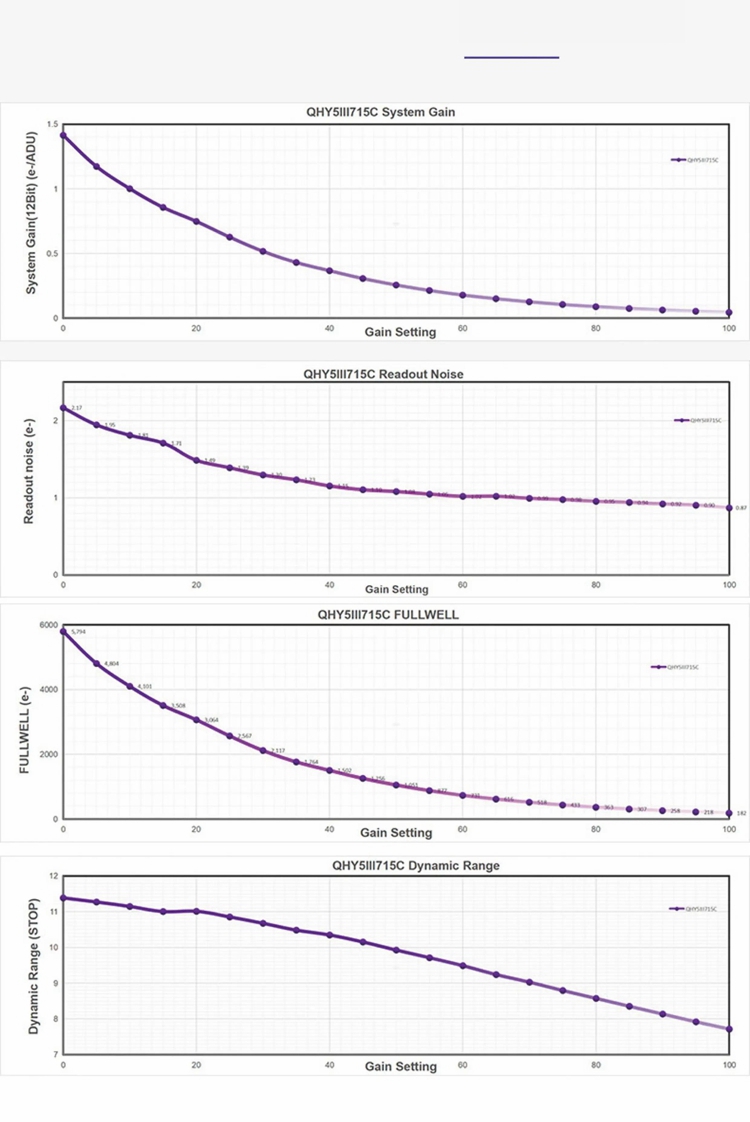

- Full well capacity: 5.7ke-
- Read-out noise: 0.87 - 2.17e-
- AD: 12-bit (output as 16-bit and 8-bit)
- Cache: 512MB DDR3 Cache
- Frame rate (full resolution and part of read-out mode):
  Full resolution: 42FPS at 8bit; 23FPS at 16bit
  1920Lines: 83FPS at 8bit; 47FPS at 16bit
  640Lines: 99FPS at 8bit; 99FPS at 16bit
- Exposure time: 11us - 900sec
- Shutter: Electric Rolling Shutter
- Transmission interface: USB3.2 Gen1 Type-C
- Guiding: st4
- Interface: 1.25-inch, compatible with CS and C port lenses by replacing the front interface
- Front end: standard configuration can replace IR anti reflective glass
- Back intercept: 8 +/- 0.5mm (camera body); 17mm (after adding the connecting ring)
- Chip packaging size: 5.6mm x 3.2mm
- Debayer: GBRG
- Net weight: 90g

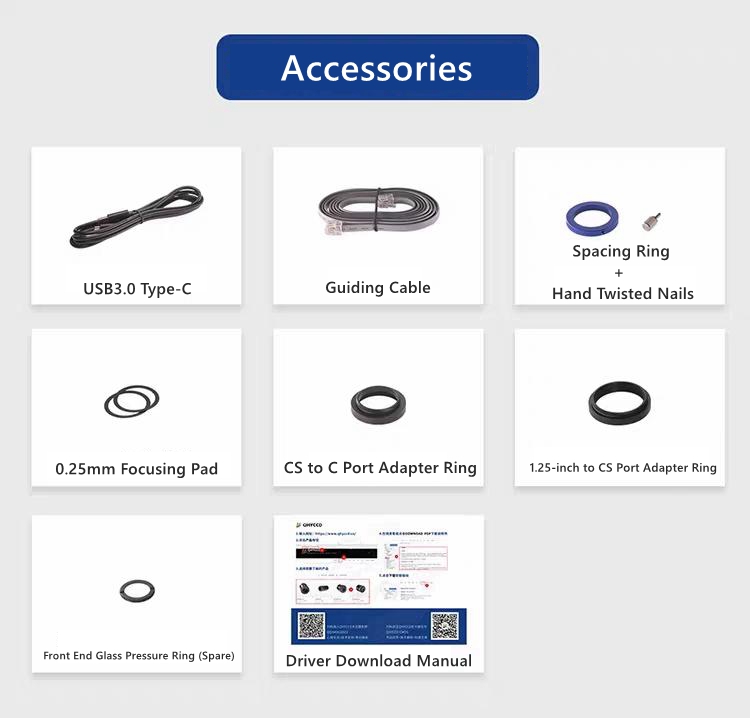

Package Included:
- 1 x Astronomy Camera
- 1 x USB3.0 Type-C
- 1 x Guiding Cable
- 1 x Spacing Ring + Hand Twisted Nails
- 2 x 0.25mm Focusing Pad
- 1 x CS to C Port Adapter Ring
- 1 x 1.25-inch to CS Port Adapter Ring
- 1 x Front End Glass Pressure Ring (Spare)
- 1 x Driver Download Manual

Note:
- The telescope displayed in the picture is not included.
