QLeTEK KL150A 100V 150A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter

QLeTEK KL150A 100V 150A Bluetooth Smart Battery Monitor Coulometer Voltmeter Voltage Current Meter

Download APP for Android:
http://www.qletek.com/static/upload/other/20231223/1703323867184739.apk

Features:
Complete Features
- 32-bit main control chip
- Users can view historical data
- All-copper fittings: ultra-low power consumption
- Bidirectional current detection
- Dual-channel voltage detection
- High accuracy and percentage
- The data is accurate and has no temperature drift
- Mobile phone Bluetooth control
- Temperature detection

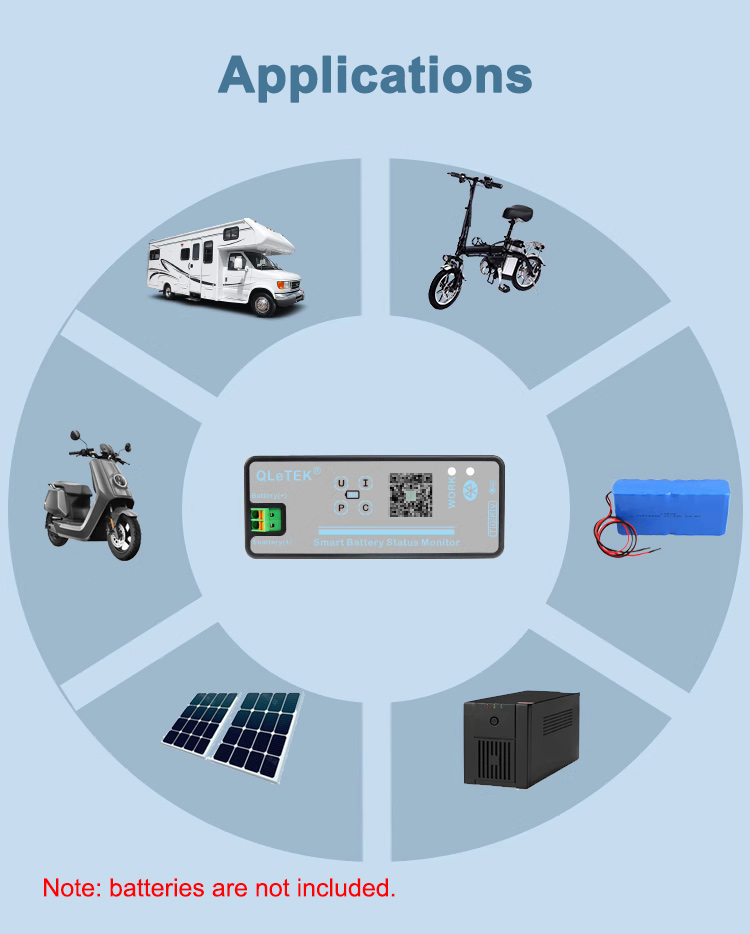

Applications
- E-bike monitoring
- Battery testing
- Power supply device detection
- Photovoltaic system inspection
- Electric quantity monitoring
- Battery monitoring for RVs

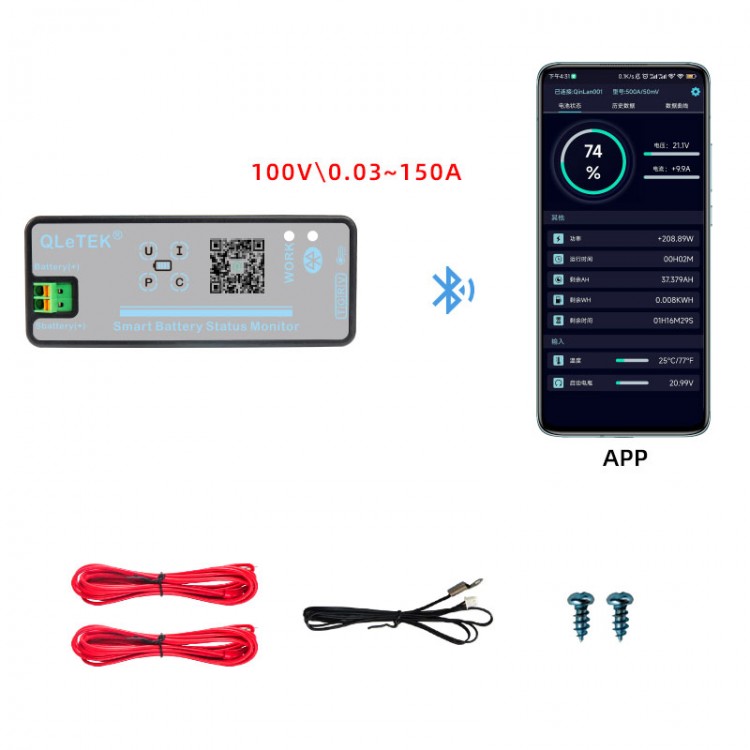

Bluetooth APP
- Mobile APP supports curve display. It can display real-time curves of voltage and current, and export historical data.

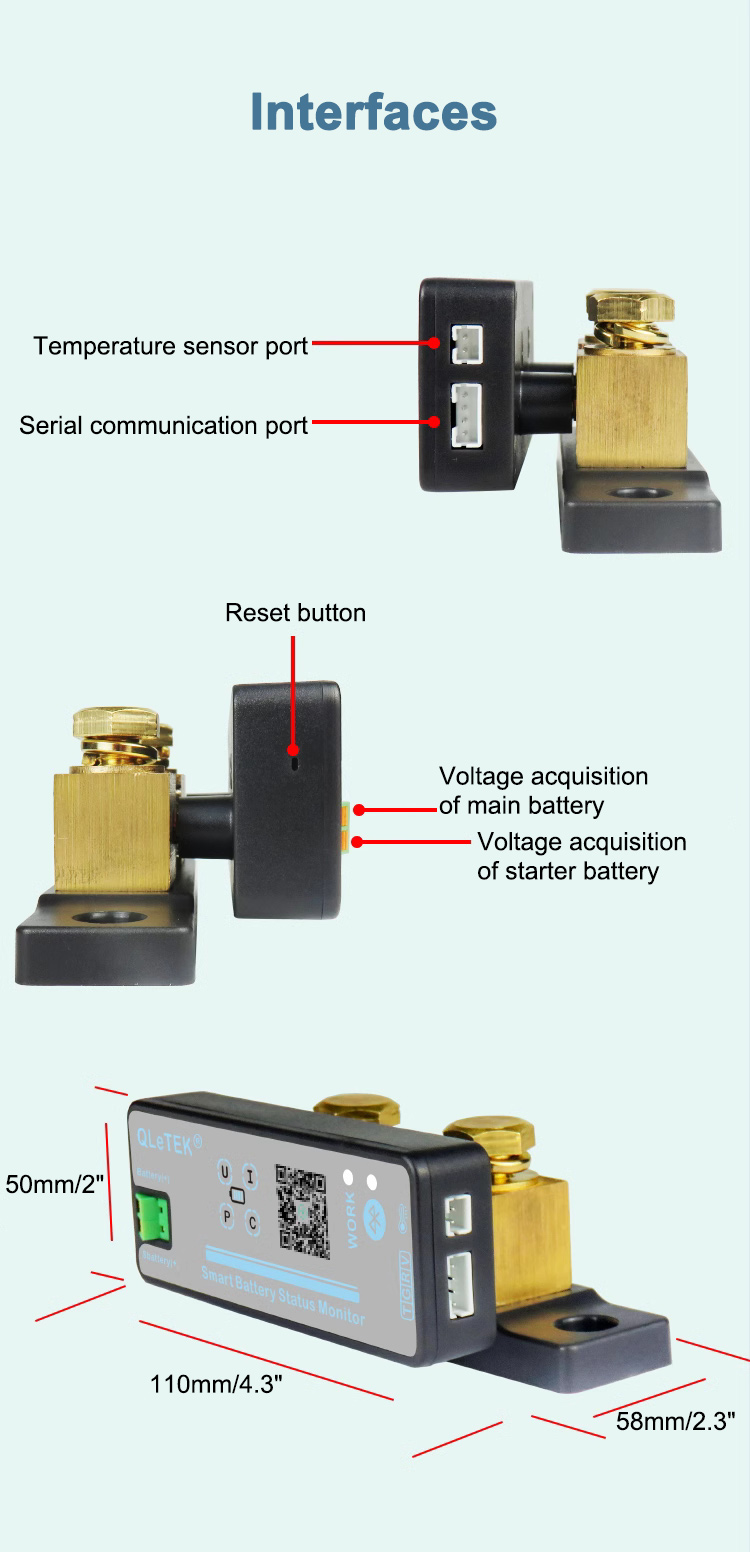

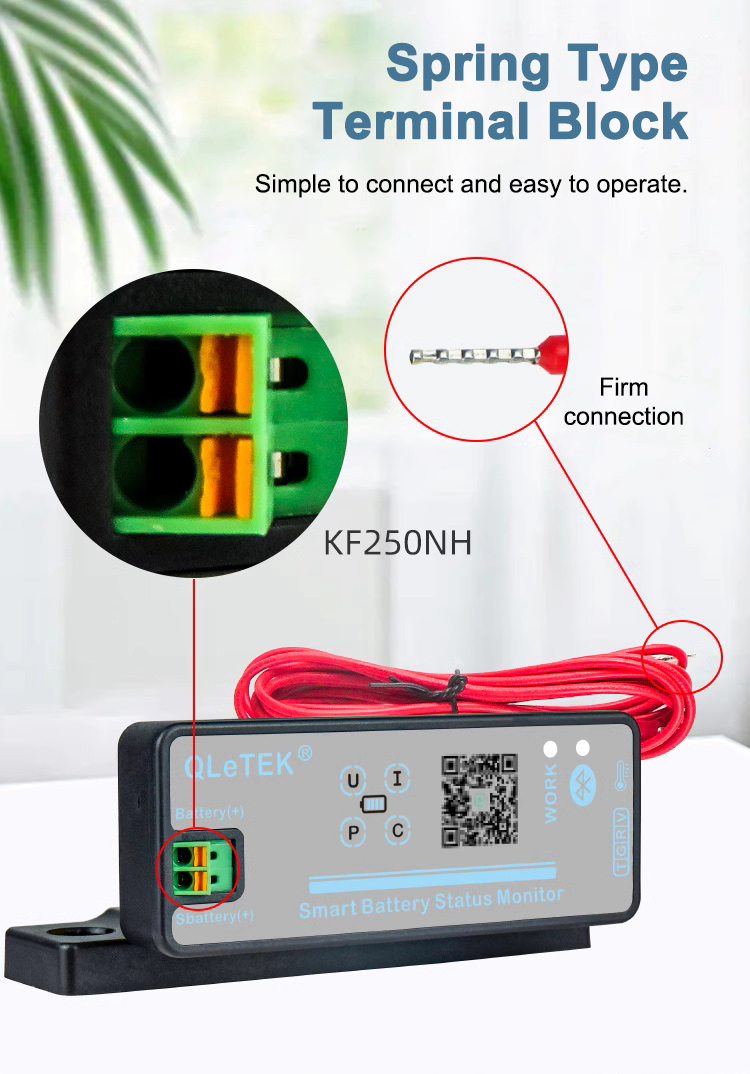

Spring type terminal block
- Simple to connect and easy to operate
- Firm connection

Alarms make it convenient for users to monitor the working status in real time
- OTP: Over-temperature protection
- OCP: Charging over-current protection
- NCP: Discharge over-current protection
- LVP: Low-voltage protection for main battery
- OVP: Over-voltage protection for main battery
- LPP: Percentage of remaining capacity

PC flame retardant material is resistant to 120℃ high temperatures
- High-temperature resistant material can effectively prevent deformation caused by high temperatures

Newly upgraded current sampler
- The year-on-year power consumption is reduced by 50%, and its heat generation is smaller

Package Included:
- 1 x Main unit
- 2 x Voltage acquisition cables
- 1 x Temperature sensor
- 2 x Base fixing screws

Packaging Details:
- G.W.: 0.38kg

Note:
- Batteries are not included in the package.
