QM-BPF2450A 2.4G Bandpass Filter 2450MHz Bluetooth WiFi BPF Anti-interference Filtering with SMA-K Connector
Description:

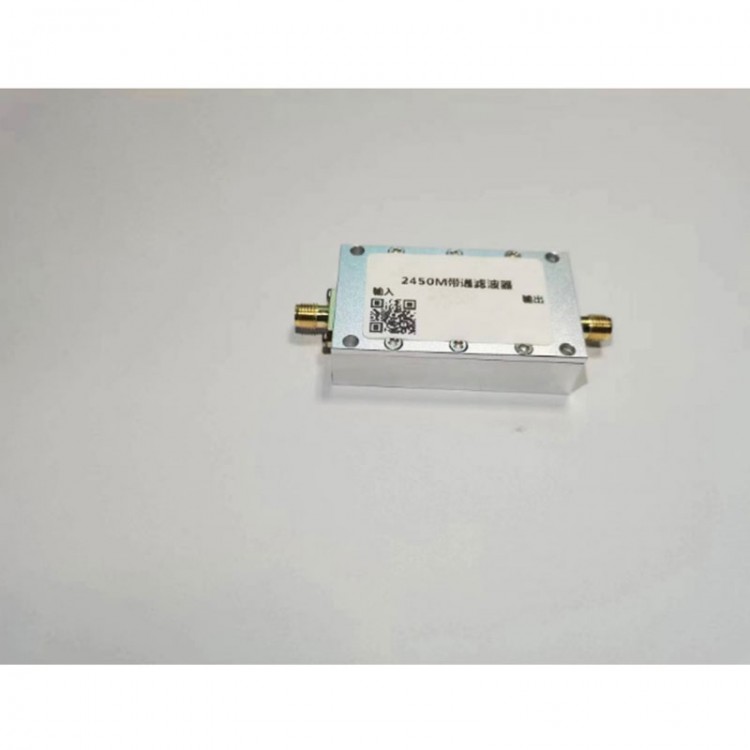

- The 2450MHz bandpass filter is packaged in a CNC structure shell and has excellent electromagnetic shielding. It is specifically designed for optimizing the performance of 2450M receivers, wireless image transmission, WiFi, and Bluetooth anti-interference. It is used for suppressing out of band signals, optimizing device performance, and improving receiver sensitivity. The module has mounting holes and can be integrated with other devices for use; This module has low insertion loss, good cutoff, high out of band suppression, and can be widely used in 2.4G communication systems.
Specification:
- Model: QM-BPF2450A
- Insertion loss: ≤2.0dB (2400 - 2490MHz)
- Bandwidth: 90MHz
- Out-of-band rejection: ≥27dB at 1500MHz; ≥30dB at 4800MHz
- Power capacity: 15dBm
- Input and output SWR: < 1.8 (within passband)
- Module connector: SMA-K

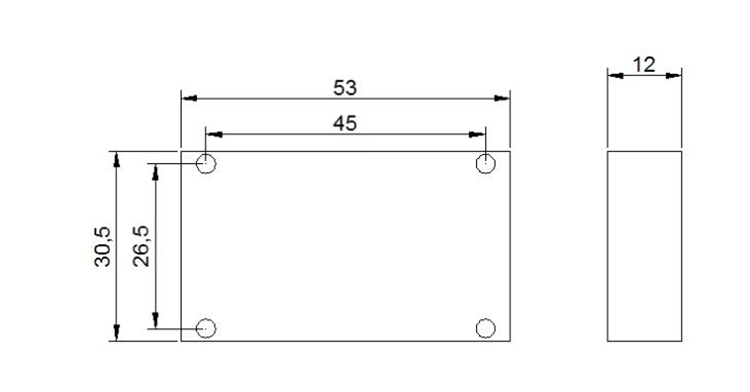

- Size: 53 x 30 x 13mm (excluding the connector length)
Package Included:
- 1 x Bandpass Filter

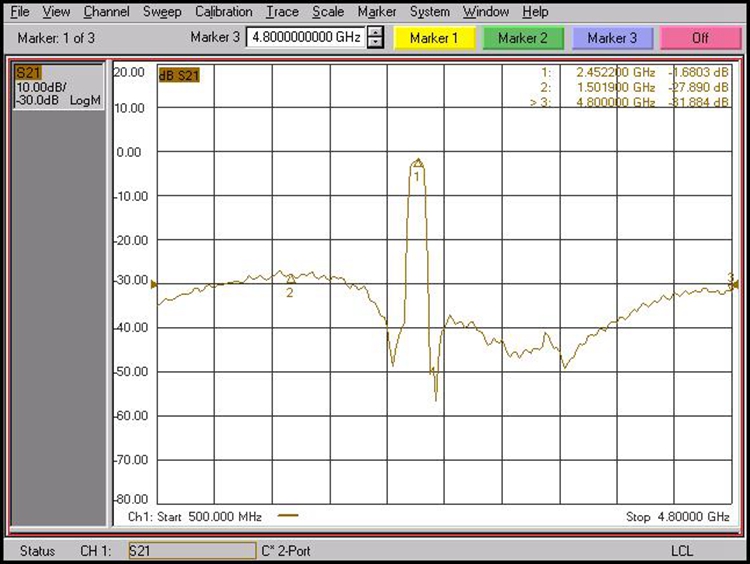

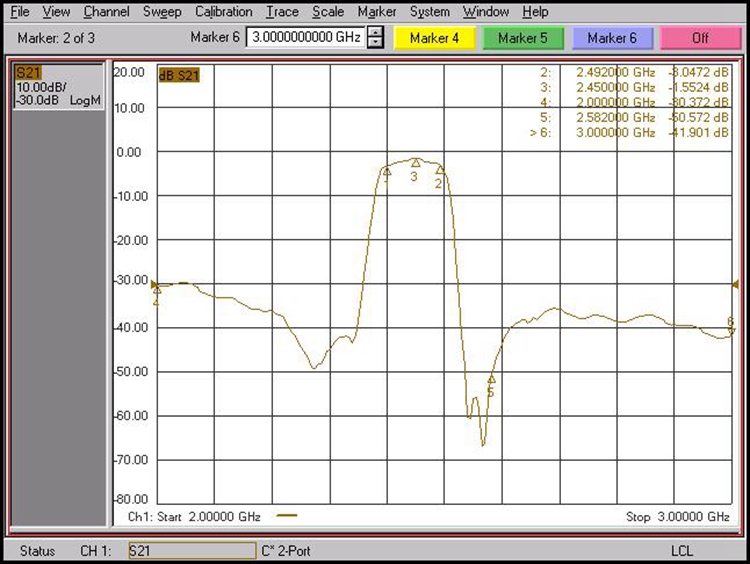

Testing Curves:
