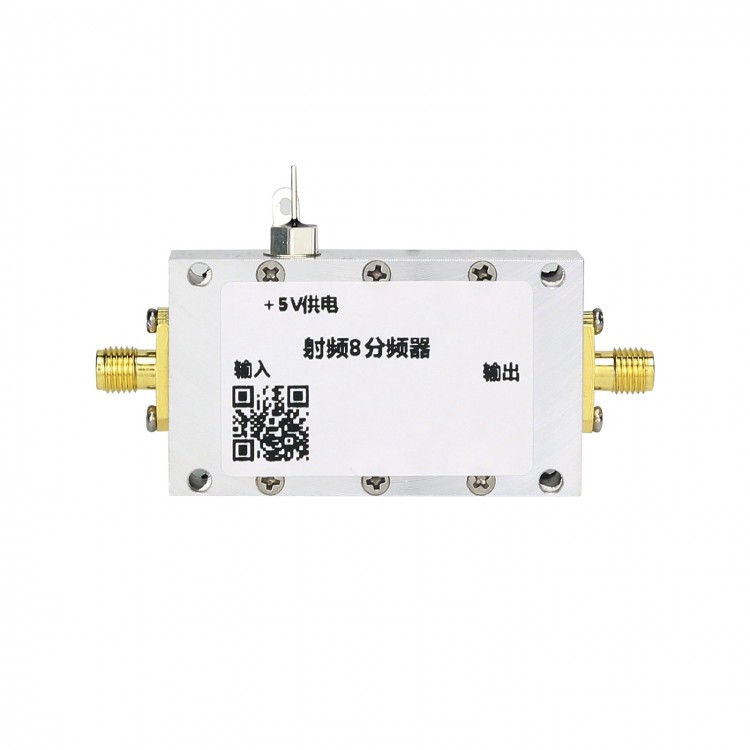

QM-FD8H 200MHz-8.5GHz RF Frequency Divider Frequency Prescaler Enabling Frequency Division by 8
Description:
The module realizes wideband frequency division by 8, covering the frequency range of 200MHz-8.5GHz. In frequency measurement systems, this module can be used to convert high-frequency signals into low-frequency signals, which is convenient for subsequent processing. At the same time, it can be applied to other signal frequency division occasions (point-to-point communication), which needs to be converted from high-frequency signals to low-frequency signals. With CNC structure shell, the module also has excellent electromagnetic shielding performance.
Typical Applications:
- Frequency measurement (frequency meter)
- Point-to-point communication
- Optical fiber communication system
- Other frequency division systems
Technical Parameters:
- Module model: QM-FD8H
- Module power supply: +5V power supply
- Working current: 65mA
- Input frequency range: 200MHz-8.5GHz
- Frequency division factor: 8
- Input level requirements: -10dBm to +10dBm (200M-3GHz); 0 to +10dBm (3-8.5GHz)
- SSB phase noise (100KHz offset): -150dBc/Hz
- Maximum input power: +13dBm
- Input and output interface: SMA female connector
- Input and output impedance: 50Ω
Package Included:
- 1 x RF Frequency Divider
