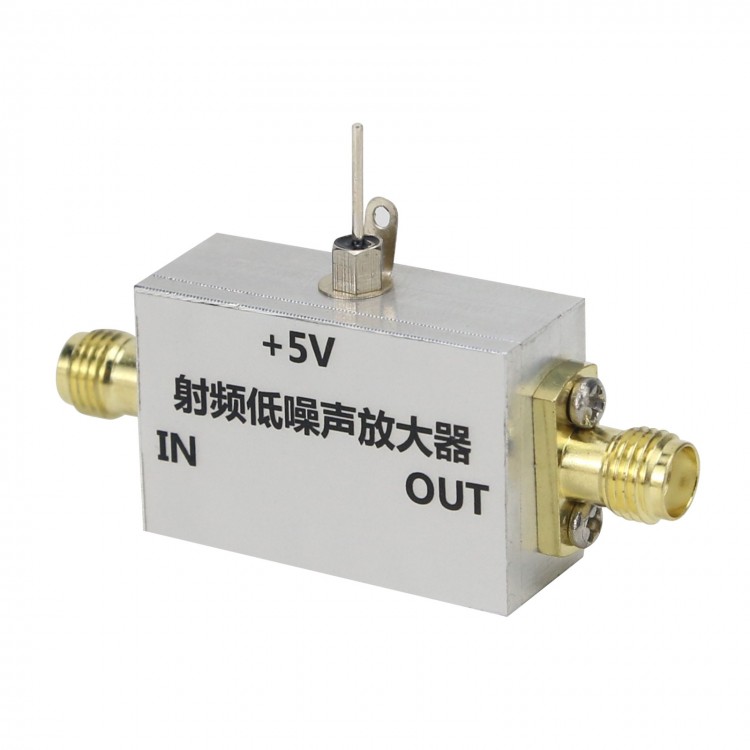

QM-LNA0218T 2-18GHz Low Noise Amplifier High-Gain LNA Amplifier RF Broadband Receiver Amplification
Description:
This RF low noise amplifier operates in the range of 2-18GHz. The module has a low noise figure and covers bands including S, C, X and KU. Offering a typical gain of 18dB, it can be used to increase the power of the received signal in the corresponding frequency band receiving system, especially in S-band, C-band, X-band, and Ku-band receiver systems to improve the system reception sensitivity.
Using imported high-frequency plate and CNC structure packaging, the module has good electromagnetic shielding performance. The small size of the module makes it easy to install and use in supporting equipment.
Specifications:
- Model: QM-LNA0218T
- Operating frequency: 2-18GHz
- Gain: 18dB typical
- Noise figure: 1.8dB MAX
- P1dB output: 12dBm at 2GHz; 14dBm at 10GHz; 14dBm at 18GHz
- Power supply: +5V power supply
- Power supply mode: feed-through capacitor
- Current: 80mA
- Input and output interface: SMA-K
- Impedance: 50 ohms

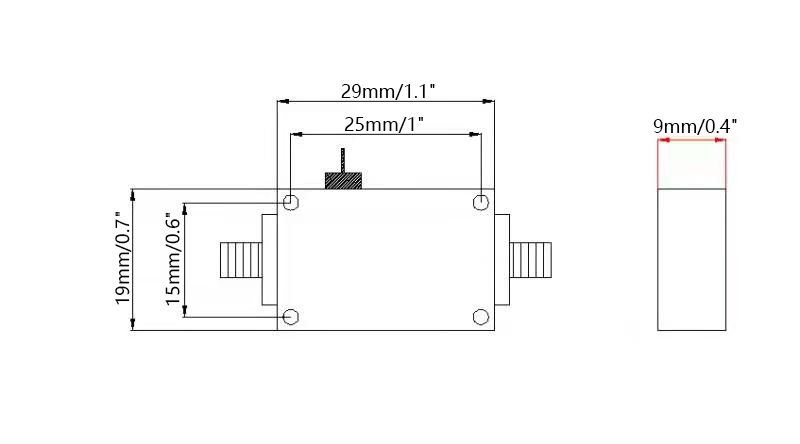

- Module dimensions: 29 x 19 x 9mm/1.1 x 0.7 x 0.4"
- Weight: 50g/0.1lb
- With mounting holes
Attention:
- Power supply: +7V (limit value)
- Input signal: +8dBm (limit value)
- Operating temperature: -40°C to +85°C
- Storage temperature: -65°C to +150°C
Package Included:
- 1 x Module

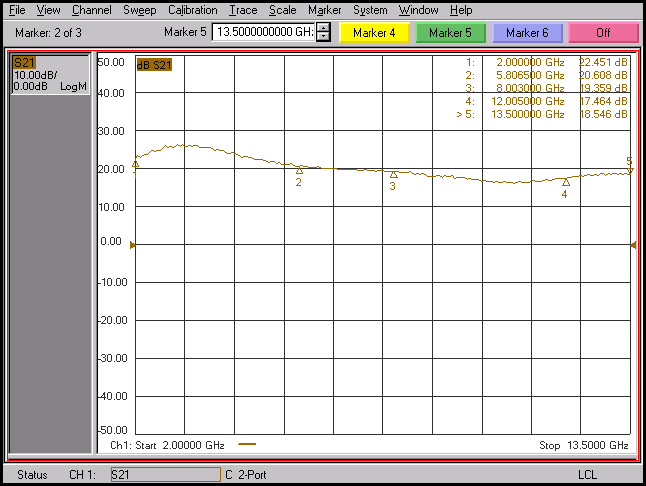

Tested Gain:
