QM-LNA054050T 0.05-4GHz Low Noise Amplifier LNA 50DB Receiver Amplifier High-Gain GPS LNA Amplifier
Description:
This module adopts a wide range of voltage power supply, with 50dB typical value, supports +9V to +24V, and adopts imported LNA chip featuring super low noise. Its CNC housing package has excellent electromagnetic shielding performance. The module can operate in the range of 0.05-4G, with multiple stages of high gain amplification and excellent noise figure. It can be widely used in the front end of broadband receiver systems, especially in Beidou and GPS system receivers.
Technical Specifications:
- Module model: QM-LNA054050T
- Operating voltage: +9 to +24V supply
- Operating Current: 100mA at +12V Supply (Low Power Consumption)
- Operating frequency: 0.05-4GHz
- Gain: 53dB at 1.575GHz (refer to test curve below)
- P1dB Output Power: 100mW (20dBm)
- Noise figure: 0.8dB
- Input and output interface: SMA (female connector)

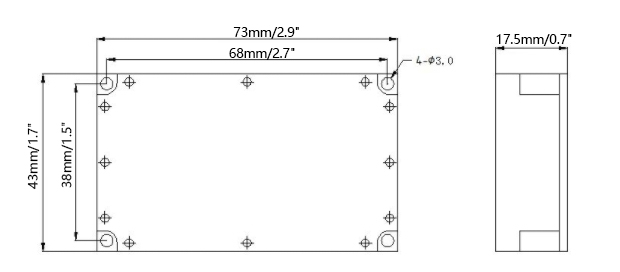

- Module dimensions: 73 x 43 x 17.5mm/2.9 x 1.7 x 0.7" (without connector)
- With mounting holes
- The module is used at the receiving end and the maximum input power must not exceed -30dBm
Package Included:
- 1 x Module

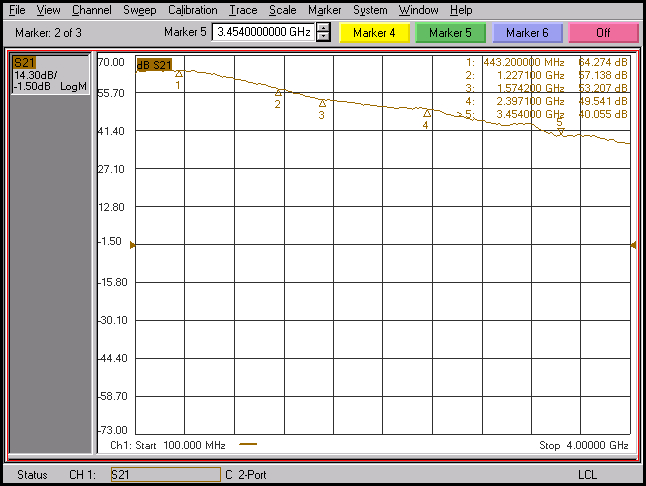

Tested Gain:
