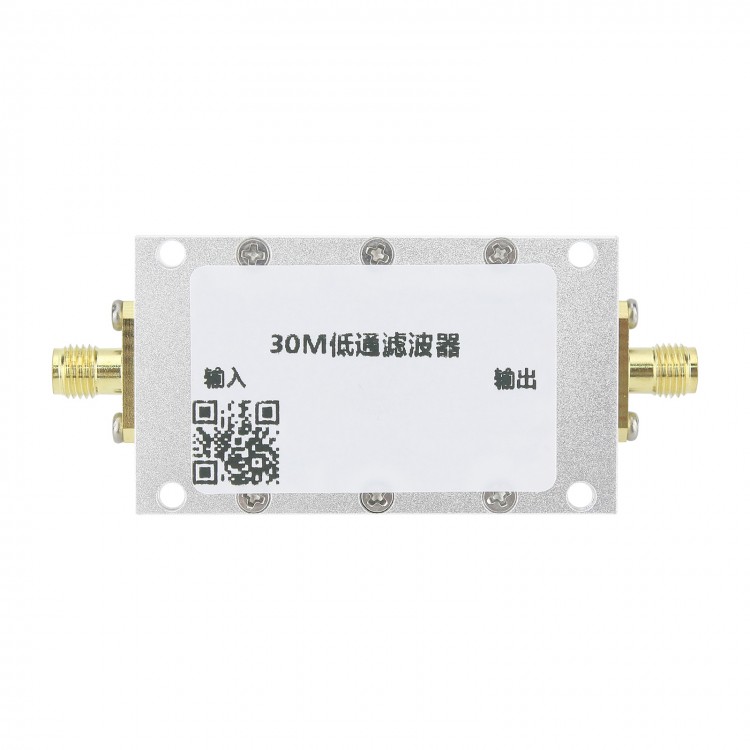

QM-LPF30T 30MHz Low Pass Filter Module Harmonic Filter 30M IF Filter Suitable for Transceiver System
Description:
The LC low-pass filter can be used for the second harmonic filtering of the IF signal and the frequency selection after mixing. Its pass-band insertion loss is low, the out-of-band suppression degree is high, and the structure is compact. It can be widely used in the communication circuits related to transceiver systems. The module filters out 30M out-of-band harmonics. It is used for sine wave optimization near the 30MHz frequency and to filter out out-of-band harmonics.
Specifications:
- Module model: QM-LPF30T
- Cut-off frequency: 30MHz
- Input and output impedance: 50Ω
- In-band insertion loss: <1.0dB
- Out of band suppression: >20dB at 45MHz; ＞52dB at 100MHz
- Interface form: SMA female
- Power capacity: <27dBm
- Input and output port standing wave: ≤1.2
- Module dimensions: 53 x 30.5 x 14mm/2.1 x 1.2 x 0.6" (without the sizes of connectors)
Package Included:
- 1 x Low Pass Filter
Packaging Details:
- G.W.: 0.15kg

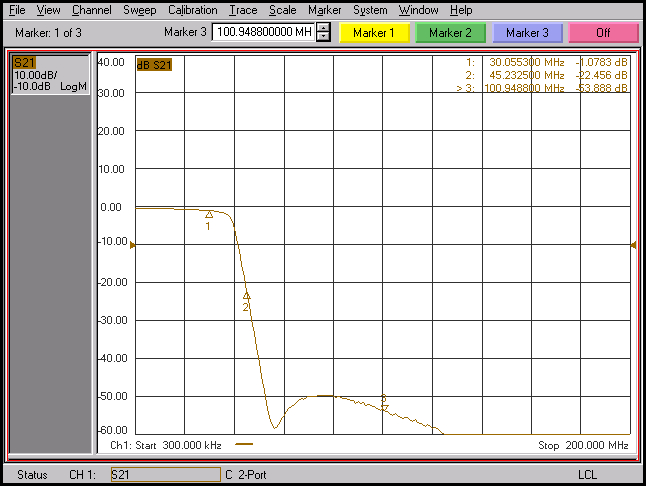

Measured Parameters of the Module:

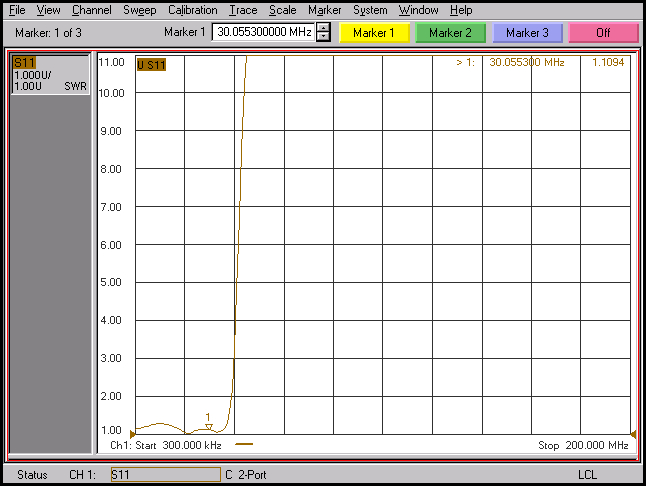

Port Standing Wave:

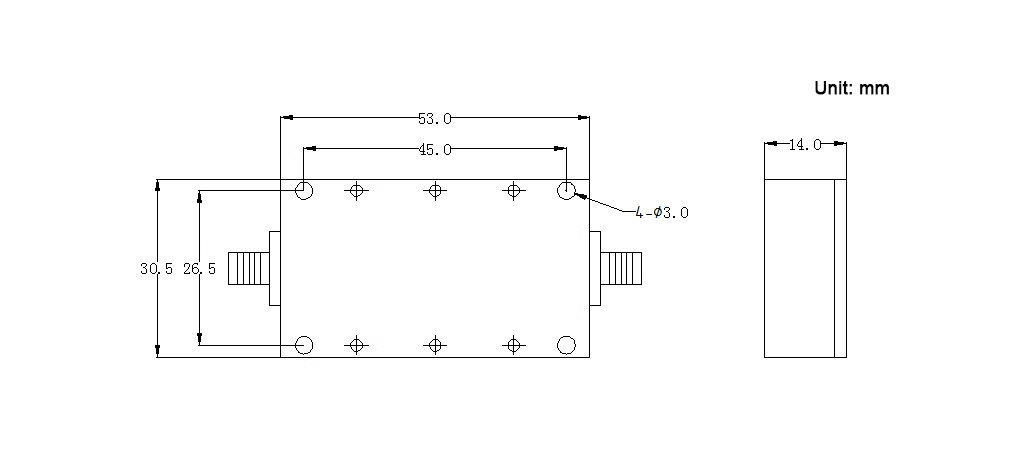

Module Mounting Holes:
