QM-PD3-18S 100-1000M 3-Way RF Power Divider RF Power Splitter RF Power Combiner for VHF UHF

Description:
This module realizes one-to-three-power equal division and equal-phase output. It is used in the frequency range of 100-1000M, covering UHF and VHF. It can be typically used in FM, 315, 433M, LORA and other communication systems. It also has low insertion loss and high isolation. Thanks to its CNC structure cavity, the module has excellent electromagnetic shielding performance. Additionally, it is small and easy to install and integrate with other equipment.

Technical Parameters:
- Performance: 3-way power equalization
- Model: QM-PD3-18S
- Operating frequency: 100-1000MHz
- Insertion loss: ≤0.8dB (excluding distribution ratio 4.8dB)
- Branch port isolation: 18dB (typical)
- Power capacity: 27dBm
- Input and output impedance: 50Ω
- Interface: SMA female connector
- Module size: 54 x 38 x 12mm/2.1 x 1.5 x 0.5" (with mounting holes)

Package Included:
- 1 x RF Power Divider

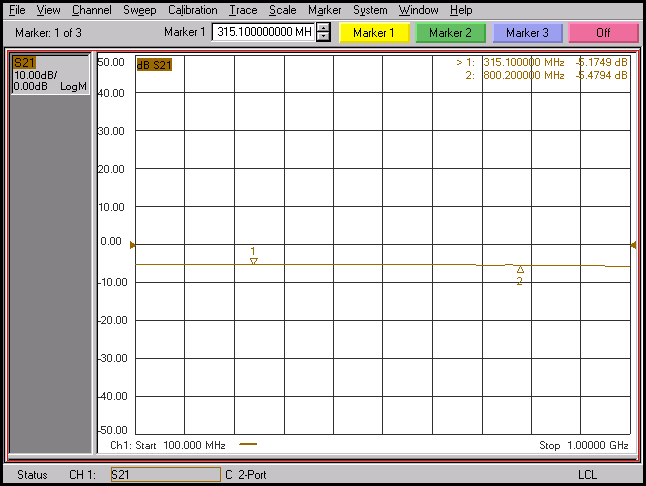

Measurement of module insertion loss:

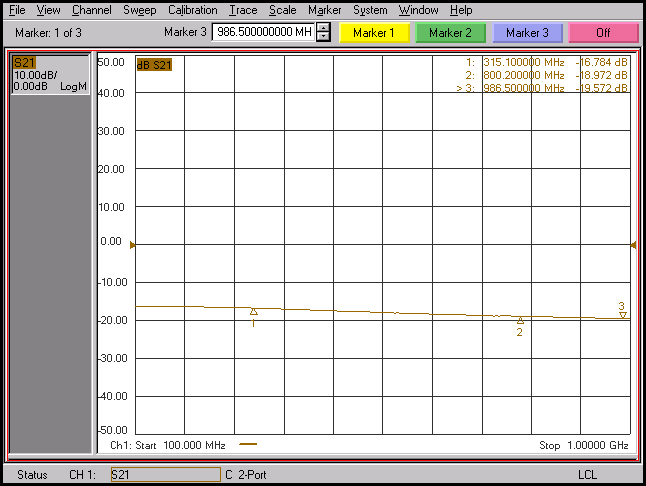

Module isolation measurement:

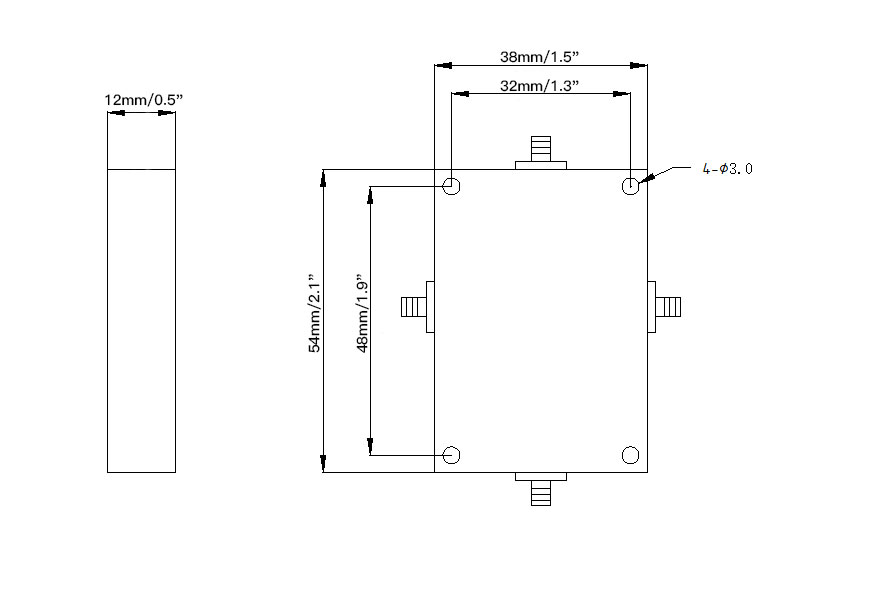

Dimensions and mounting holes:
