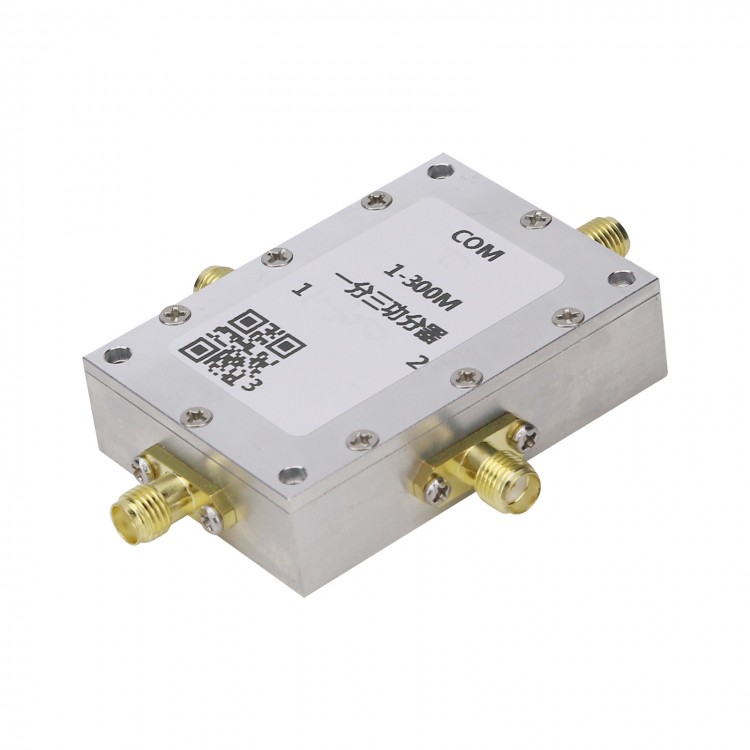

QM-PD3-25S 1-300M 3-Way RF Power Divider RF Power Splitter IF Power Combiner Clock Distributor
Description:
This module realizes one-to-three-power equal division and equal-phase output. It is used in the frequency range of 1-300M, and low-end frequency can reach 500KHz. With low insertion loss and high isolation, the module can be widely used in typical transceiver systems below 300M, especially in clock distribution circuits and other IF circuit signal distribution applications. It adopts CNC structure cavity and has excellent electromagnetic shielding performance. The small size of the module makes it easy to install and integrate with other equipment.
Technical Parameters:
- Model: QM-PD3-25S
- Performance: 3-way power splitter
- Operating frequency: 1-300MHz (can be as low as 500K)
- Insertion loss: ≤0.6dB (excluding distribution ratio 4.8dB)
- Branch port isolation: 35dB (typical)
- Power capacity: 27dBm
- Input and output impedance: 50Ω
- Interface: SMA female connector
- Module size: 54 x 38 x 12mm/2.1 x 1.5 x 0.5" (with mounting holes)
Package Included:
- 1 x RF Power Divider
Measurement of module insertion loss:

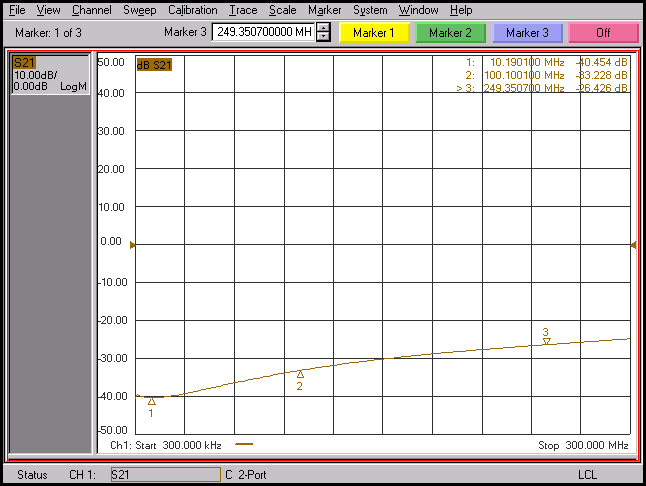

Module isolation measurement:

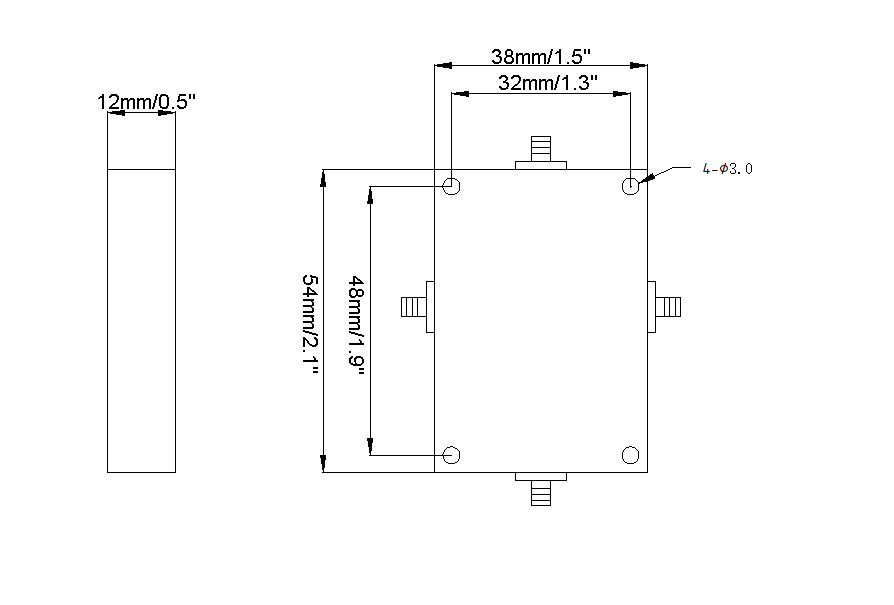

Dimensions and mounting holes:
