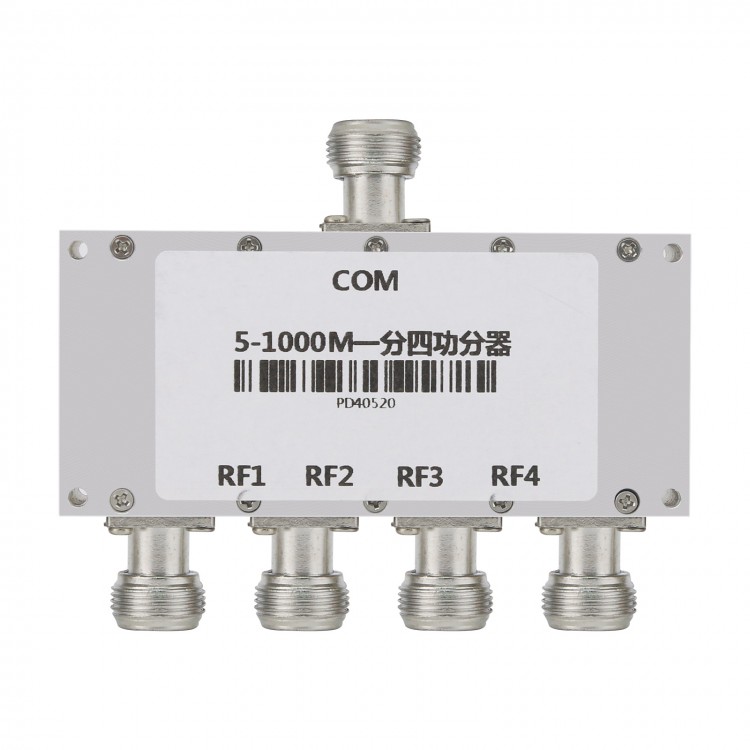

QM-PD4-051020N 5-1000M RF Power Divider RF Power Splitter One Input Four Output RF Power Combiner

Availability: In stock, usually dispatched in 1 business day

  • Price:$47.94
  • Price in reward points: 479 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.98 $46.02 $44.58 $42.67 Contact US
Quantity:
Buy it now Add cart

You might like

QM-PD3-18S 100-1000M 3-Way RF Power Divider RF Power Splitter RF Power Combiner for VHF UHF

QM-PD3-18S 100-1000M 3-Way RF Power Divider RF Power Splitter RF Power Combiner for VHF UHF

$34.16

(0)
QM-PD4-05100S RF Power Divider Power Combiner 5-1000M Power Splitter SMA Connector One To Four

QM-PD4-05100S RF Power Divider Power Combiner 5-1000M Power Splitter SMA Connector One To Four

$38.42

(0)
QM-PD011020N 1-1000M RF Power Divider One Input Two Output RF Power Combiner Power Splitter for 433M

QM-PD011020N 1-1000M RF Power Divider One Input Two Output RF Power Combiner Power Splitter for 433M

$39.85

(0)
10M-3GHz RF Power Splitter Clock Distributor 1 IN 4 OUT with SMA Connector for 2.4G Wifi Uses

10M-3GHz RF Power Splitter Clock Distributor 1 IN 4 OUT with SMA Connector for 2.4G Wifi Uses

$31.99

(0)
PS4-0.5/6-SE 500MHz - 6000MHz Power Divider One to Four Power Splitter with Stainless Steel SMA Female Connector

PS4-0.5/6-SE 500MHz - 6000MHz Power Divider One to Four Power Splitter with Stainless Steel SMA Female Connector

$59.13

(0)
QY-PS2-0.8/3-SI 800-3000MHz 2-Way RF Power Splitter 0.8-3GHz RF Power Combiner with SMA Connector

QY-PS2-0.8/3-SI 800-3000MHz 2-Way RF Power Splitter 0.8-3GHz RF Power Combiner with SMA Connector

$28.58

(0)
PD-0.6/6-2N 600-6000MHz Power Splitter 2-Way Microstrip Power Divider RF Combiner with N-K Connector

PD-0.6/6-2N 600-6000MHz Power Splitter 2-Way Microstrip Power Divider RF Combiner with N-K Connector

$50.33

(0)
QM-PD3-25S 1-300M 3-Way RF Power Divider RF Power Splitter IF Power Combiner Clock Distributor

QM-PD3-25S 1-300M 3-Way RF Power Divider RF Power Splitter IF Power Combiner Clock Distributor

$42.19

(0)

QM-PD4-051020N 5-1000M RF Power Divider RF Power Splitter One Input Four Output RF Power Combiner

Description:
A RF power divider is a device that divides the energy of one input signal into two or more outputs of equal or unequal energy. Similarly, when used as a power combiner, it can also synthesize multiple signal energies into one output.

It is designed with one input and four output ports. The module is used for 5-1000M. Due to its low insertion loss and high isolation, it is widely used in typical transceiver systems such as UHF, VHF, and 433M. In addition, using CNC structure cavity, the module has excellent electromagnetic shielding performance.

Technical Parameters:
- Performance: One input and four output ports
- Model: QM-PD4-051020N
- Operating frequency: 5-1000 MHz
- Typical insertion loss: 1dB
- Breakout port isolation: ≥20dB
- Input and output impedance: 50Ω
- Interface: N-F
- Module dimensions: 100 x 45 x 22mm/3.9 x 1.8 x 0.9" (with mounting holes)

Package Included:
- 1 x RF Power Divider

Test Curve for Insertion Loss:

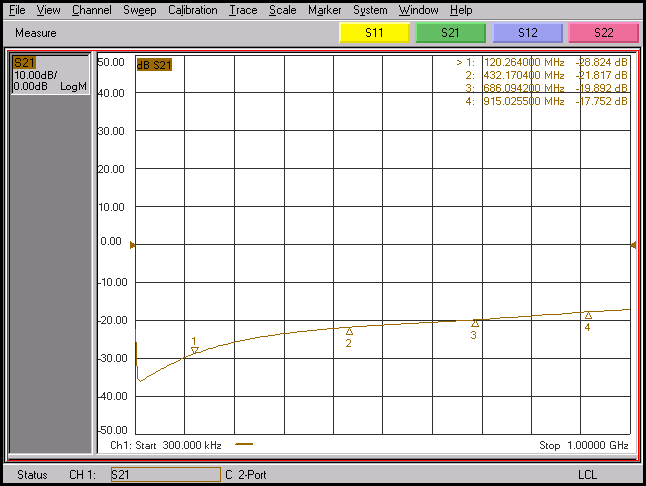

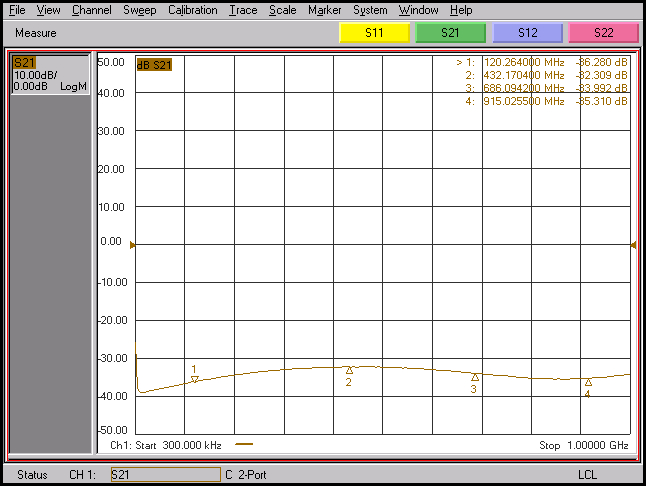

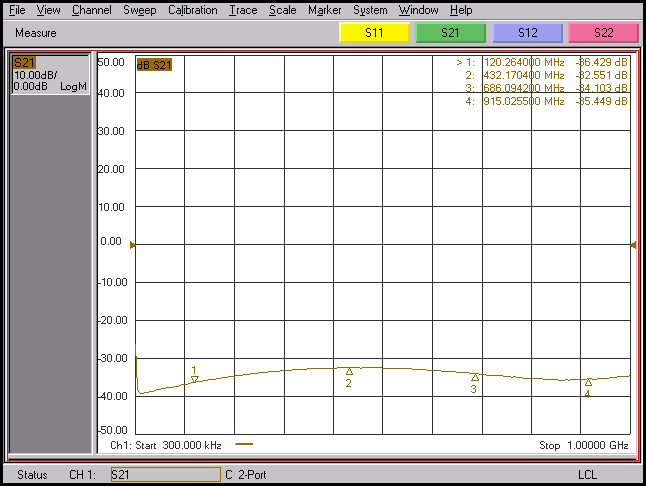

Test Curve for Isolation:
