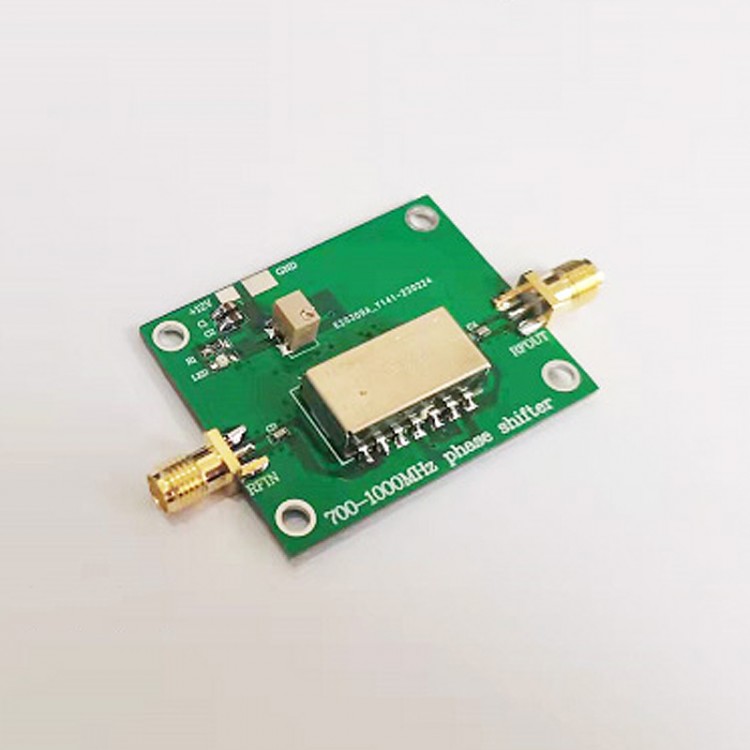

QM-PHA0710A 700-1000MHz Phase Shifter Analog Phase Shifter Module 915M Phase Shift Phased Array

QM-PHA0710A 700-1000MHz Phase Shifter Analog Phase Shifter Module 915M Phase Shift Phased Array

Description:
A phase shifter is a device that controls the phase change of a signal, and can be widely used in radar systems, microwave communication systems, and measurement systems. The operating range of this module is 700-1000MHz. It adopts analog ESC phase shifting technology and built-in adjustable device. Only need to use a fixed voltage to supply power, and through adjustment, the 0-180° output signal phase change in the frequency band can be achieved. At the same time, the module has low insertion loss and broadband phase shifting. With mounting holes, it can be used with equipment.

Module Parameters:
- Model: QM-PHA0710A
- Module function: analog ESC phase shifter
- Power supply: +12V
- Operating frequency of the module: 700-1000MHz
- Phase shift range: 0-180°
- Input and output standing waves: in-band <1.4
- In-band insertion loss: <1.4dB (2.0dB MAX)
- The maximum input power of the module: +20dBm
- Input and output connector: SMA-K
- Module size: 45 x 35mm/1.8 x 1.4" (without the size of connector)
- With mounting holes

Package Included:
- 1 x RF Phase Shifter

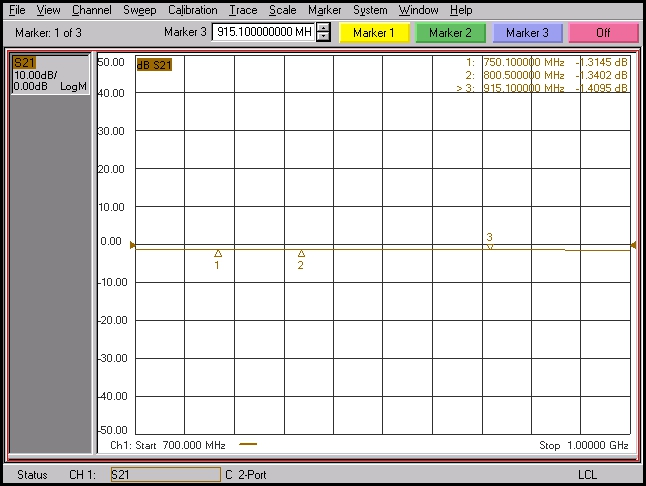

Insertion Loss Test:

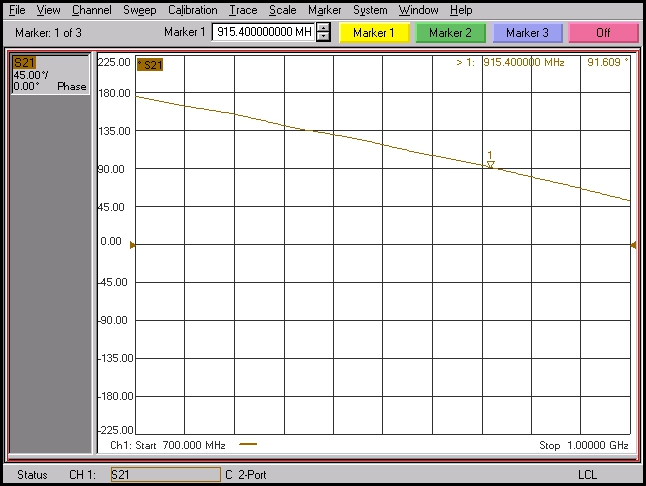

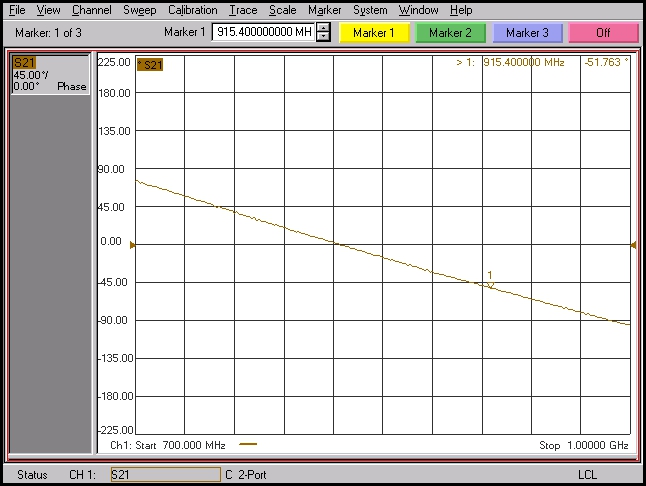

Phase Tests:
VT: 0V


VT: 2V


VT: 4V


VT: 6V


VT: 7V


VT: 9V


VT: 12V
