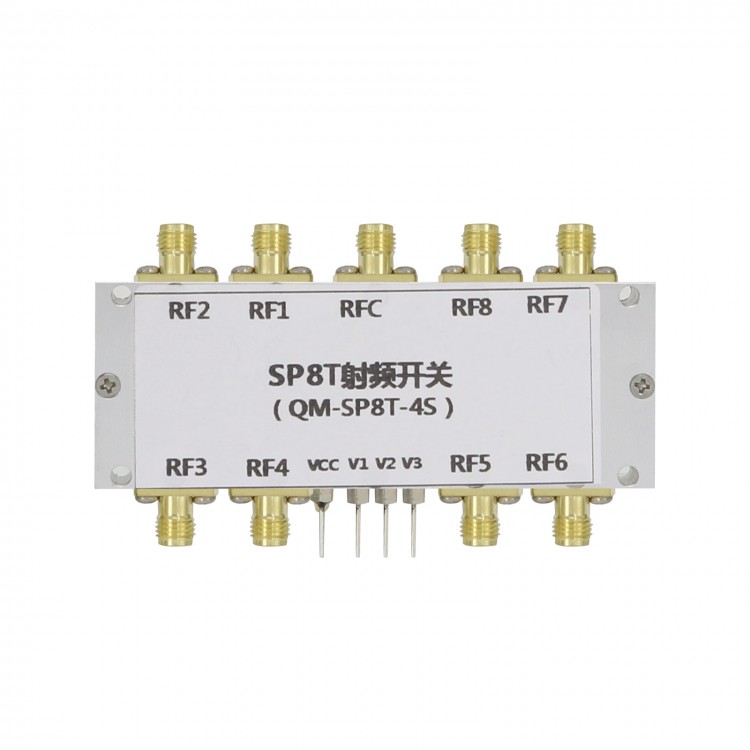

QM-SP8T-4S 10M-4GHz SP8T Switch RF Switch Microwave Switch Featuring Low Insertion Loss
Description:
This module adopts SP8T mode to realize the switching of eight channels of signals. Its operating frequency is 10M-4GHz. It can be used in 433M, GSM, GPS 2.4G and 5G communication systems. Because of its low insertion loss, wide frequency band, and high isolation, it is widely used in communication system equipment. The module is encapsulated in a CNC shell with excellent electromagnetic shielding performance.
Module Parameters:
- Model: QM-SP8T-4S
- Working frequency: 10M-4GHz
- Working mode: SP8T
- Typical insertion loss: ≤2.5dB
- Port isolation: 30dB (min)
- Impedance: 50Ω
- Power supply: +5V
- Maximum input power: +31dBm
- Switching time: 290ns (max)
- Input and output interface: SMA female connector

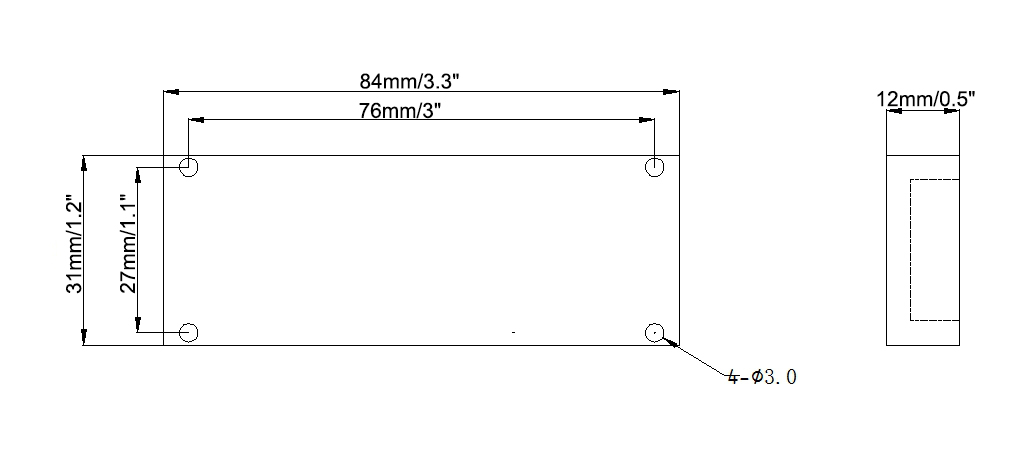

- Module size: 84 x 31 x 12mm/3.3 x 1.2 x 0.5" (without the size of connectors)
- With mounting positioning holes
Way to Control:
V3:0, V2:0 V1:0 RFC output to RF1
V3:1, V2:0 V1:0 RFC output to RF2
V3:0, V2:1 V1:0 RFC output to RF3
V3:1, V2:1 V1:0 RFC output to RF4
V3:0, V2:0 V1:1 RFC output to RF5
V3:1, V2:0 V1:1 RFC output to RF6
V3:0, V2:1 V1:1 RFC output to RF7
V3:1, V2:1 V1:1 RFC output to RF8
Package Included:
- 1 x RF Switch
Insertion Loss Test:

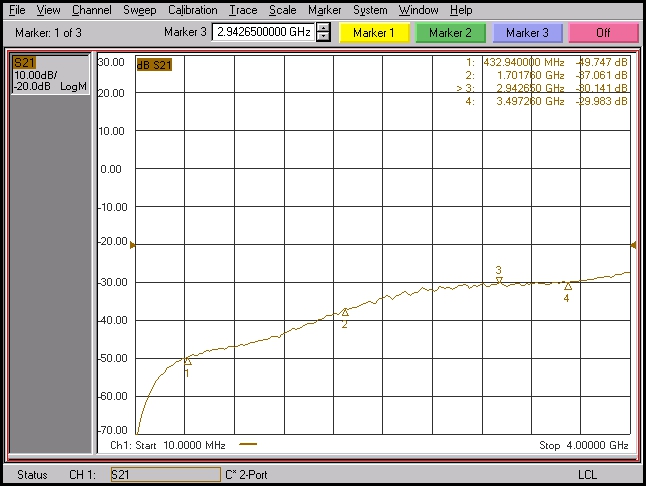

Port Isolation Test:
