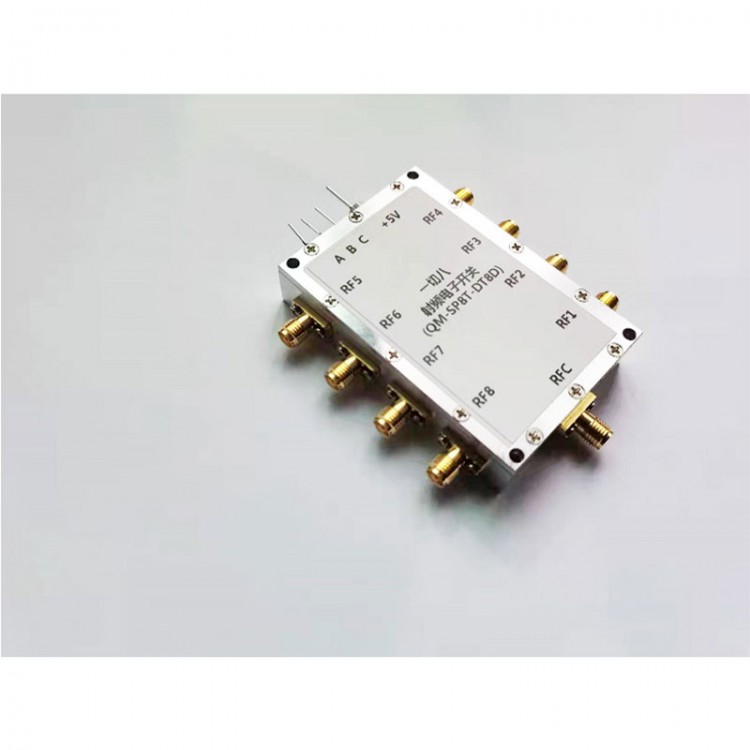

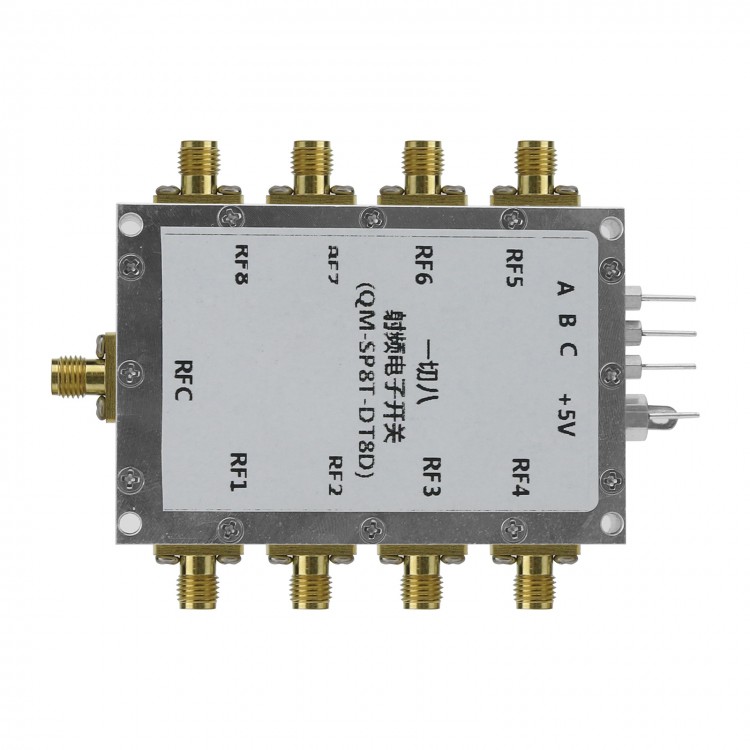

QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module
Description:
Microwave switch, also known as RF switch, realizes the control of microwave signal channel conversion. The module adopts SP8T mode to realize the switching of eight-way signals. It is widely used in communication system equipment thanks to its low insertion loss, wide frequency band and high isolation.
The module is packaged in a CNC shell with excellent electromagnetic shielding performance.
Specifications:
1. Working frequency: DC-8G (recommended for 6GHz and below)
2. Model: QM-SP8T-DT8D
3. Working mode: SP8T
4. Typical insertion loss: ≤3.2dB at 2.4GHz
5. Port isolation: ≥26dB
6. Impedance: 50Ω
7. Power supply: +5V
8. Maximum input power: +26dBm
9. Input and output interface: SMA female
10. Module size: 72 x 48 x 12mm/2.8 x 1.9 x 0.5" (without the sizes of connectors)
11. With mounting holes
Control Mode:
A:0, B:0 C:0 RFC output to RF1;
A:1, B:0 C:0 RFC output to RF2;
A:0, B:1 C:0 RFC output to RF3;
A:1, B:1 C:0 RFC output to RF4;
A:0, B:0 C:1 RFC output to RF5;
A:1, B:0 C:1 RFC output to RF6;
A:0, B:1 C:1 RFC output to RF7;
A:1, B:1 C:1 RFC output to RF8.
Package Included:
- 1 x RF Switch
Packaging Details:
- G.W.: 0.35kg
Insertion Loss Test:
Port Isolation Test Curve:
