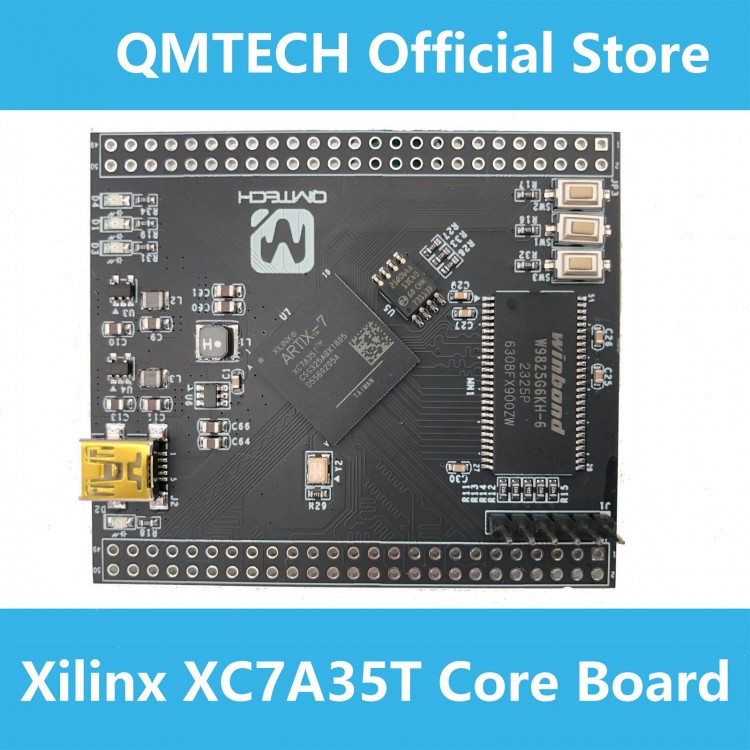

QMTECH XC7A35T SDRAM Core Board 50MHz Onboard FPGA High Performance Development Board for Xilinx Artix-7

QMTECH XC7A35T SDRAM Core Board 50MHz Onboard FPGA High Performance Development Board for Xilinx Artix-7

Specification:
- On-Board FPGA: XC7A35T-1CSG325C
- On-Board FPGA external crystal frequency: 50MHz
- XC7A35T-1CSG325C has rich block RAM resource up to 1,800Kb
- XC7A35T-1CSG325C has 33,280 logic cells
- On-Board N25Q064A SPI Flash, 8M bytes for user configuration code
- On-Board 32MB Winbond SDRAM, W9825G6KH-6
- On-Board power supply for FPGA core by using TPS563201 wide input range DC/DC
- XC7A35T core board has two 50p, 2.54mm pitch headers for extending user IOs. Not compatible with QMTECH_DB_FPGA board
- XC7A35T core board has 3 user switches
- XC7A35T core board has 4 user LEDs
- XC7A35T core board has JTAG interface, by using 6p, 2.54mm pitch header
- XC7A35T core board PCB size is: 66.2mm x 57.0mm
- Default power source for board is from Mini USB port: 1A at 5V DC
- User manual, schematic, test program via Github: https://github.com/ChinaQMTECH/QMTECH_XC7A15T_35T_CSG325_CORE_BOARD

Package Included:
- 1 x Core Board
- 1 x Mini USB Cable
