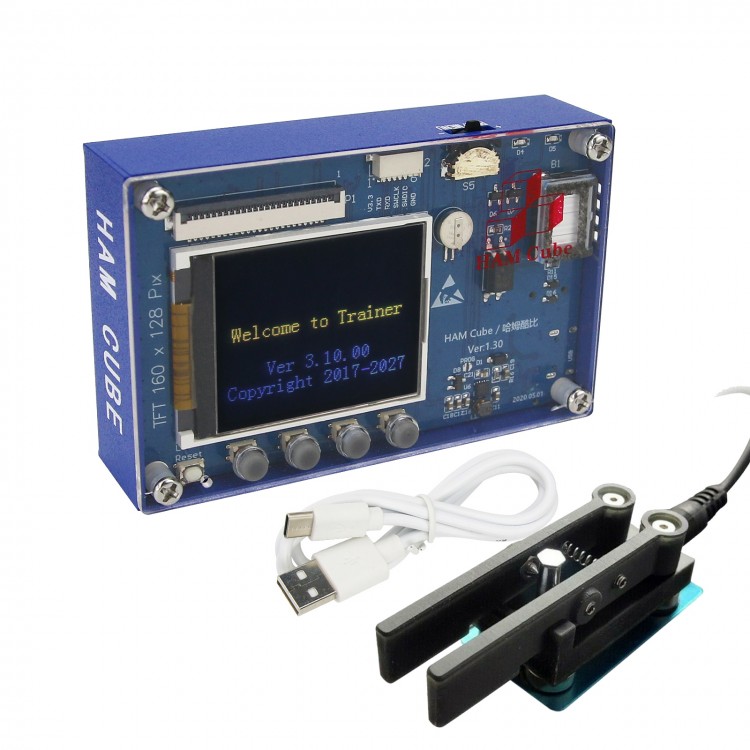

QU-7025 Morse Key Automatic Dual Paddle Key Magnetic Base + HAM Main Controller V1.30 1.8" Display

QU-7025 Morse Key Automatic Dual Paddle Key Magnetic Base + HAM Main Controller V1.30 1.8" Display

QU-7025 Morse Key:
Features:
- Portable dual-paddle telegraph key
- Base magnetic adsorption type
- CW morse code key
- CW key for DIY uses

HAM Main Controller:
Description:
The HAM CUBE multi-function controller is an ARM-based embedded HAM product. The main purpose is to build an open architecture that can be used to achieve some HAM daily commonly used functions. It can also complete certain core functions when used alone.

The firmware of "HAM CUBE Multifunctional Controller" that can be used independently is CW trainer firmware (hereinafter referred to as CW trainer). The firmware has the most basic functions of CW listening, transcription, and reporting exercises, which can effectively help CW beginners learn and improve CW's ability to send and receive reports. At the same time, it also has the function of controlling the radio to send CW through the external interface; it has the function of adaptive speed real-time decoding by the opponent key and automatic key code. In the future, the radio interface expansion board will have the ability to adaptively demodulate external CW signals.

The core of the CW trainer is a 32-bit ARM-STM32F103CBT6. The chip has 128k of FLASH space and 20k of RAM space, and the working frequency is 72M. A 1.8-inch 160*128 resolution is installed on the front of the main control board. 16-bit true color TFT-LCD liquid crystal display, as the display device of the main controller. The board is designed with 4 touch buttons, a three-way toggle switch, a system hardware reset button and a power supply repair pad jumper; There are 2 user-programmable LED indicators (D2, D3); the external function interface with up to 24 pins leads out as many MCU pins as possible for external use and function expansion; the reset button is located on the lower left of the front of the device Angle, the main control board can be reset by hardware by pressing the fine needle; the 6P programming interface can be used to connect professional embedded development equipment, and carry out secondary development and programming of the internal MCU.

Features:
As a master:
1. The appearance is small and exquisite, real palm-sized device
2. Integrated 1.8-inch true color TFT LCD screen and user function buttons
3. Abundant on-board resources and external interfaces
4. Function expansion board can be added flexibly to realize other functions
5. Various system functions can be realized by writing different system support firmware

After Entering CW Trainer System Supported Firmware:
1. It can realize self-practice function that runs through all aspects of CW training
2. Abundant transcription training modes with letters, numbers, mixes, call signs, phrases, and custom characters
3. It can be used as a CW key controller, controlling an external shortwave radio station to transmit CW signals
4. With 4pcs custom shortcut keys, you can easily program CW common communication phrases
5. Used with CW decoding expansion board, it can decode external CW audio signal in real time, and the main controller screen displays

CW Trainer Parameters:
- Main control ARM: STM32F103CBT6 (RIM: 128k RAM: 20k main frequency: 72M)
- Screen size: 1.8 inches
- Display resolution: 160 x 128 pix
- Color depth: RGB true color 16-bit 65535 colors
- Onboard flash memory capacity: 4M
- Onboard RTC: built-in temperature compensated crystal oscillator RTC real-time clock
- User touch buttons: 4
- Three-way toggle switch: 1
- User-defined LED: 2
- Electric key interface: 3.5mm stereo socket, can take over the key or automatic key
- External headphone jack: 3.5mm stereo jack, which can be connected to external headphones and speakers
- CW external control interface: 3.5mm stereo socket, which can control external radio CW
- Onboard speaker: 8.5*8.5mm SMT buzzer
- External expansion interface: 24P 1.0mm FPC socket
- Programming interface: 6P 1.0mm SH socket
- Reset button on the board: 1
- Boot pad on board: 1
- RTC backup battery: micro button rechargeable lithium battery
- Battery type: ultra-thin 900mah polymer battery (with discharge protection)
- Endurance time: after the new battery is fully charged, no less than 10 hours of standby time

Functions:
1. Manual and automatic code sending practice (CW code listening and transcription practice, CW code sending practice, CW sending game, CW follow-up exercises, CW memory exercises)
2. Code speed 10-50 continuously adjustable
3. Tone, dot and stroke switching, PTT delay adjustable
4. The color of the screen interface is customizable and adjustable
5. CW adaptive speed decoding
6. Automatically randomly generate call signs, letters, numbers, mixed messages or custom characters to send codes for listening and transcription exercises
7. Automatically randomly generate call signs, letters, numbers or mixed messages for manual and automatic buttons practice
8. Automatic follow-up exercise function, machine code sending, users follow the code sending exercise
9. Code elimination character game, exercise CW code sending response ability
10. Date and time adjustment
11. Four custom buttons, each of which can customize 60 characters, can realize one-button sending of custom messages, and can be connected to radio stations for daily communication and other functions.

Attention:
- This machine comes with a 900mAh polymer battery, which can be charged with a universal mobile phone charger. The actual standby time after fully charged is not less than 10 hours.
- Users do not need to learn programming and burning, they can upgrade the latest version of the firmware through the USB cable, and realize multiple applications of HAM. It can also be used as an embedded ARM learning board to learn embedded microcontroller technology.

Package Included:
- 1 x Set of Morse Key + HAM Controller
