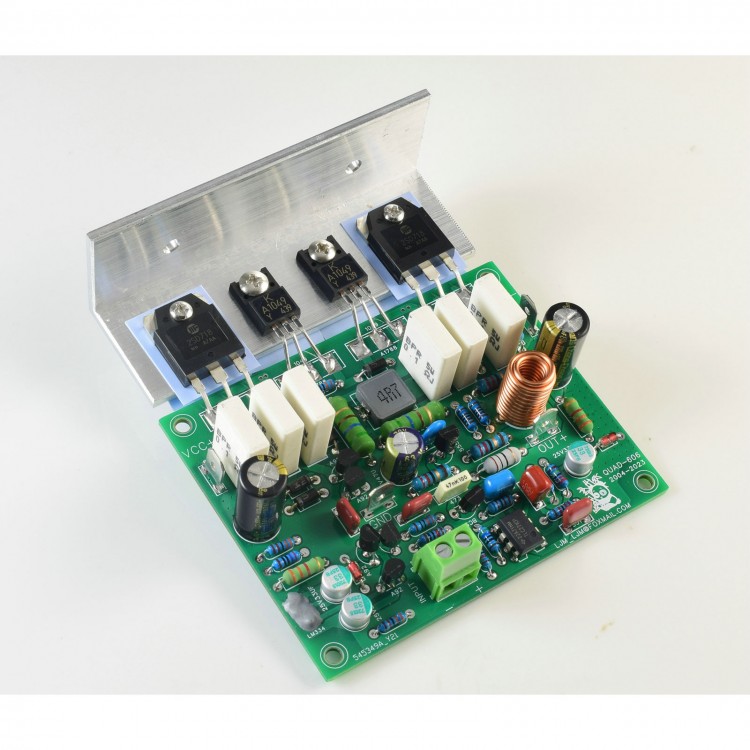

QUAD-606 QUAD606 2 Channel Amplifier Board Finished Power Amp Board w/ Output Power 125W 8R 250W 4R
Description:
It is an imitation of the classic power amplifier for QUAD 606. It is an upgraded version of QUAD405. It comes with transistors and angle aluminum.
Specifications:
- Supply voltage range: DC ± (25V~55V). The recommended voltage is DC ±45V
- Output power: 125W 8R and 250W 4R
- Frequency response: APSYS 2 test data: 20HZ -0DB, 10HZ -0.3DB, 10K HZ -0.1DB, 20KHZ -0.3DB
- THD+N: < 0.01%
- Size of PCB + angle aluminum: 90 x 100mm/3.5 x 3.9"
- Weight of a board and a angle aluminum for one channel: 160g/0.4lb
- Magnification (gain): 51.5 times
- Output stage quiescent current: 0MA
- Mono quiescent current: About 100MA
- Recommended heat sink per channel: >500g/1.1lb (voltage± 45V)
- Original operational amplifier: TLC271 high-performance op amp
- Output transistors: 6pcs original 2SD718 power transistors (140V, 10A, 100W) per channel
Package Included:
- 2 x Amplifier Boards
Packaging Details:
- G.W.: 0.4kg
Oscilloscope Test Data:
APSYS 2 Test Data:
Frequency response: 20HZ -0DB, 10HZ -0.3DB, 10K HZ -0.1DB, 20KHZ -0.3DB
THD+N: < 0.01%
