Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $78.26 | $76.67 | $74.27 | $71.08 | Contact US |

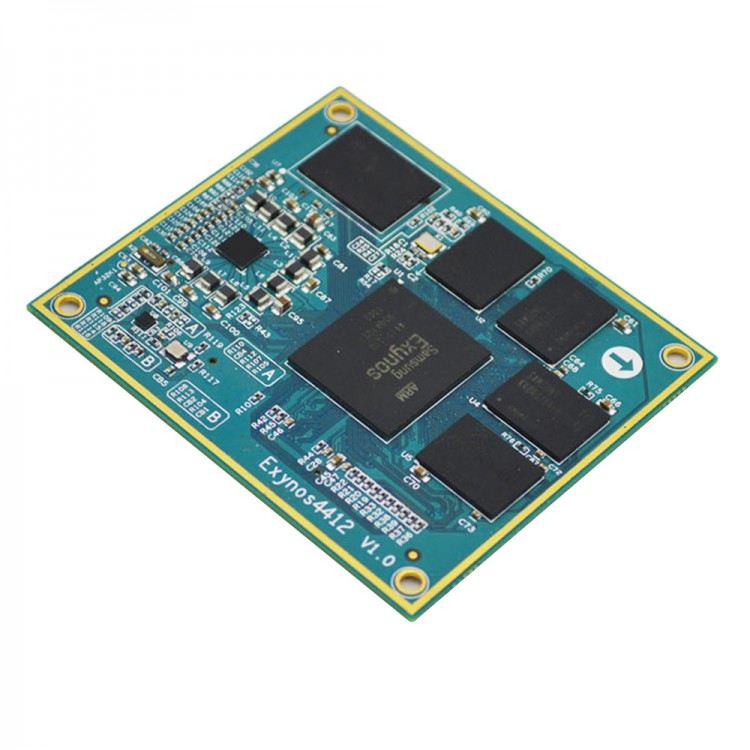

Quad-Core Exynos CortexA9 Development Board iTOP SCP - 4412 Core Board 1Gb+4Gb
Specification:
- Size 60mm*70mm
- Height: 0.26cm
- CPU: Exynos4412,quad core Cortex-A9, main frequency 1.4GHz-1.6GHz
- Ram 1GB dual channel DDR3
- Storage EMMC 4GB
- Power management: Low power dynamic Samsung S5M8767 power management,
- Working voltage: 2.65V--5.5V (recommended 4.0V)
- System support: Linux-QT/Android4.2/Ubuntu operating system
- USB HOST: Onboard USB3503, leads to high performance HSIC, to achieve the 2 way HOST USB output

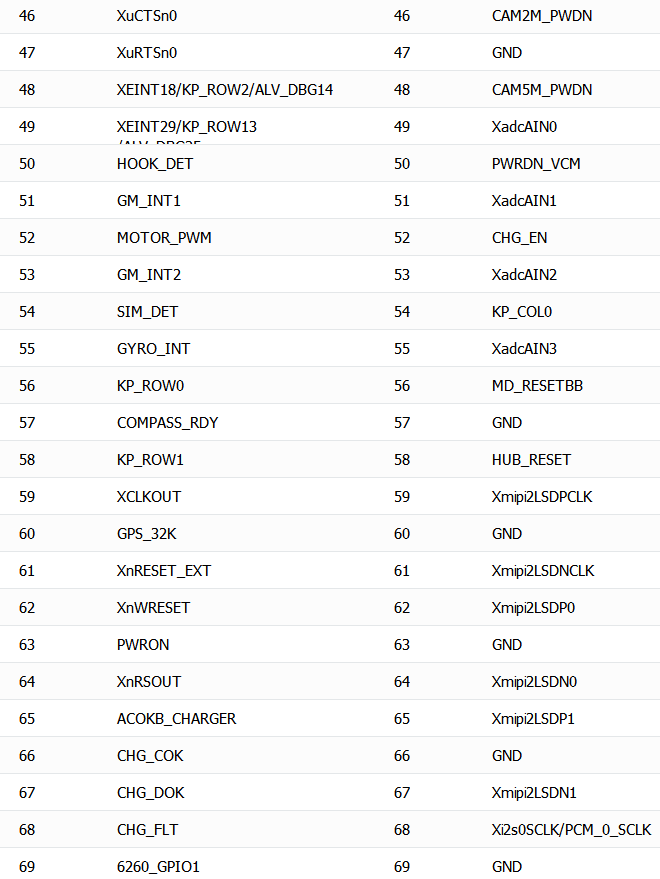

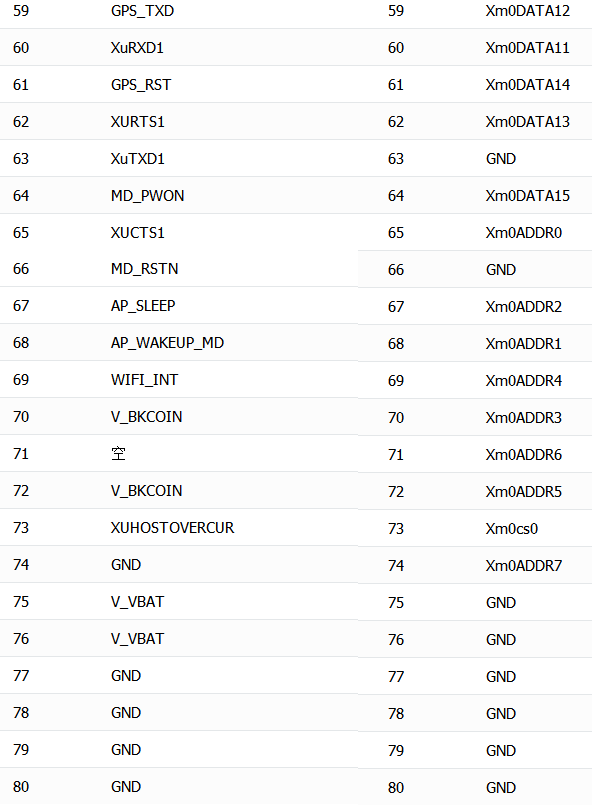

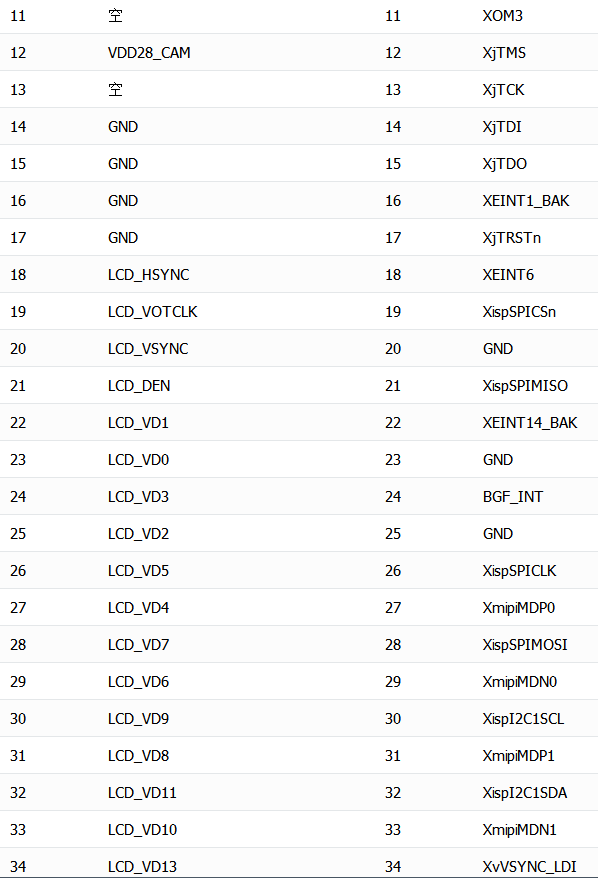

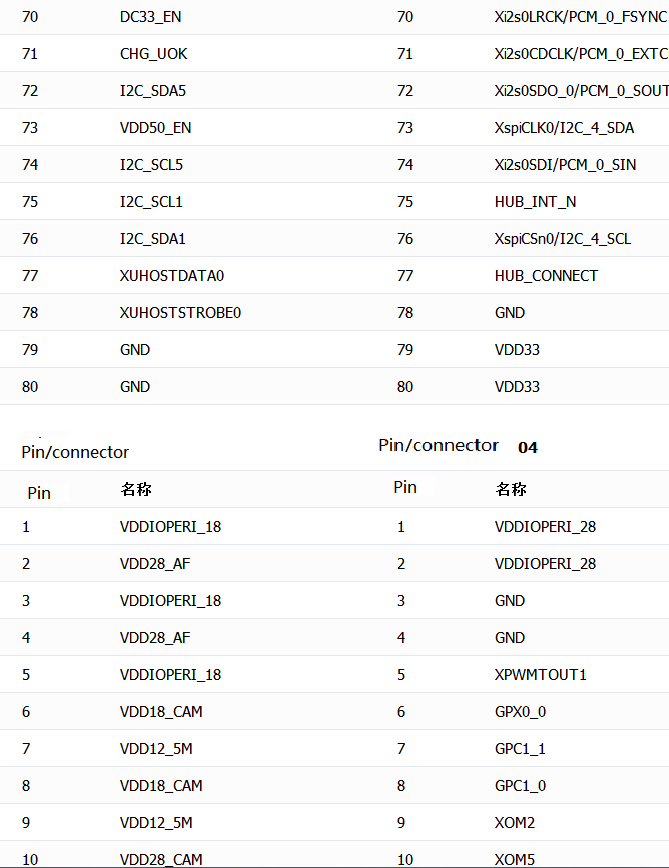

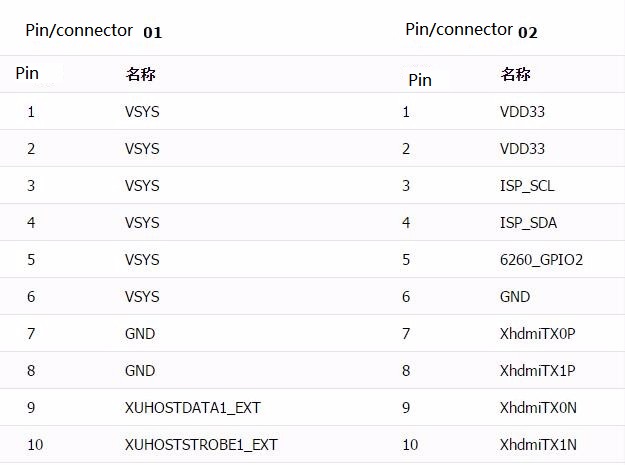

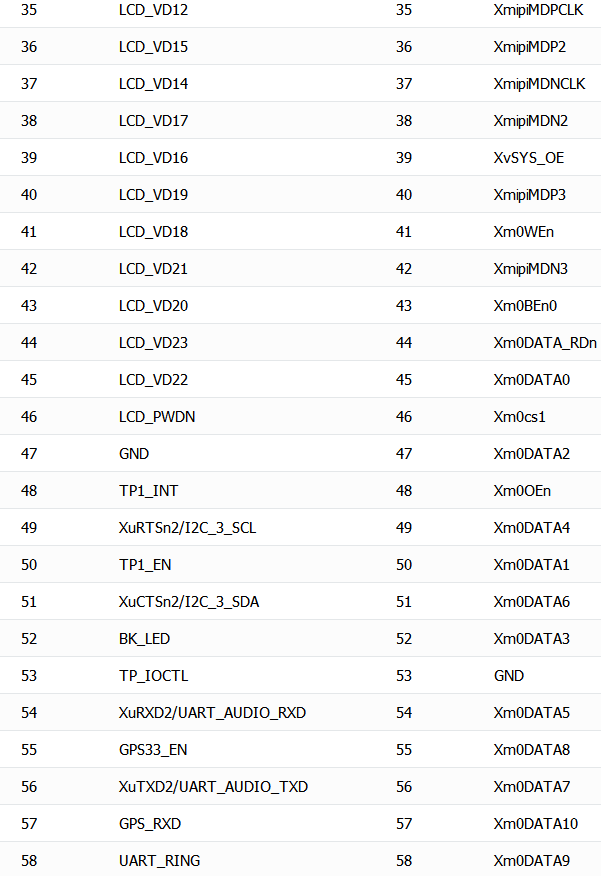

- Pin Extension: up to 320,
- Operating temperature: -25~ +80 degree C
Package List:
- 1 x Development Board
