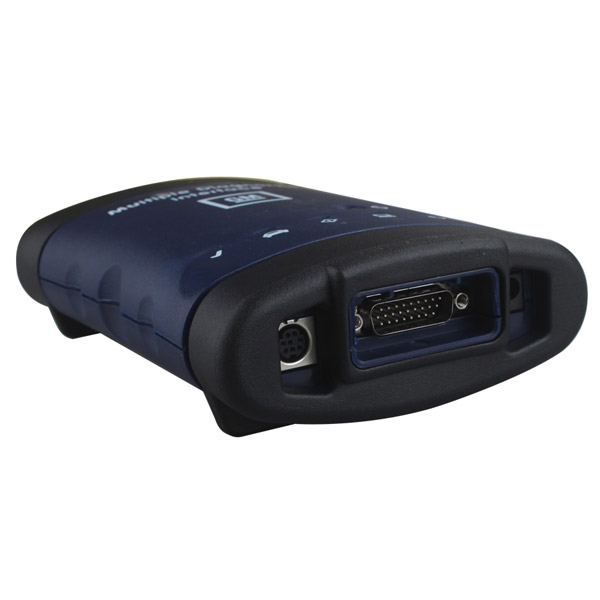

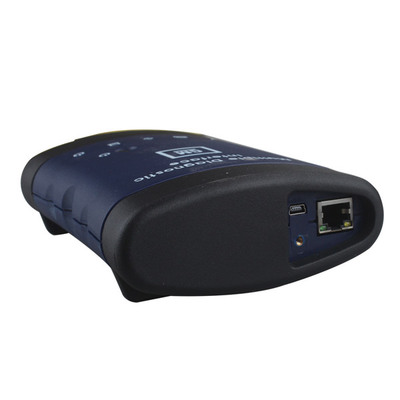

Quality VCX GM MDI Multiple Diagnostic Interface with USB Connection and MDI Scan Tool Auto Diagnostic Scanner MDI for GM

Quality VCX GM MDI Multiple Diagnostic Interface with USB Connection and MDI Scan Tool Auto Diagnostic Scanner MDI for GM

Software Version:
- TECH2 Software version:V2.302
- GDS2 Software version :V14.10

For GM MDI Feature:
- With for opel Global tis global diagnostic system
- Support offline lease function
- Support for Opel offline programming function
- With GDS2 diagnostic system
- Tech2win diagnostic software support adding latest software
- Support programming online(customer need has online account)
- Support cable communication
- Support original factory latest software
- With European Chevetl Global tis, Supports European Chevetl offline programming
- All Chip are new and original

MDI and GDS Background:
- MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
- Can be Used for SPS programming on existing and future SGM vehicles
- Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
- Used with TIS2Web, for GM Global Diagnostics System (GDS), SPS and MDI Manager Software
- Allows for GDS diagnostic
- For GM Multiple Diagnostic Interface (MDI)
- All current and most legacy vehicle protocols: UART, KW2000, CLASS2, for GM LAN, etc.
- Needed for Global A architechture vehicles
- Supports Service Programming System (SPS)
- Passthrough progrmming on past model and Global A vehicles
- Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
- Includes Flight Recorder Mode

New Diagnostic Application Software Required for Global A Vehicles:
- Global Diagnostic System (GDS)
- PC-based software diagnsotics
- DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
- GDS is software which runs on a specific PC. Updates received via TIS2Web.
- Multiple display options. More space for diagnsotics. Session management for multiple us.

The Future of the Tech 2:
- The Tech 2 remains an essential tool through at least the 2010 model year. For GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years.
- Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

HOW WILL For GM MDI BE USED:
- The new for GM MDI can be used only in the Pass-Thru method. This means you can use it as your programming tool, while your Tech 2/CANdi remains available for diagnostics and other duties.
- For GM MDI is initially being introduced with Pass-Thru programming capabilities only. It can be used to perform Pass-Thru programming on all vehicles built since 1996 and will support all vehicles into the future.
- For GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for GM MDI during the fourth quarter of 2008.
- Regulations require programming procedures to be compliant with SAE Recommended Practice J2534. The for GM SPS is compliant with SAE Recommended Practice J2534, and for GM MDI is compliant with the portions of SAE J2534 that are applicable for GM vehicles.

What Protocols Does for GM MDI Support:
- For immediate use - At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). For GM MDI communicates using all of the existing for GM protocols, the same as the Tech 2: UART
Class 2; KWP2000; GMLAN (CAN)
- Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicles)

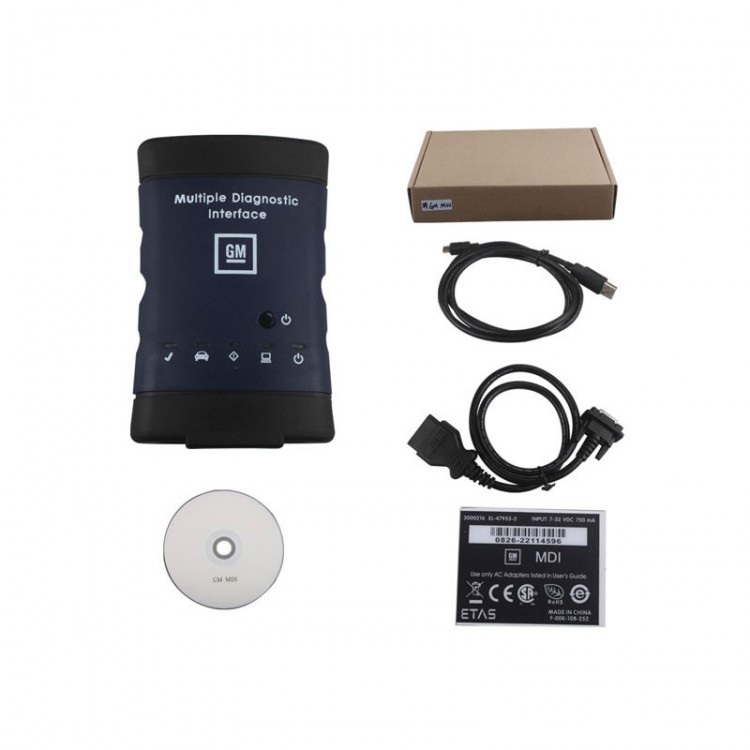

Package List:
- 1   x   Quality VCX for GM MDI Multiple Diagnostic Interface
- 2   x   USB Connection wires
