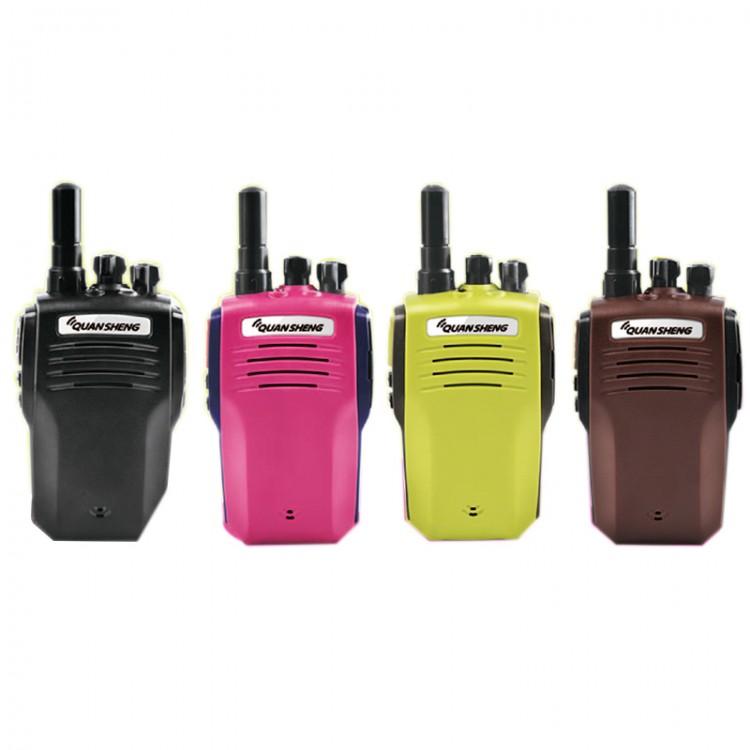

• QUANSHENG TG-K100 Portable Walkie Talkie UHF 400-480MHz 5W 16CH Jacklight Scan DTMF Two Antennas

QUANSHENG TG-K100 Portable Walkie Talkie UHF 400-480MHz 5W 16CH Jacklight Scan DTMF Two Antennas

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.51
  • Price in reward points: 615 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.28 $59.05 $57.20 $54.74 Contact US
Quantity:

QUANSHENG TG-K100 Portable Walkie Talkie UHF 400-480MHz 5W 16CH Jacklight Scan DTMF Two Antennas

Feature:

- Jacklight
- Color is beautiful Small fashion
- DTMF 1750Hz call tone

Package Included:
- 1 x Set of Walkie Talkie

All of our item are brand News

Model

TG-K100

Frequency Range

UHF: 400-480MH

Channel capacity

16 Channel

Output power

5 W

Operating Voltage

3.6V

Antenna Impedance

50 ohm

Working Temperature

-25°C—+65°C

Frequency Spacing

12.5/25kHz

Battery capacity

1500mAh

Color

Black

Dimension(Exclude antenna)

Approx:101x58x30mm

Weight(Include Battery)

149g

Feature

CTCSS/DCS

50 CTCSS/208 DCS

Jacklight

Yes

Channel scan

Yes

Time-out-timer(TOT)

Yes

Low power alarm

Yes

Wide/Narrow bandwidth

Yes

Squelch level adjustable

Yes

H/L output power selective

Yes

Voice prompt(Chinese or English)

Yes

Dual-watch operation

Yes

PTT-ID function

Yes

DTMF-function

Yes

1750Hz call tone

Yes

Tail tone elimination

Yes

PC programmable

Yes

Specification

Modulation W/N

16k¢F3E/11k¢F3E

Maximum Frequency Deviation W/N

<= 5kHz/<=2.5kHz

Stray Power

<=7.5µW

Adjacent Channel Power

<=-65dB/<=-60dB

CTCSS/DCS Frequency Deviation W/N

0.7±0.1kHz/0.4±0.1kHz

Modulation Sensitivity

8-12mV

Emission Current

<=1.3A

Receiver

Sensitivity

<=0.25/0.28µV

Audio Power

<=0.5W

Audio Distortion

<10%

Inter modulation W/N

>=60dB/>=55dB

Adjacent Channel selectivity

>=65dB/>=65dB

Spurious Rejection

>=65dB

Receiving Current

<=380mA
