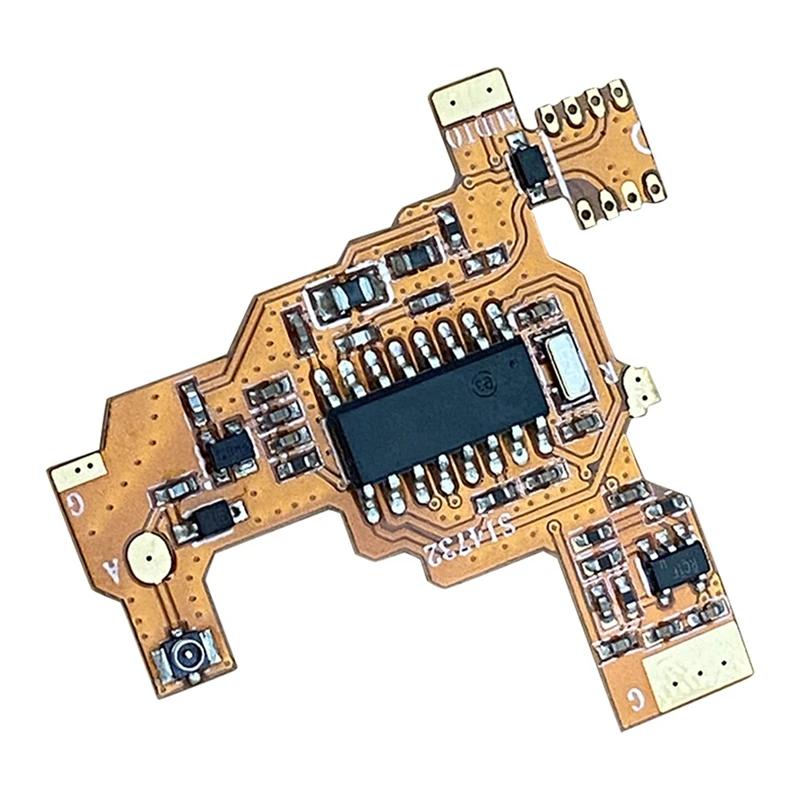

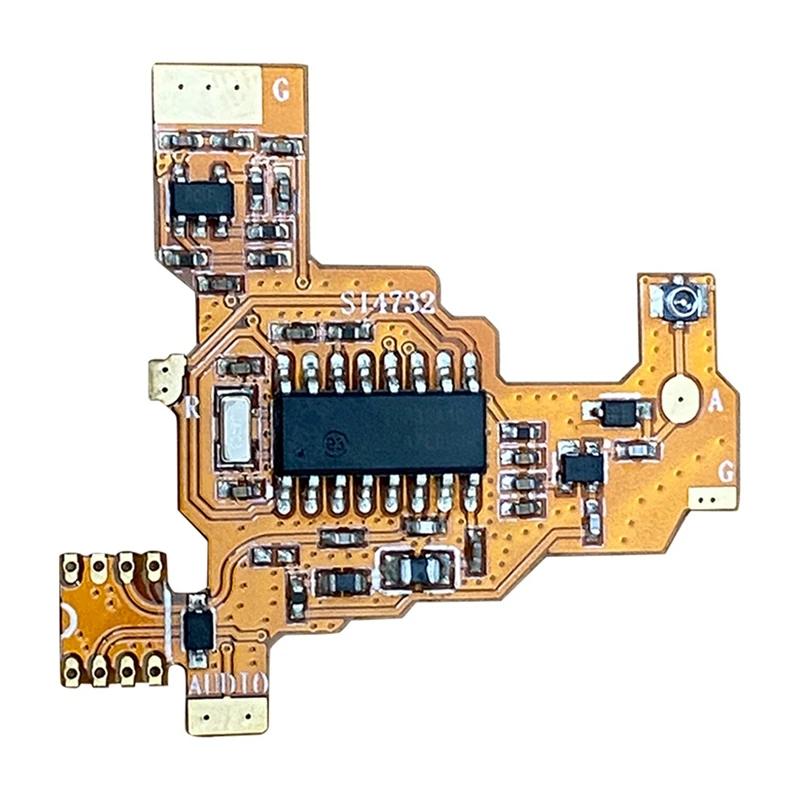

Quansheng UVK5/UVK6 Full-SI4732 Chip and Crystal Oscillator Modification Module FPC HF Shortwave Full-band/SSB Receiving

Quansheng UVK5/UVK6 Full-SI4732 Chip and Crystal Oscillator Modification Module FPC HF Shortwave Full-band/SSB Receiving

Features:
- Add an RF amplifier to improve AM reception performance.
- Add an audio amplifier to solve the problem of extremely low volume of SSB single sideband, and the effect is obvious.
- Redesign FM and HF bandpass filters.
- An ESD tube is added to the input terminal for electrostatic protection and strong signal protection when transmitting in the UV section of dual antennas.
- Use FPC soft board, the board thickness is 0.2mm, safe and reliable without short circuit, and the installation does not support the speaker.

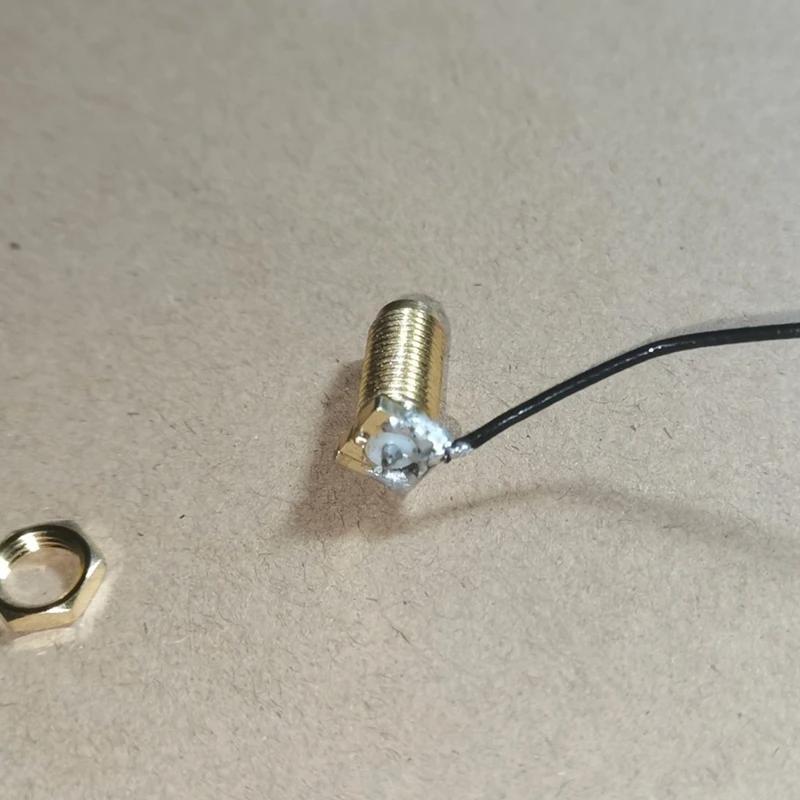

- In the dual-antenna solution, an additional level of band-pass filtering is added to the antenna input end, and a feeder and SMA head are used to an HF independent antenna from the LED, which does not affect the UV performance of the machine.
- The FPC soft board uses a double-sided disk, which is easier to connect to the machine.
- Applicable models: for Quansheng UV-K5/UV-K6
- It is suitable for Quansheng UV-K5/UV-K6 to install SI14732 soft board FPC and modify HF shortwave full-band reception/single sideband reception. It is suitable for single antenna and dual antenna.
- Different batches may have different appearances, but will not affect the use.

Specification:
- Colour: orange
- Material: PCB + electronic components

Package Included:

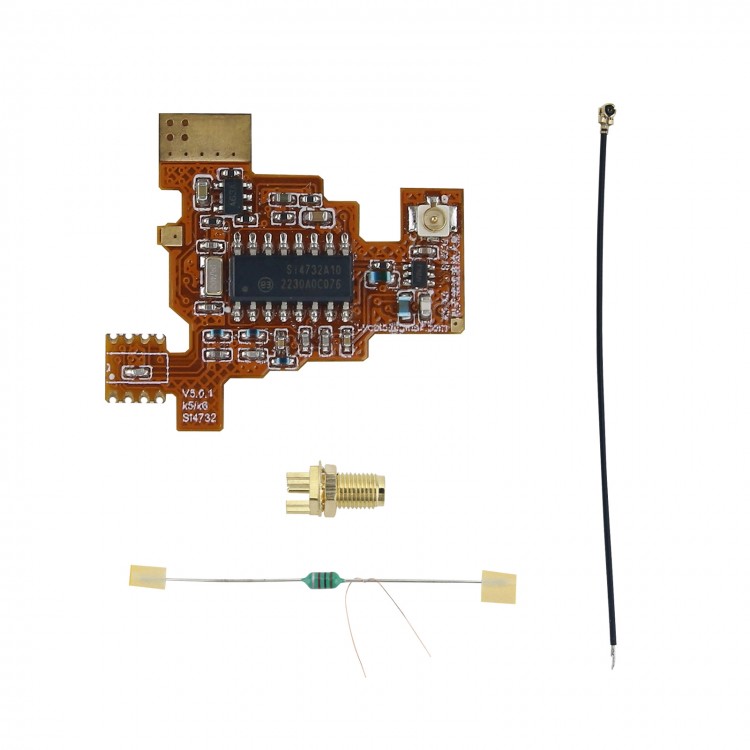

- 1 x Walkie-Talkie Modification Board

Note:
- It is welded and ready to use.
- Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

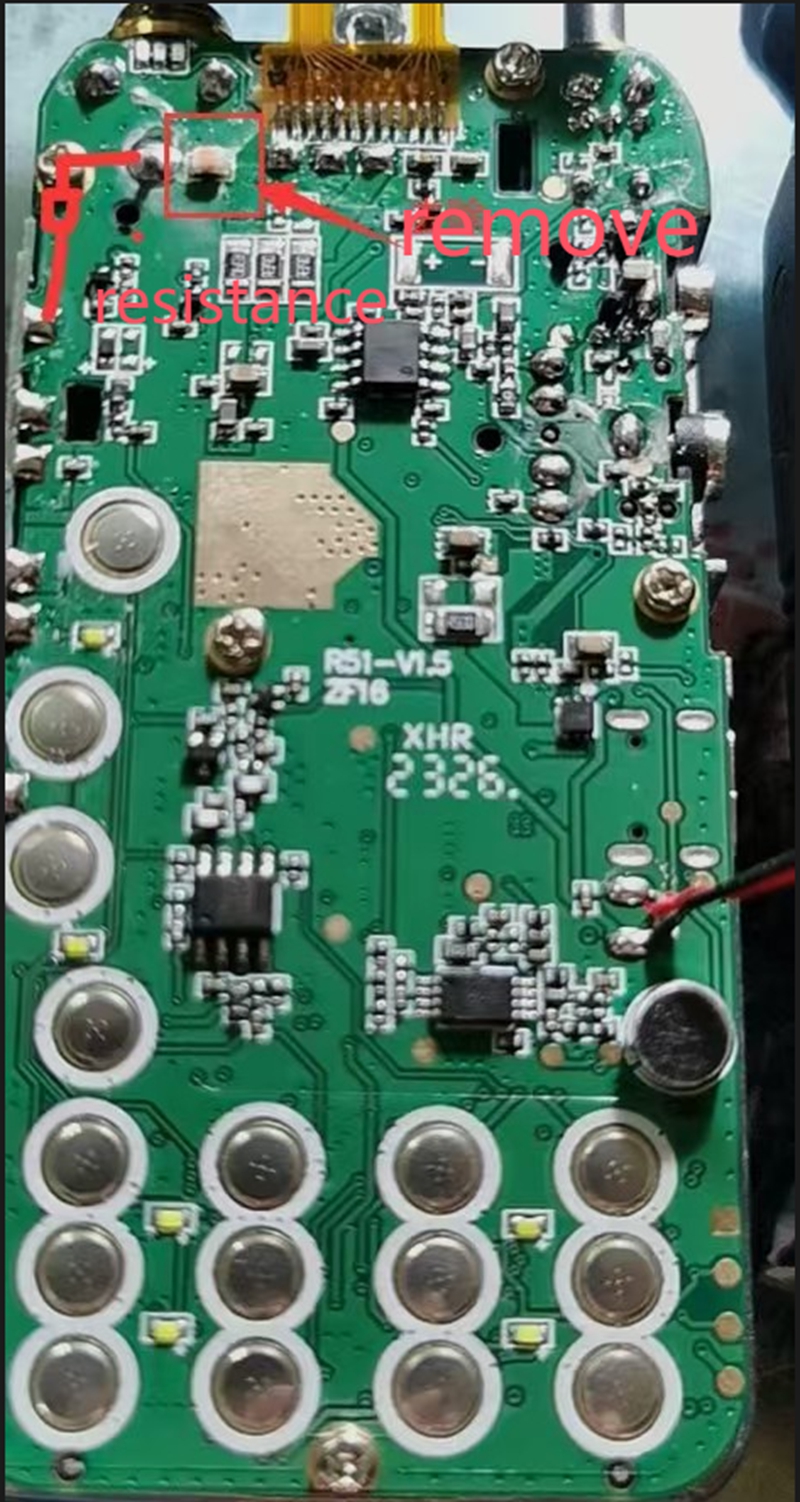

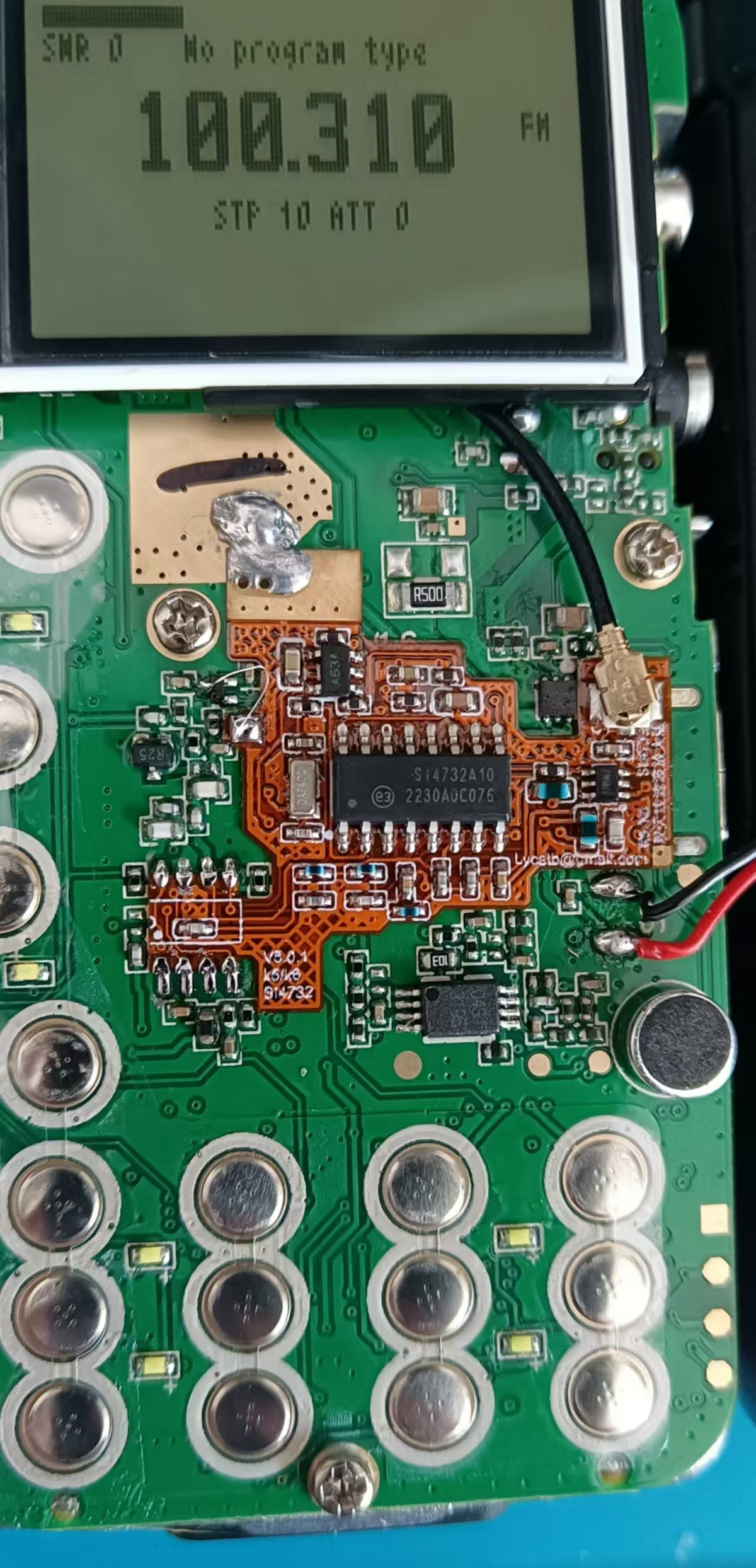

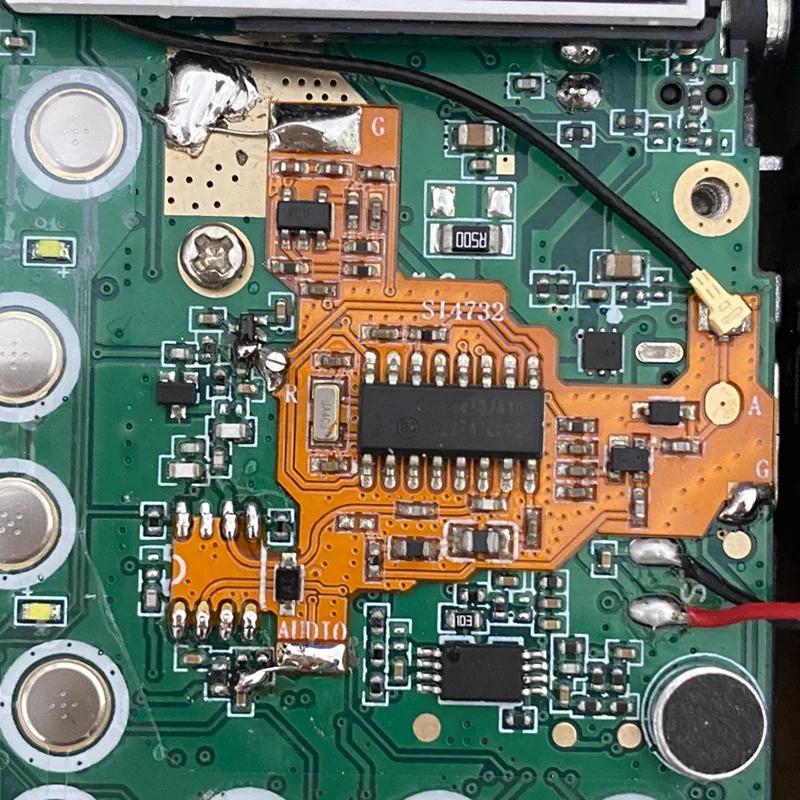

- The installation position is shown as picture, and the flying wire position is on the left side of the transistor.
