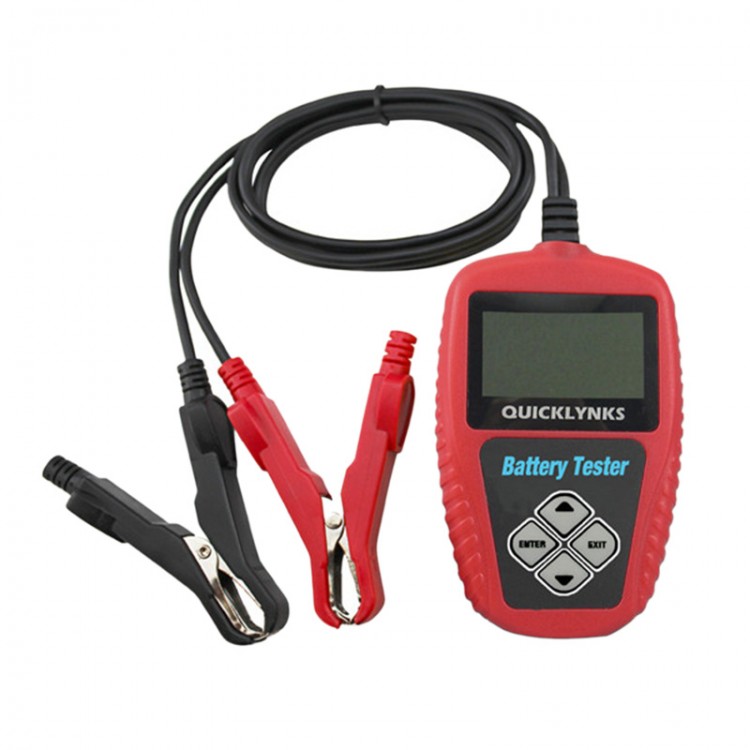

QUICKLYNKS Ba102 12V Motorcycle Battery Analyzer Battery System Tester

QUICKLYNKS Ba102 12V Motorcycle Battery Analyzer Battery System Tester

Description:
This Battery Analyzer is designed to test the condition of the motorcycle battery using conductance method. Unlike the conventional method of draining the battery by applying resistance load to it and obtain the result from the meter gauge; this analyzer utilizes a series of pulsed voltage across the battery cells and observes the AC current that flows in response to it.

The benefits of this test method are:
- Conductance correlates directly to the battery capacity
- Passive testing method is safe.
- Never discharges or drain the battery.
- Able to test condition of discharged battery.
- Consistent and repeatable results.
- Provides unique indication of battery conditions.

Features:
- Simple and easy to use
- Test batteries on and off the vehicle
- Accurate results in milliseconds
- Battery Life Analysis
- Analysis Result : Good or Replace
- Large easy to read LCD display.
- Test results based on JIS, EN, DIN, SAE and IEC Standards.

Functionality:
- Test Result: Good or Replace
- Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
- Internal resistance value
- Life in percentage (%)

Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

Operating Parameters:
- System voltage: 12 Volts
- Input voltage range: 9V~15V
- Testing range: 20-300CCA

Package included:
- 1* Ba102 motorcycle battery analyzer
