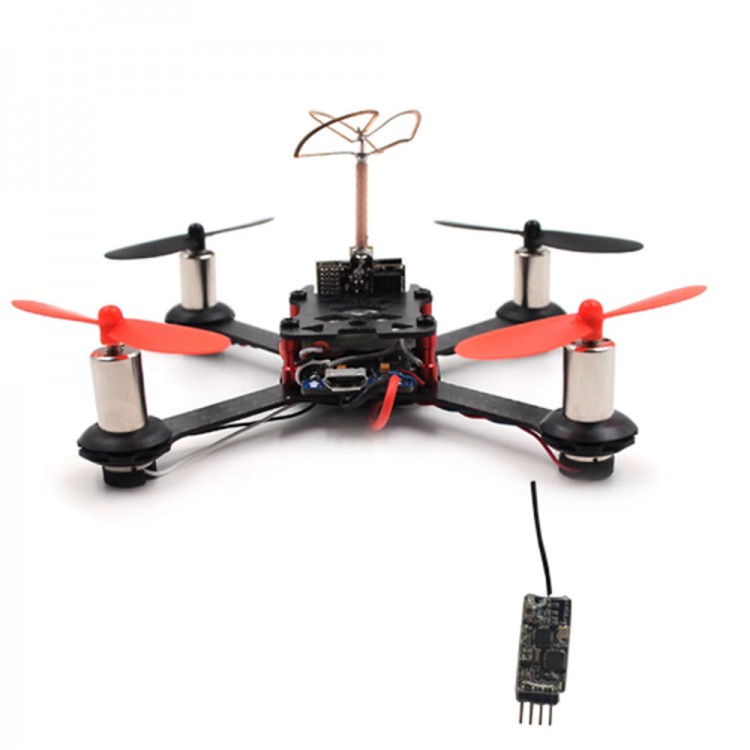

QX110 110mm FPV Racing Drone 4 Axis Quadcopter Carbon Fiber with F3 Flight Controller Camera Frsky Receiver

QX110 110mm FPV Racing Drone 4 Axis Quadcopter Carbon Fiber with F3 Flight Controller Camera Frsky Receiver
TIPS: Please choose express delivery because the product includes battery.

Description:
- Wheelbase: 110mm
- Flight time: 5-10 minutes
- Camera: Camera integrated 5.8G 25mW 40CH 800TVL transmitter
- Material:Carbon Fiber
- Batterry: 3.7V 600mah 25C
- Propeller: 55mmPropeller
- Motor: 8520 MOTOR
- Flight controller: F3 EVO Brush flight controller V2.0
- Compatible with: WFLY Receiver,Frsky Receiver ,FS Receiver,DSM Receiver,RadioLink R6DSM Receiver
- No include receiver

Motor:
- Size: 8.5*20mm
- Rated voltage: 3.7V
- Rated power: 3W
- Rated current: 0.12A
- Rated speed: 50000rpm
- Shaft length: 4mm
- Rated torque: 30nm
- Shaft diameter: 1mm
- Efficiency: 95%

Transmitter Camera:
- Sensor: 1/3" CMOS
- Resolution: M8 800TVL camera
- FOV: 148 deree horizontal, 170 degree vertical
- Format: NTSC/PAL
- Power consumption: 380mA@3.7V
- Power: 3.6-5.5V
- Transmitter :
- Support NTSC/PAL
- Output impedance: 75Ohm
- Output signal strength: 12-14dB
- Output power: 25mW
- Wireless channel: 40CH
- Working voltage: 2.7-5.5V
- Current: 370mA@3.7V

Flight controller:
- Brush flight controller, 32bit
- Support 1S(4.2V) and 2S(8.4V)
- STM32F303CCT6-MPU6500
- With MOS tube
- Support PPM,SBUS,DSM receiver signal input


Product List:
- 1 x QX110 quadcopter Frame
- 1 x Frsky Receiver
- 4 x Coreless Motor
- 2 x Propeller
- 1 x Figure transmission camera
- 1 x F3 Flight controller
- 1 x 500mAH Battery
- 1 x Charger
- 1 x Straps
- 1 x Velcro
- 1 x Receiver line
- 1 x Rubber band
