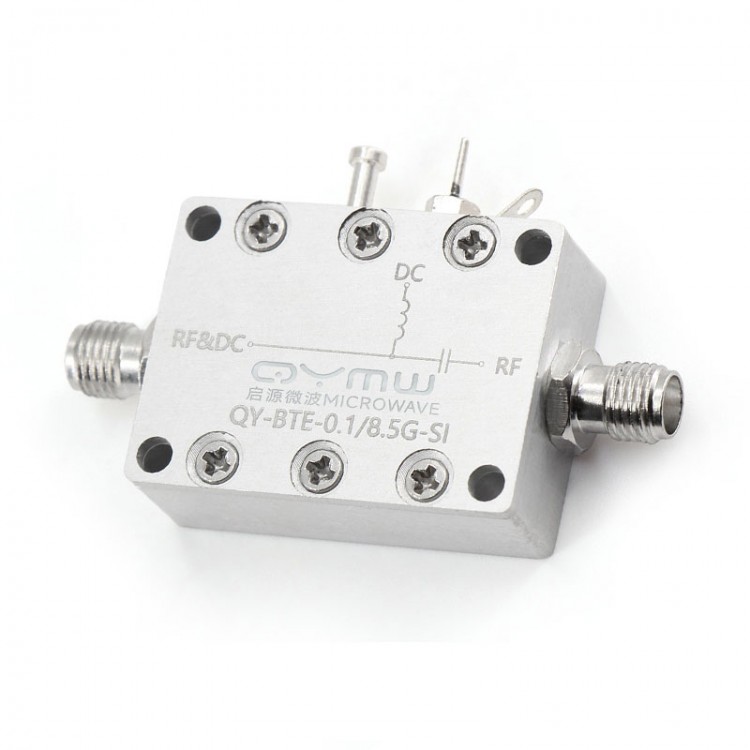

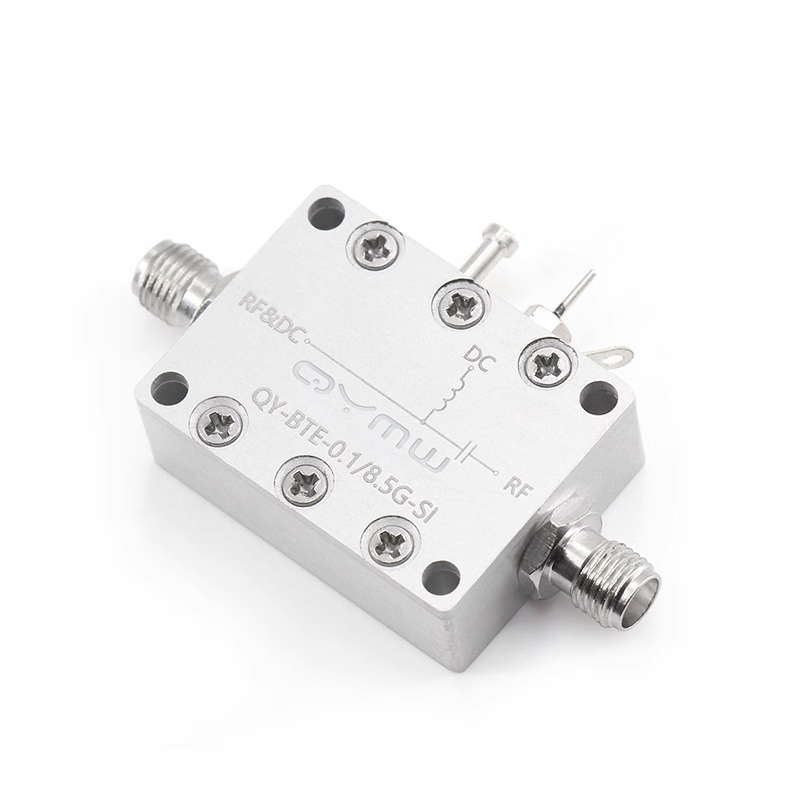

QY-BTE-0.1/8.5G-SI 0.1-8.5GHz Bias Tee RF Coaxial DC Block Bias Tee SMA Aluminum Alloy Shell

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.19
  • Price in reward points: 282 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.63 $27.06 $26.22 $25.09 Contact US
Quantity:

QY-BTE-0.1/8.5G-SI 0.1-8.5GHz Bias Tee RF Coaxial DC Block Bias Tee SMA Aluminum Alloy Shell

Description:

QY-BTE-0.1/8.5G-SI is a 0.1~8.5GHz SMA wideband RF bias tee. Its shell adopts aluminum alloy natural color conductive oxidation process, which has high mechanical reliability and wear resistance.

Specifications:

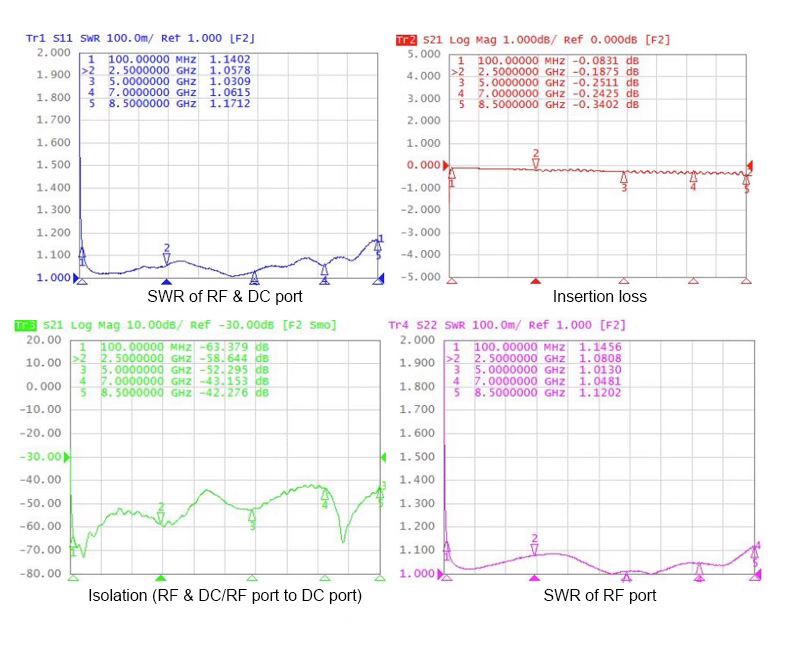

- Frequency range: 100~8500MHz
- Insertion loss: ≤0.4dB
- RF & DC port standing wave: Typ. 1.10/Max. 1.2
- RF port standing wave: Typ. 1.10/Max. 1.2
- Isolation: Min. 30dB
- Bias current: 600mA
- DC bias: 50V Max.
- DC resistance: 1 Ohm Typ.
- Impedance: 50 Ohms
- Port connector: SMA-Female ternary alloy
- Power: 2W (33dBm)
- Operating temperature: -35°C to +100°C
- Surface treatment: sandblasted guide

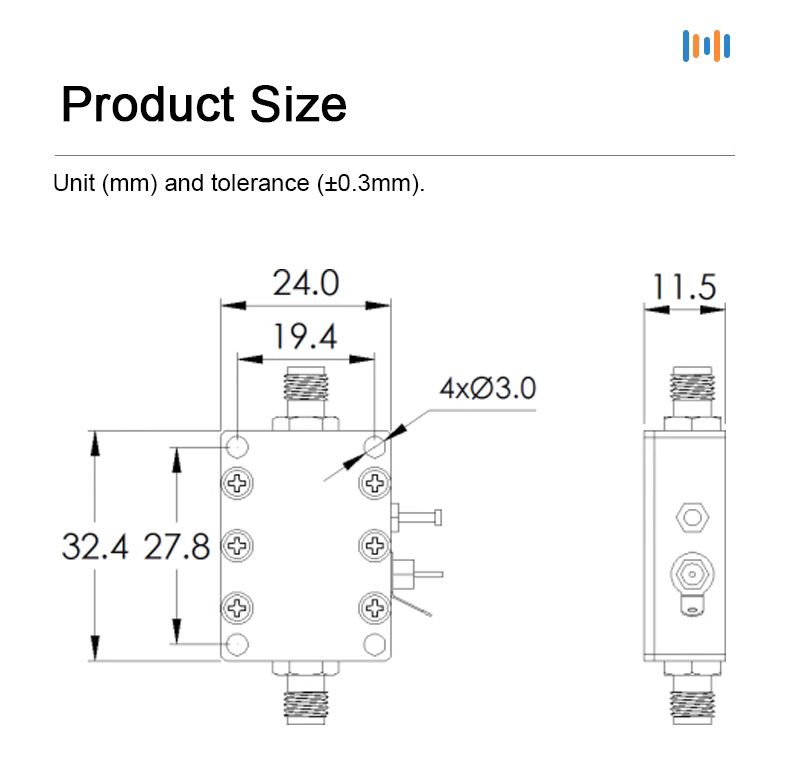

- Dimensions: 32.4 x 24 x 11.5mm/1.3 x 0.9 x 0.5"
- Weight: 22g/0.05lb

Package Included:
- 1 x Bias Tee
