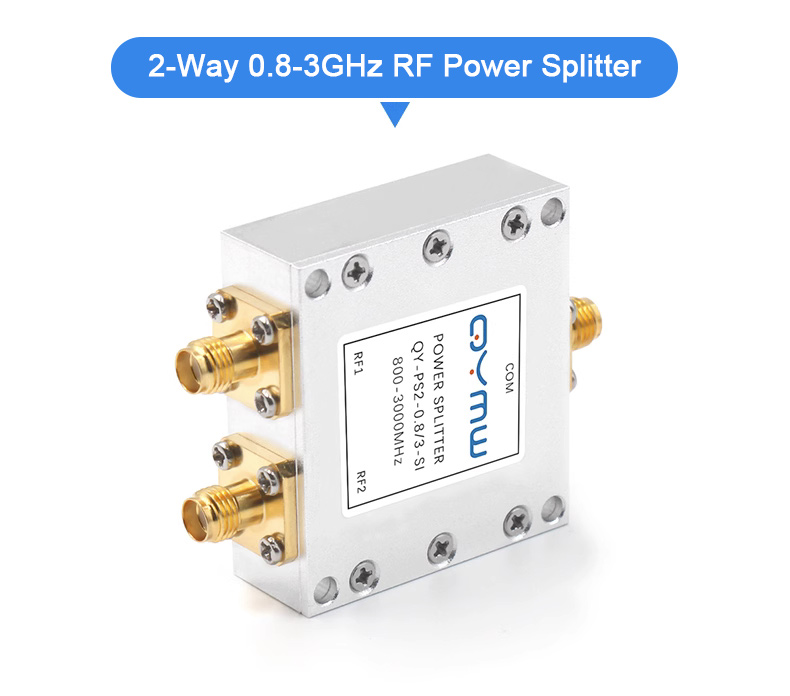

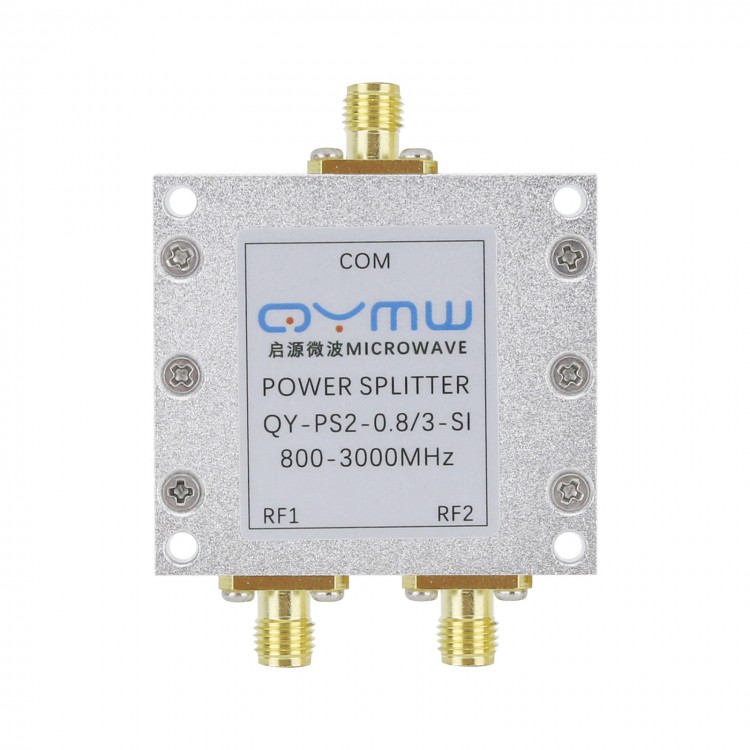

QY-PS2-0.8/3-SI 800-3000MHz 2-Way RF Power Splitter 0.8-3GHz RF Power Combiner with SMA Connector
Advantages:
- Low insertion loss
- Low standing wave
- High isolation capacity
- Excellent indicators
Specifications:
- Model: QY-PS2-0.8/3-SI
- Frequency range: 800~3000MHz

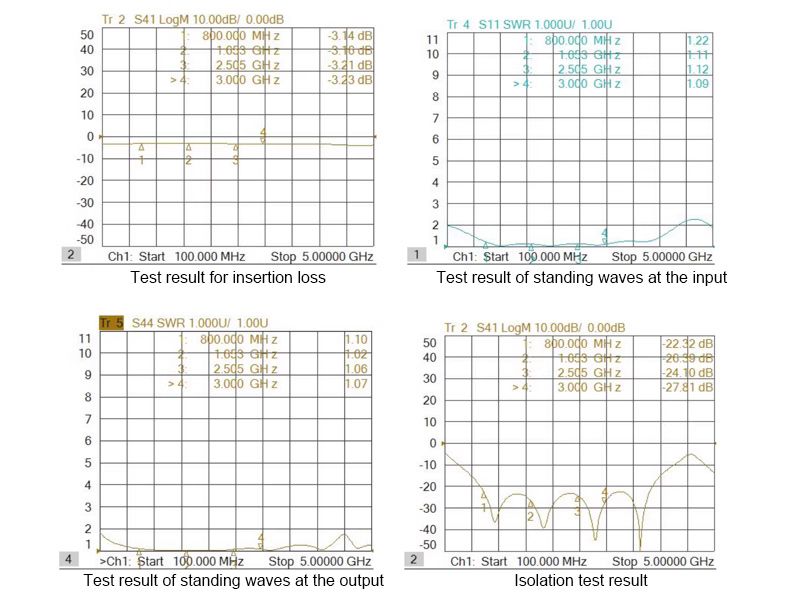

- Insertion Loss: ≤0.5dB (3.0dB without theoretical loss)
- Input standing wave: Typ. 1.25/Max. 1.4
- Output standing wave: Typ. 1.2/Max. 1.3
- Isolation: Typ. 20dB/Min. 20dB
- Amplitude balance: ±0.3dB
- Phase balance: ±5°
- Impedance: 50 Ohms
- Port connector: SMA-Female
- Withstand power: 35W as a splitter; 2W as a combiner
- Operating temperature: -40°C to +125°C
- Surface treatment: sandblasted guide
- Dimensions: 42.4 x 38.4 x 14.7mm/1.7 x 1.5 x 0.6"
- Weight: 50g/0.1lb
Package Included:
- 1 x RF Power Splitter
