| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $83.24 | $81.54 | $78.99 | $75.60 | Contact US |

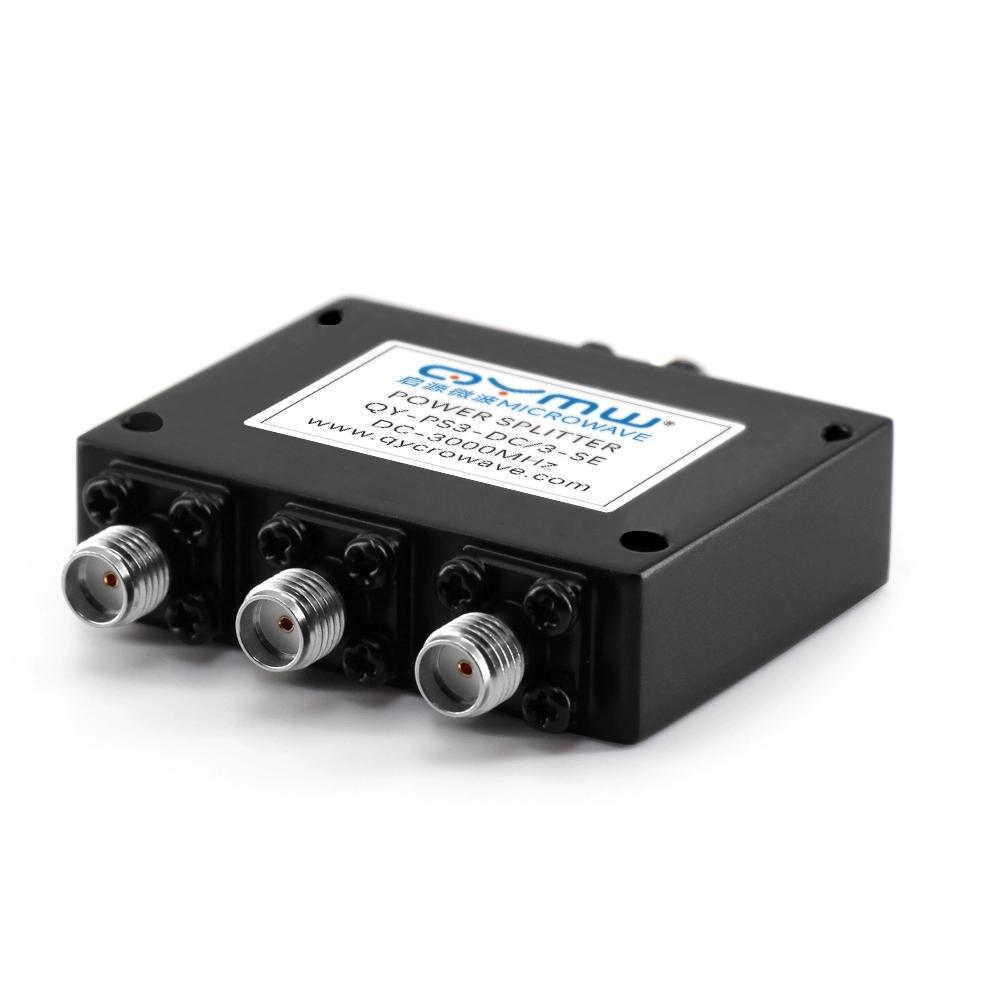

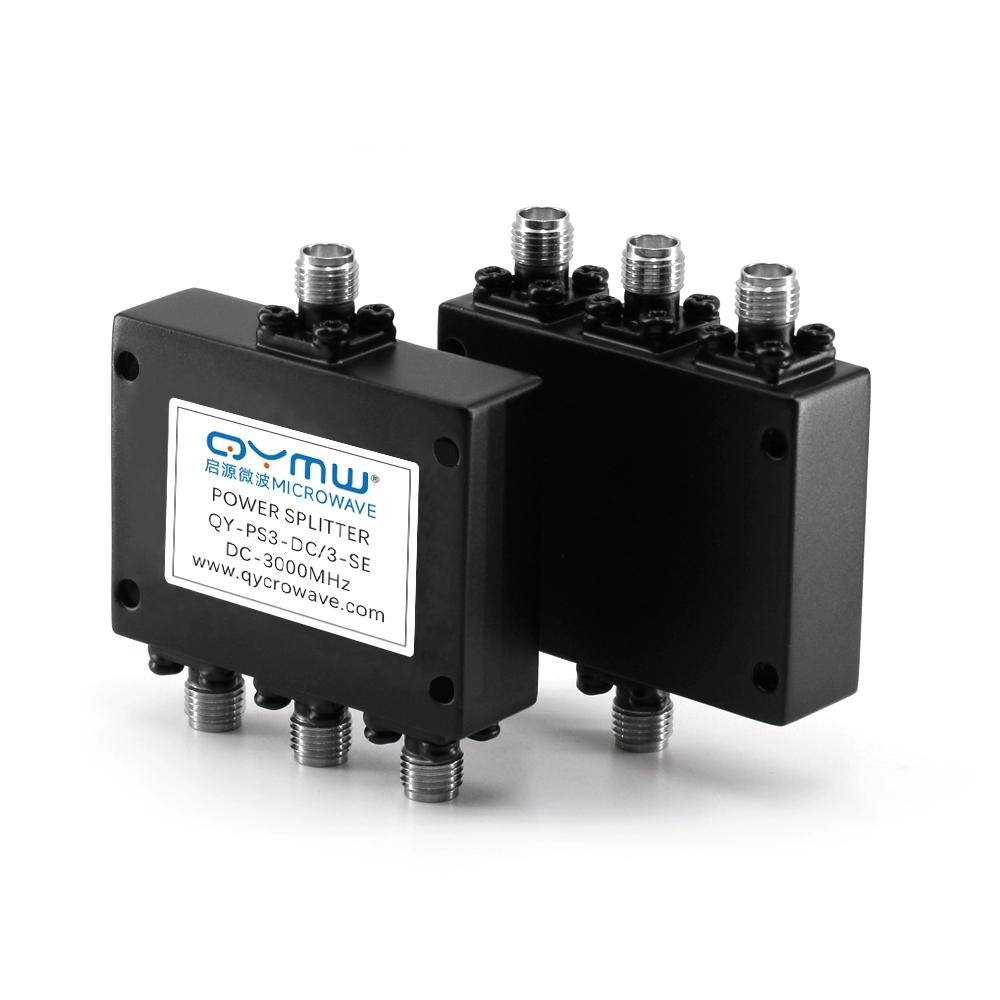

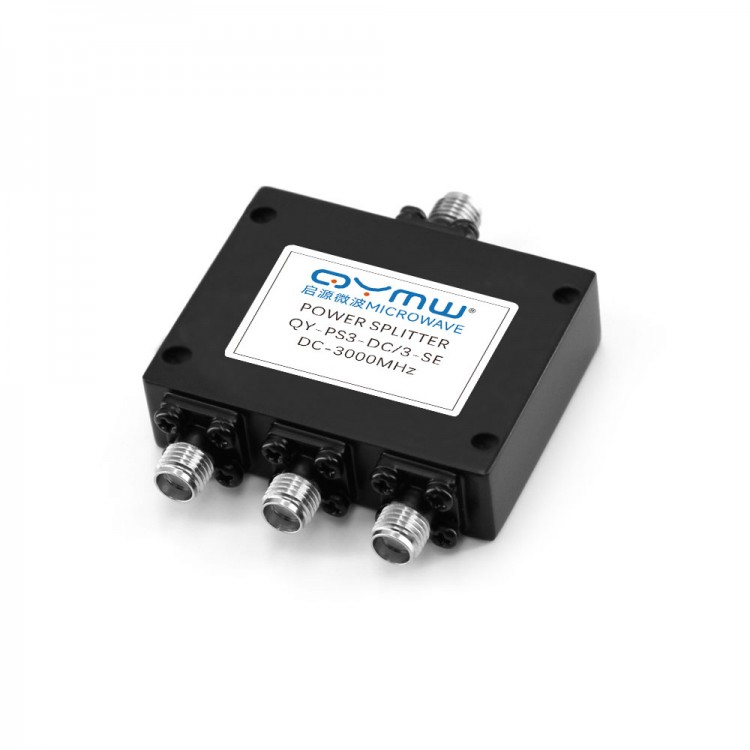

QY-PS3-DC-3-SE 3-Channel DC-3GHz Resistance RF Power Splitter for GPS/Beidou RF Signal Power Divider with SMA Female Connector
Specification:

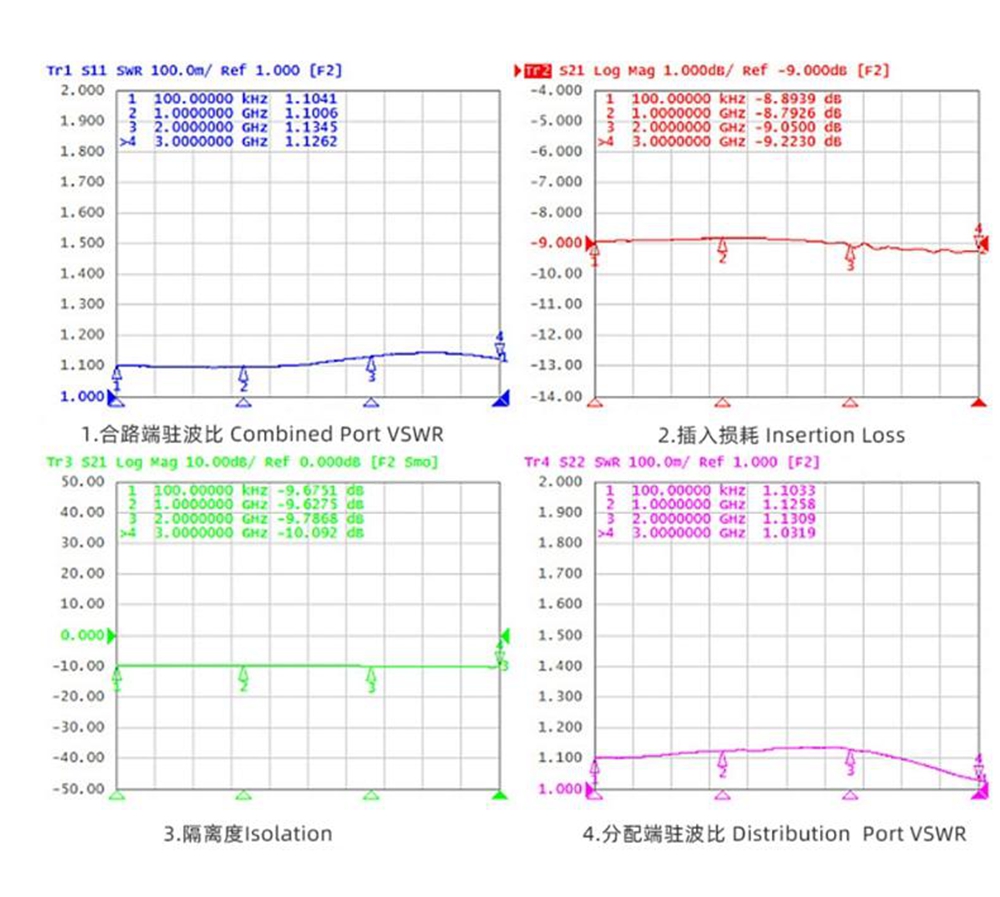

- Frequency range: DC-3000MHz
- Insertion loss: <= 9.9dB
- Combined port VSWR: (Typ.) 1.14 / (Max.) 1.25
- Distribution port VSWR: (Typ.) 1.14 / (Max.) 1.25
- Isolation: (Min.) 8.9dB
- Amplitude balance: +/- 0.3dB
- Phase balance: +/- 3°
- Impedance: 50 ohms
- Connectors: SMA female connector
- Power Rating: 2W
- Operation Temperature: -35°C ~ +75°C
- Surface finishing: black paint

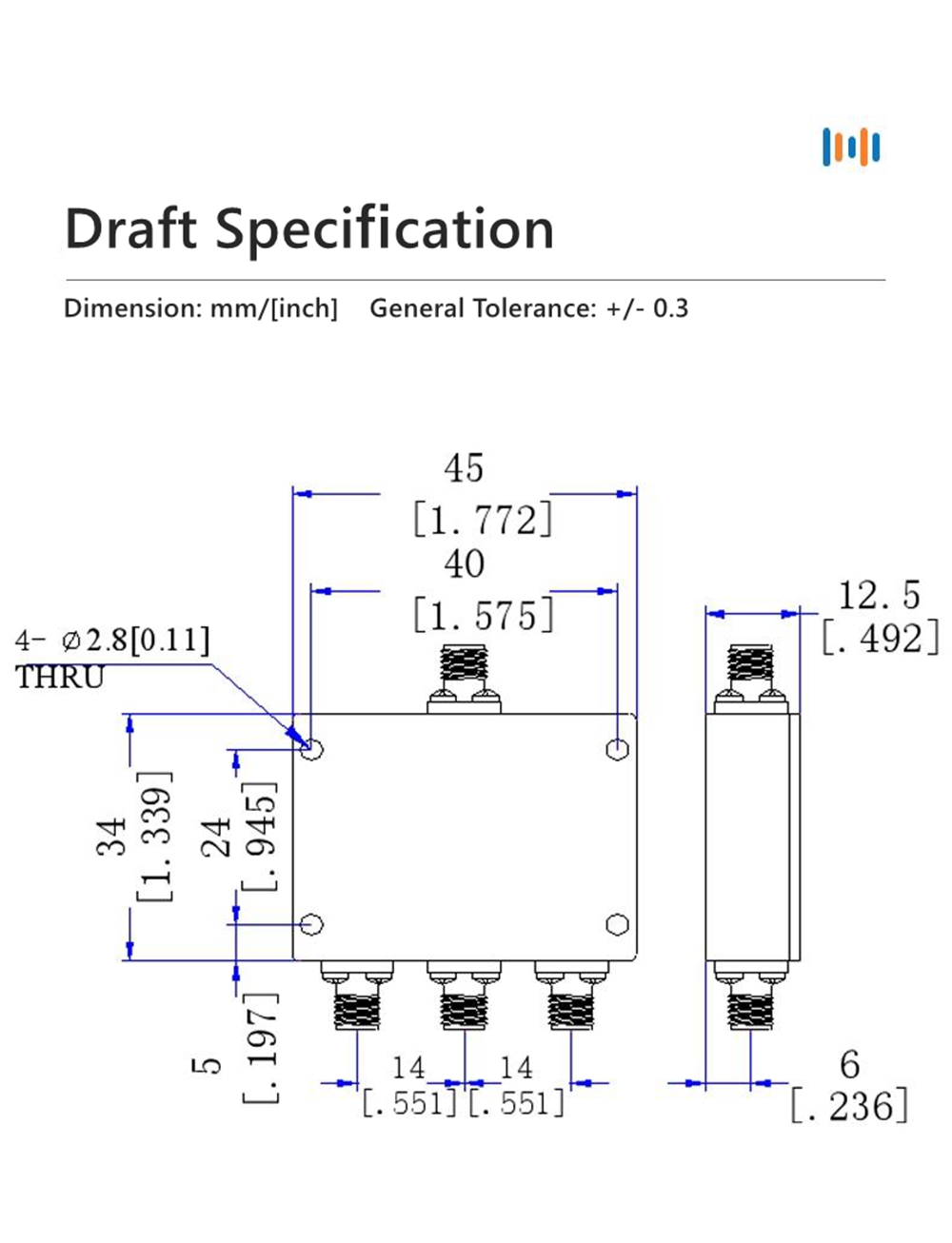

- Outline dimension: 34 x 45 x 12.5mm
- Net weight: 55g
Package Included:
- 1 x Power Splitter
