QYT-KT8900 25W VHF UHF Mobile Radio Mini-Sized Dual Band Transceiver High Power (Standard Version)
Features:
- Upgraded transceiver (with 3.5mm PTT earphone Connector)
- Dual Band: VHF 136-174MHz and UHF 400-480MHz
- Comes with 2 Tone, 5 Tone, DTMF functions
- Can display and monitor two frequencies at the same time
- Mini compact size: 98 x 35 x 118mm/3.9 x 1.4 x 4.6"
- RF output power: 25W/20W (VHF/UHF)
Specifications:
General:
- Frequency Range: VHF 136-174MHz and UHF 400-480MHz
- Number of Channel: 200
- Channel Spacing: 25KHz, 20KHz, and 12.5KHz
- Phase lock step: 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, and 25KHz
- Working Voltage: 13.8V DC±15%
- Squelch way: CTCSS/DCS/5 Tone/2 Tone/DTMF
- Frequency Stability: ±2.5ppm
- Operating Temperature: -20 to +60℃
- Dimensions: 98 x 35 x 118mm/3.9 x 1.4 x 4.6"
- Weight: 408g/0.9lb
Receiver:
- Sensitivity: ≤ 0.25μV (Broadband); ≤ 0.35μV (Narrow-band)
- Channel choice: ≥70dB (Broadband); ≥60dB (Narrow-band)
- Intermodulation: ≥65dB (Broadband); ≥60dB (Narrow-band)
- Spurious Rejection: ≥70dB (Broadband); ≥70dB (Narrow-band)
- Audio response: -3dB to +1dB (0.3~3KHz) for broadband; -3dB to +1dB (0.3~2.55KHz) for narrow-band
- Signal to noise ratio: ≥45dB (Broadband); ≥40dB (Narrow-band)
- Audio distortion: ≤5%
- Audio output power: ≥2W at 10%
Transmitter:
- Output power: 25W/20W(VHF/UHF)
- Modulation Mode: 16KΦF3E (Broadband); 11KΦF3E (Narrow-band)
- Channel Power: ≥70dB (Broadband); ≥60B (Narrow-band)
- Signal to noise ratio: ≥40dB (Broadband); ≥36dB (Narrow-band)
- Parasitic harmonic: ≥60dB (Broadband); ≥60dB (Narrow-band)
- Audio response: -3dB to +1dB (0.3~3KHz) for broadband; -3dB to +1dB (0.3~2.55KHz) for narrow-band
- Audio distortion: ≤5%

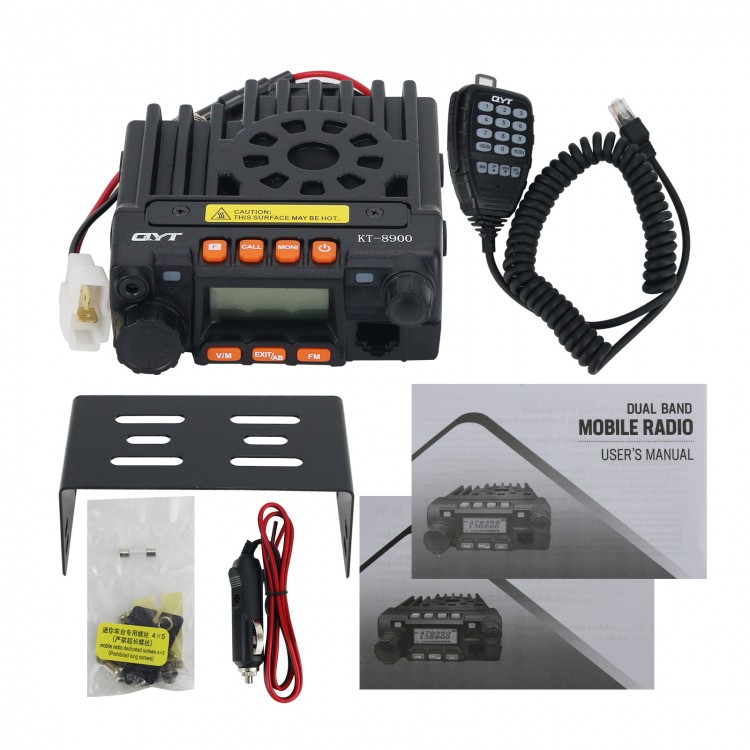

Package Included:
- 1 x QYT-KT8900 Radio
- 1 x Microphone with Keypad
- 1 x DC Power Cable (with Cigarette Lighter)
- 1 x Mounting Bracket
- 1 x Mounting Screws Kit
- 1 x User Manual
Note:
- Antenna is not included in the package.
- The default product color is black. If you want other colors (Camouflage, Red, Blue), please leave a message when ordering. Thank you!
