R-2R XY-SLR DAC Board Discrete Ladder DAC Module PCM 24Bit 384Khz Decoder Board 0.1% Accuracy

R-2R XY-SLR DAC Board Discrete Ladder DAC Module PCM 24Bit 384Khz Decoder Board 0.1% Accuracy

Description:

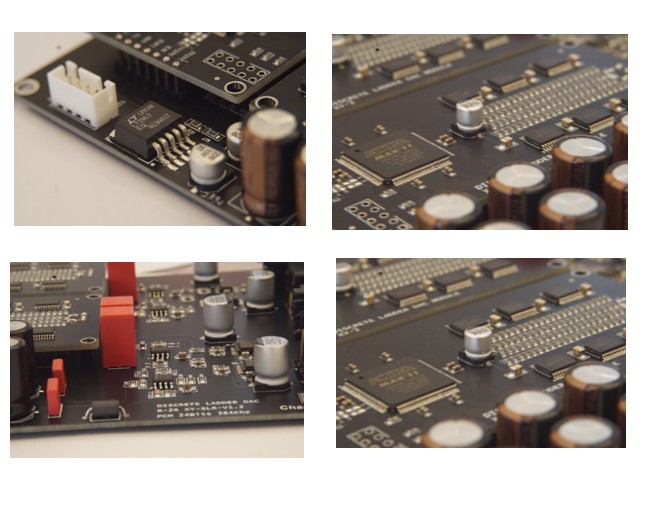

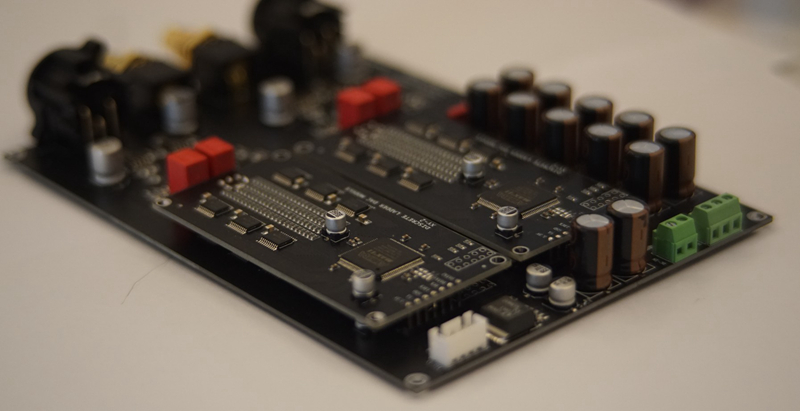

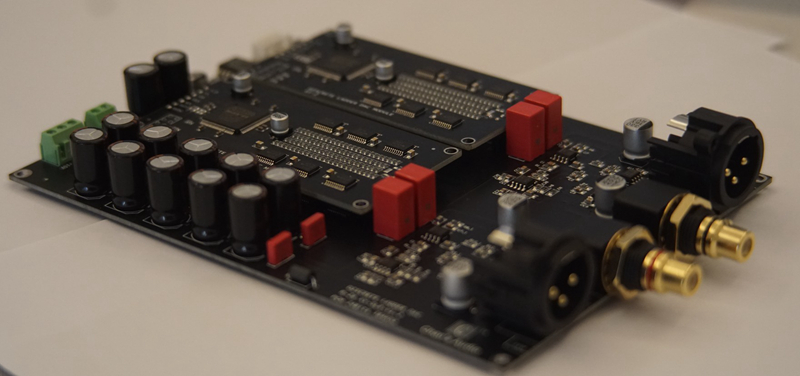

This decoding board uses four discrete ladder DAC modules to form a differential balanced architecture, which is filtered by IPF and amplified by first-stage buffered and then output. The module refers to the foreign circuit design for ROCKNA, which has high resistance accuracy requirements for compensation processing, so that the sound quality is better. Even when the playing volume is adjusted to -80dB and monitor headphones are used, there are no distortion and noise, which enables it outperform normal R-2R decoding circuit.

This complementary R-2R is one of the most mature representatives on the market, and its sound is relatively realistic, without any digital modification.

Compared with PCM1704 (a representative of a more realistic DAC), the decoder board does not have the sharpness of its high frequency. The accuracy of the board is 0.1%.

Specifications:

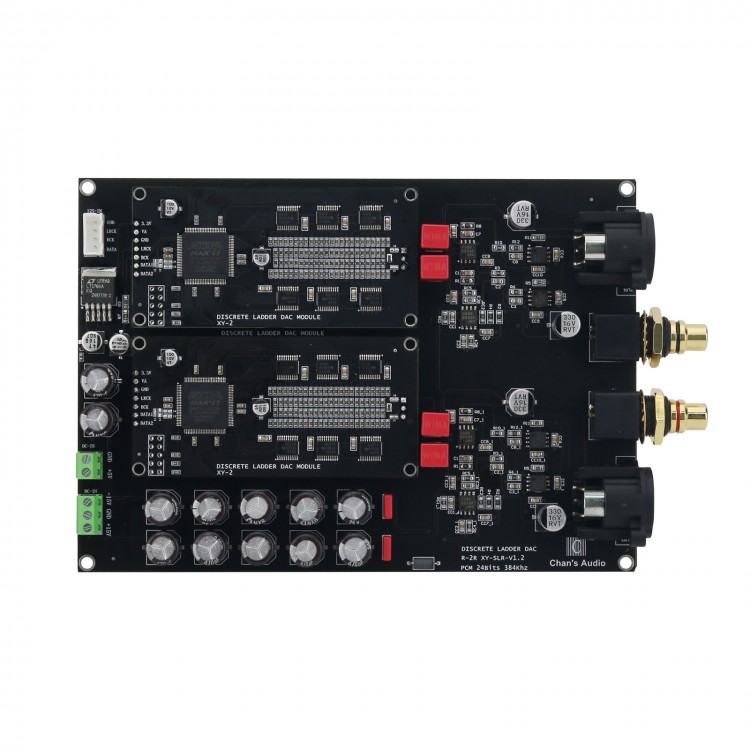

- Item name: complementary resistance ladder balance DAC
- Model: R-2R XY-SLR
- Dimensions: 120 x 170mm/4.7 x 6.7" (excluding seat protrusion)
- Net weight: 185g/0.4lb

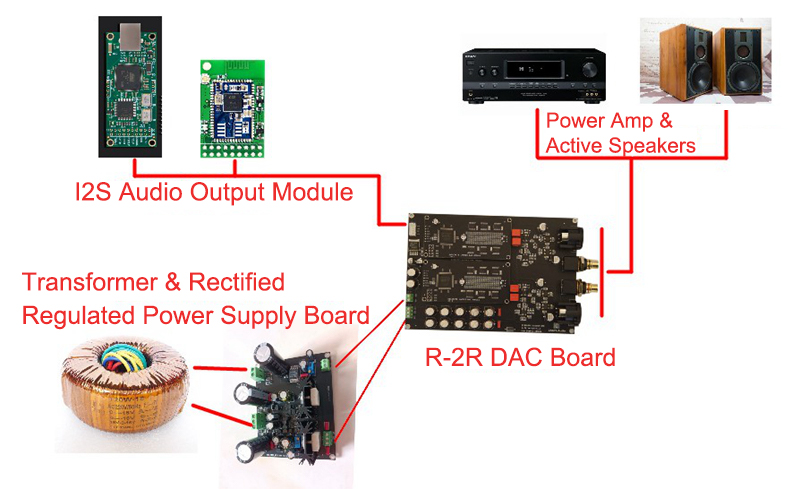

- Signal input: I2S standard interface GND, LRCK, BCK and DATA (support for Amanero interface, Bluetooth I2S module, XMOS interface, sa9227 interface, wm8805 coaxial to I2S module, ak4113-ak4118 coaxial to I2S module, etc.). Not for old Philips I2S interface (such as I2S for CD motherboards)
- I2S interface operating mode: main mode
- Power interface: digital circuit DC 5V 1A working current; Analog amplification circuit DC+15V, GND, and -15V, and operating current 500mA

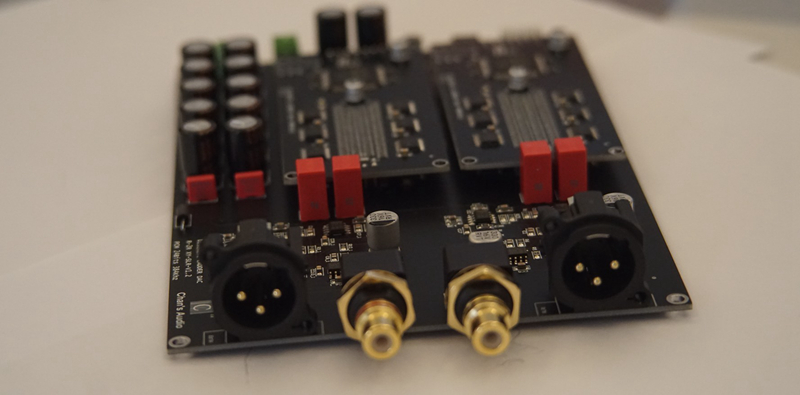

- Output interface: RCA left and right channels and 2V amplitude output; XLR left and right channels and 4V amplitude output

Package Included:
- 1 x DAC Module

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
