R-SPS3010 Adjustable DC Power Supply For Cellphone Repairs Output 0-30V 0-10A 3-Digit Display White
Features:
- Complete operating protection function
- Highly efficient, low ripple, small volume, light weight

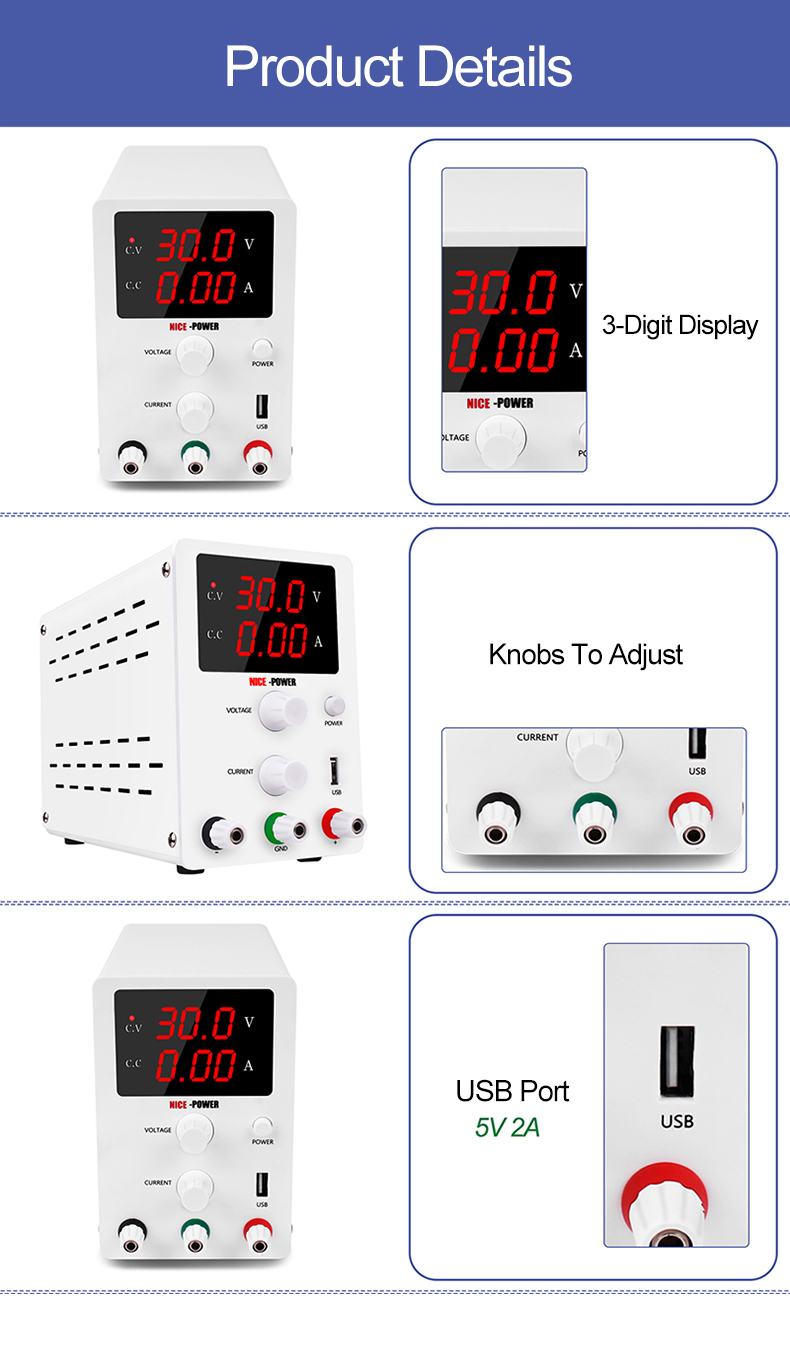

- 3-Digit display. Display voltage, current with high precision
- Voltage stabilization, current limiting, simple operation
- Temperature control fan with low noise for heat dissipation
- Double potentiometer enables more precise adjustment
Technical Parameters:
- Model: R-SPS3010
- Output voltage: 0~30V
- Output current: 0~10A
- Optional Voltage: 110V or 220V
- Working temperature: 0℃ to 40℃; Relative humidity:＜80%RH
- Storage temperature: -10℃ to 70℃; Relative humidity:＜70%RH
- Constant voltage status:
* Voltage stability: ≤ 0.1%+3mV
* Load stability: ≤ 0.1%+3mV
* Ripple noise: ≤ 20mVrms
- Constant current status:
* Current stability: ≤ 0.1%+3mA
* Load stability: ≤ 0.2%+3mA
* Ripple noise: ≤20mAems (effective value)
- Display accuracy: 0.5% + 2-digit
- Display resolution: Voltage: 0.1V; Current: 0.01A
- Product total weight: About 1.6KG
- Fuse: 3A
Attention:
The above parameters are tested at 25±5°C and relative humidity: <80%RH. And preheated for 30 minutes to measure. Actual parameters will vary slightly.
Package Included:

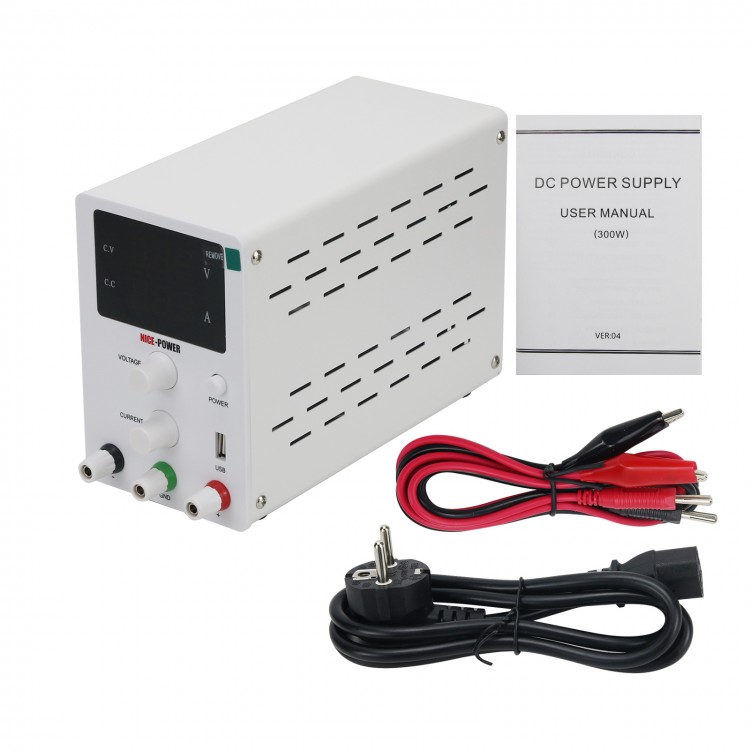

- 1 x Set of DC Power Supply

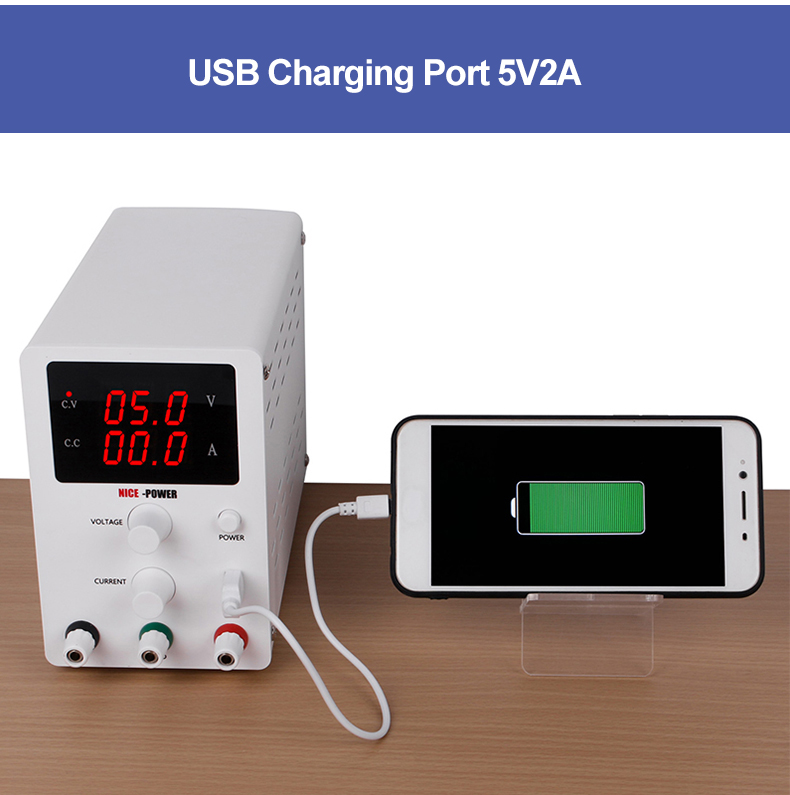

Note: Mobile phone and USB charging cable pictured are not included, for demonstration purposes only.
