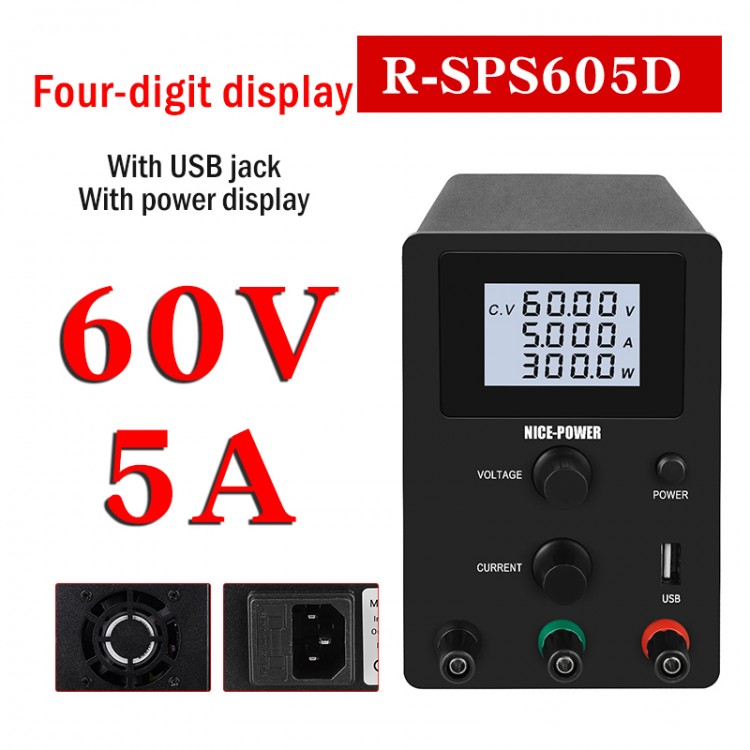

R-SPS605D Adjustable DC Power Supply Switching Power Supply Output 0-60V 0-5A 4-Digit Display Black
Features:
- Complete operating protection function
- Highly efficient, low ripple, small volume, light weight
- Display voltage, current with high precision
- Voltage stabilization, current limiting, simple operation
- Temperature control fan with low noise for heat dissipation
- Double potentiometer enables more precise adjustment
- LCD 4-digit display for night use and eye protection
- Product size: 200 x 95 x 140 mm (LxWxH)
Technical Parameters:
- Model: R-SPS605D
- Output voltage: 0~60V
- Output current: 0~5A
- Optional Voltage: 110V or 220V
- Working temperature: 0℃ to 40℃; Relative humidity:＜80%RH
- Storage temperature: -10℃ to 70℃; Relative humidity:＜70%RH
- Constant voltage status:
* Voltage stability: ≤ 0.1%+3mV, lower voltage: 0.2%~0.3%+3mV
* Load stability: ≤ 0.5%+3mV
* Ripple noise: ≤ 30mVrms (effective value)
- Constant current status:
* Current stability: ≤ 0.2%+3mA
* Load stability: ≤ 0.2%+3mA
* Ripple noise: ≤20mAems (effective value)
- Display accuracy: 0.5% + 2-digit
- Display resolution: Voltage: 00.01V; Current: 0.001A
- Product total weight: About 1.2KG
- Fuse: 3A (220V input) or 5A (110V input)
Attention:
The above parameters are tested at 25±5°C and relative humidity: <80%RH. And preheated for 30 minutes to measure. Actual parameters will vary slightly.
Package Included:
- 1 x Set of DC Power Supply
