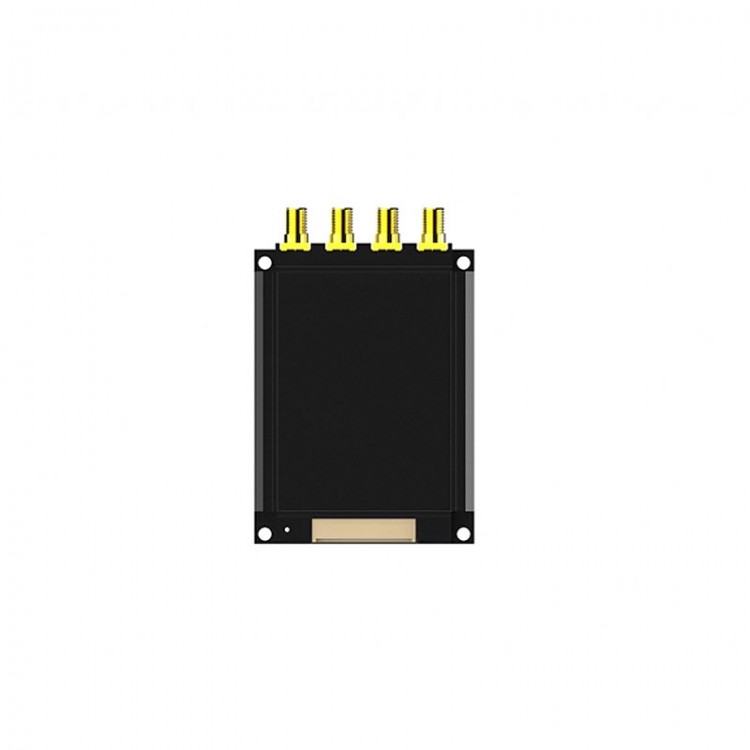

• R2000 UHF Ultra-high Frequency 4-Channel RFID Reader Writer Module 4.5-5.5VDC 902-928MHz RFID Duplicator

R2000 UHF Ultra-high Frequency 4-Channel RFID Reader Writer Module 4.5-5.5VDC 902-928MHz RFID Duplicator

Availability: In stock, usually dispatched in 1 business day

  • Price:$198.06
  • Price in reward points: 1981 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $194.10 $190.14 $184.20 $176.27 Contact US
Quantity:

R2000 UHF Ultra-high Frequency 4-Channel RFID Reader Writer Module 4.5-5.5VDC 902-928MHz RFID Duplicator

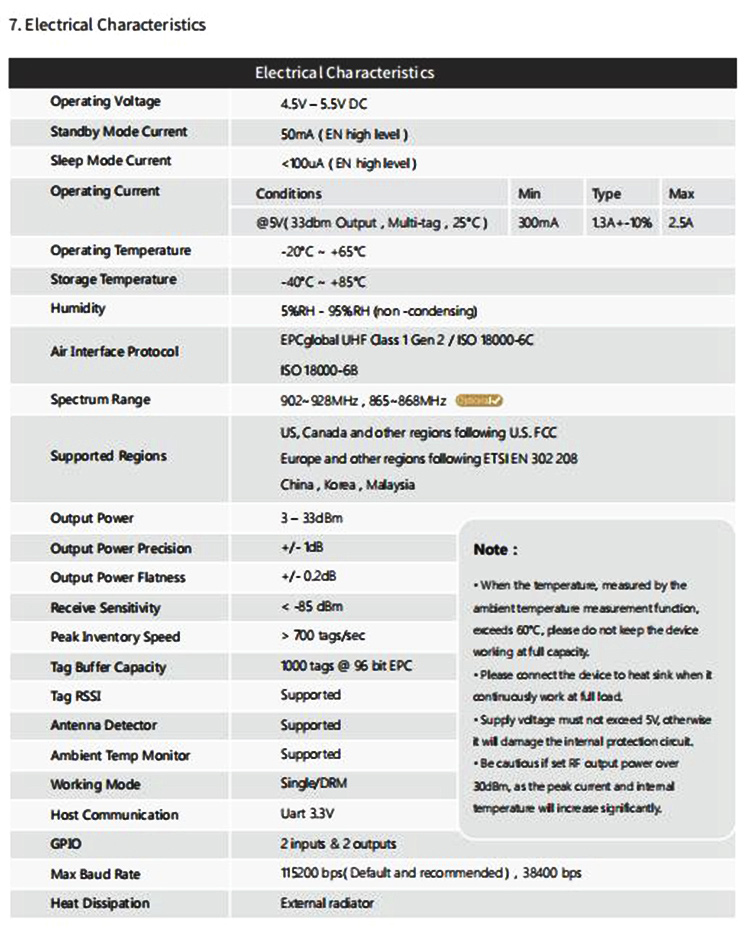

Specification:

- Operating voltage: 4.5 - 5.5VDC
- Standby mode current: 50mA
- Sleep mode current: <100uA
- Operating current: 300mA - 2.5A
- Operating temperature: -20°C ~ +65°C
- Storage temperature: -40°C ~ +85°C
- Humidity: 5%RH - 95%RH (non-condensing)
- Air interface protocol: EPC global UHF Class Gen 2 / ISO 18000-6C / ISO 18000-6B
- Spectrum range: US 902~928MHz or EU 865~868MHz (optional, please leave a message before payment)
- Output power: 3 - 33dBm
- Output power precision: +/- 1dB
- Output power flatness: +/- 0.2dB
- Receive sensitivity: <-85dBm
- Peak inventory speed: >700 tags/sec
- Tag buffer capacity: 1000 tags at 96 bit EPC
- Tag RSSI: supported
- Antenna detector: supported
- Ambient temp monitor: supported
- Working mode: single/DRM
- Host communication: Uart 3.3V
- GPIO: 2 inputs and 2 outputs
- Max baud rate: 115200 bps (Default and recommended), 38400 bps
- Heat dissipation: external radiator (not included)

Package Included:
- 1 x RFID Module
