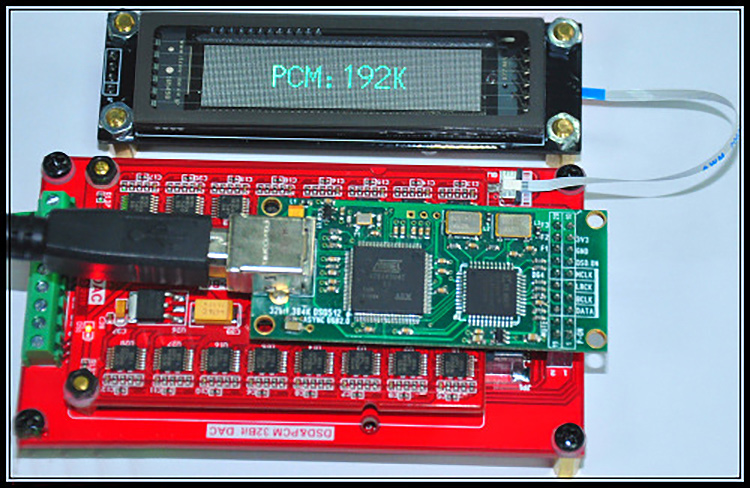

R2R DSD PCM DAC Decoder Board Fully Discrete 32Bit Dual Decoding Parallel Connection VFD OLED

Availability: In stock, usually dispatched in 1 business day

  • Price:$631.40
  • Price in reward points: 6314 Reward Points: 63
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $618.77 $606.14 $587.20 $561.95 Contact US
Quantity:

R2R DSD PCM DAC Decoder Board Fully Discrete 32Bit Dual Decoding Parallel Connection VFD OLED

Description:

- It completely and directly decode DSD and PCM, instead of converting DSD to PCM before decoding, but directly convert DSD files through R2R discrete network for digital-to-analog conversion. Its performance and function exceed any existing integrated DAC chip.
- Perfect cooperation with interface interfaces for Amanero USB, for XMOS and so on with standard I2S signal interface.
- You can use for FOOBAR, for JRiver and other software to play audio files in DSD and PCM formats.

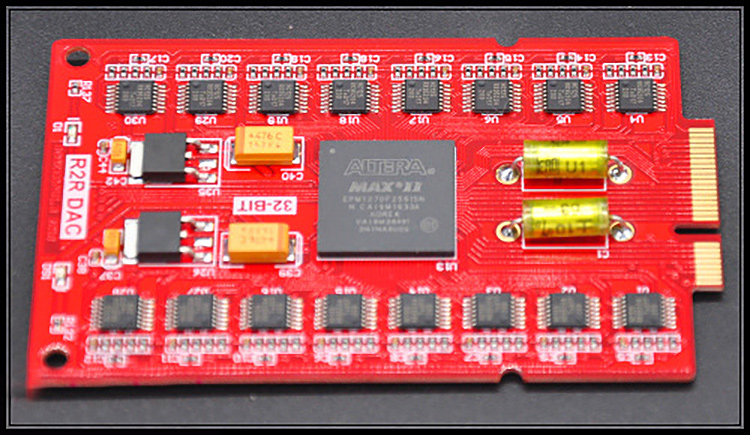

- Resistance accuracy: 1/10000! 0.01%, 32BIT decoding, double parallel connection, perfect resolution.

Features:
- Size: 84 x 52mm; double parallel connection: 110 x 63mm
- For Amanero USB interface standard input and output interface can realize seamless docking.
- Output interface, left and right channels are output independently, and each sound is output after the electrodeless capacitance (ERO MKT yellow sprite axial copper foot fever capacitance)
- Support single-ended or balanced output: single-ended or balanced output mode can be set.
- 32-bit decoding circuit design, perfect support for DSD&PCM two audio formats.
  PCM format: 32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k, 352.8k, 384k
  PCM supports 32-bit, 24-bit and 16-bit audio data formats
  DSD support formats: DSD64, DSD128, DSD256, DSD512
- 0.01% high-precision low temperature drift chip resistor is used.
- Independent power supply: the left channel, right channel and system CPU are powered independently in their respective zones.
- Power supply: low ripple LDO, independent power supply in zones.
- The system adopts 5V/2A power supply, multi-layer board design and strong anti-interference ability.
- It uses special FPGA to realize software filter, decoding and other algorithms to restore the true original sound.
- Automatic recognition: PCM and DSD audio formats do not need to be set manually, and the system directly decodes automatically.

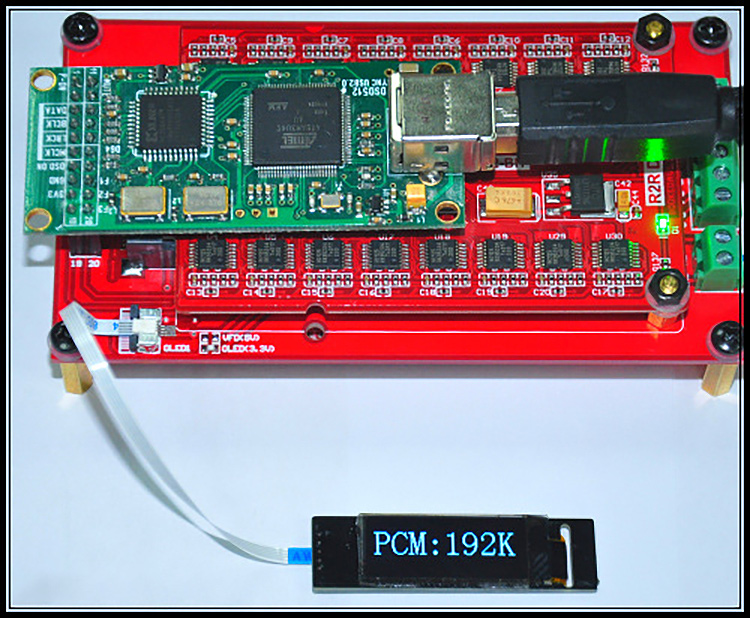

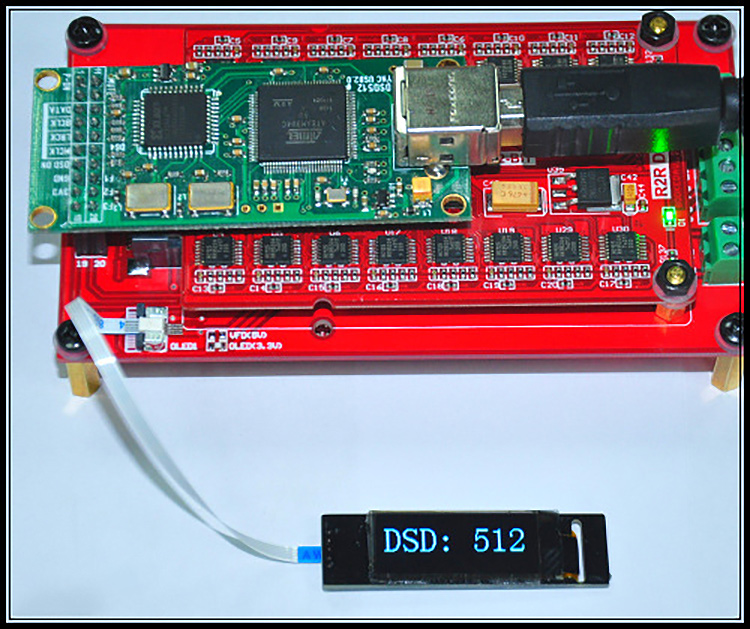

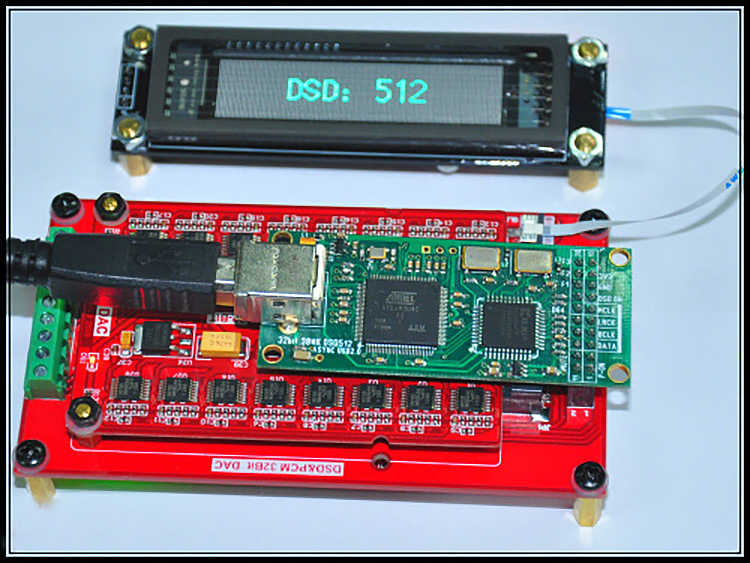

- Display: VFD screen and OLED screen are optional, and each channel independently displays playing audio information.

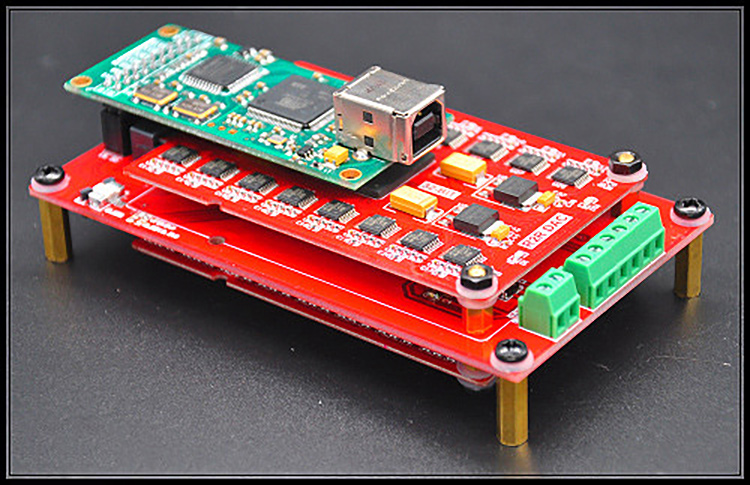

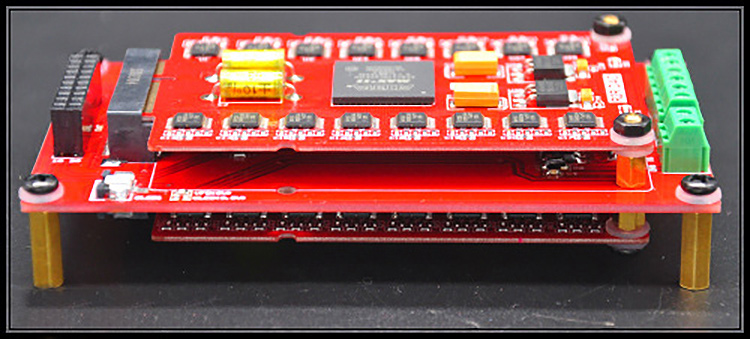

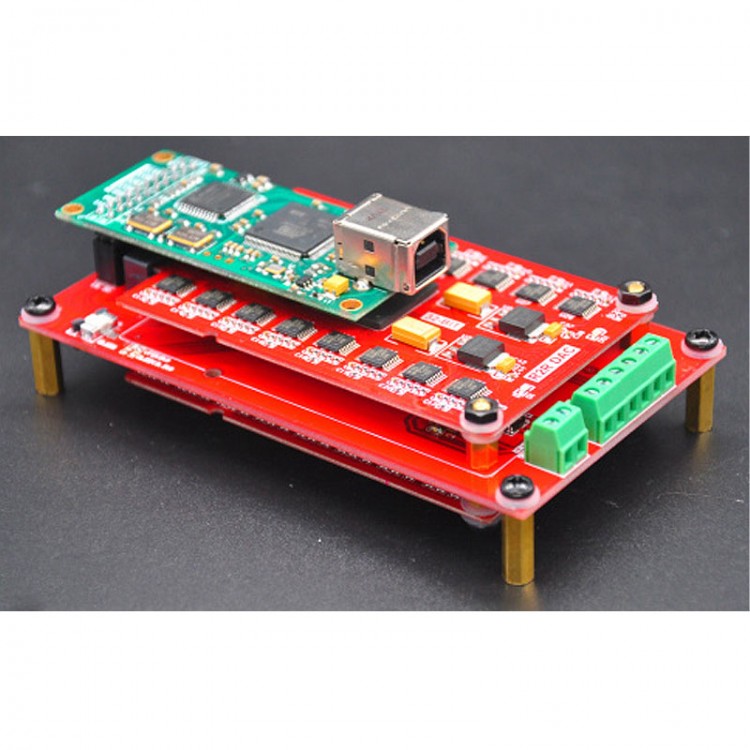

- Single board can work independently or two boards can work in parallel.
- Standard fixed hole position at four corners.

Package Included:
- 1 x Board

Note:
- The USB interface and display module are not included.
