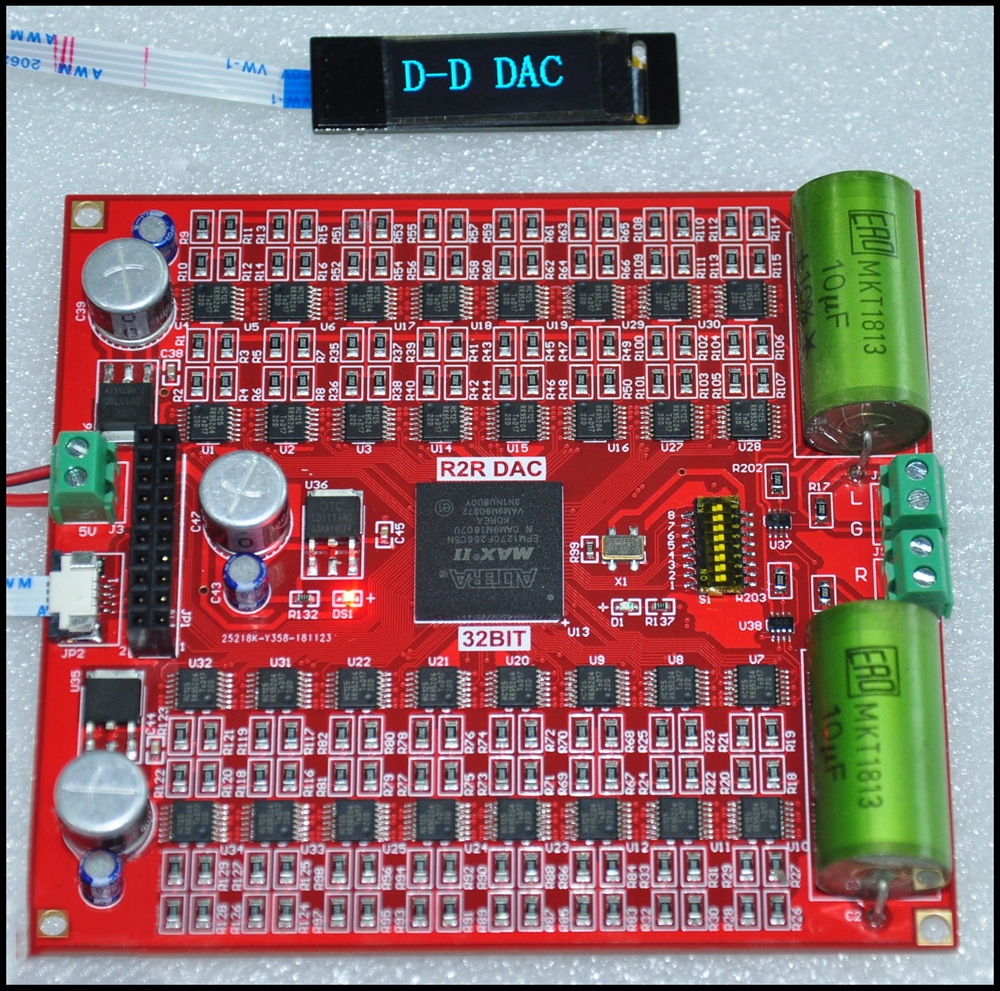

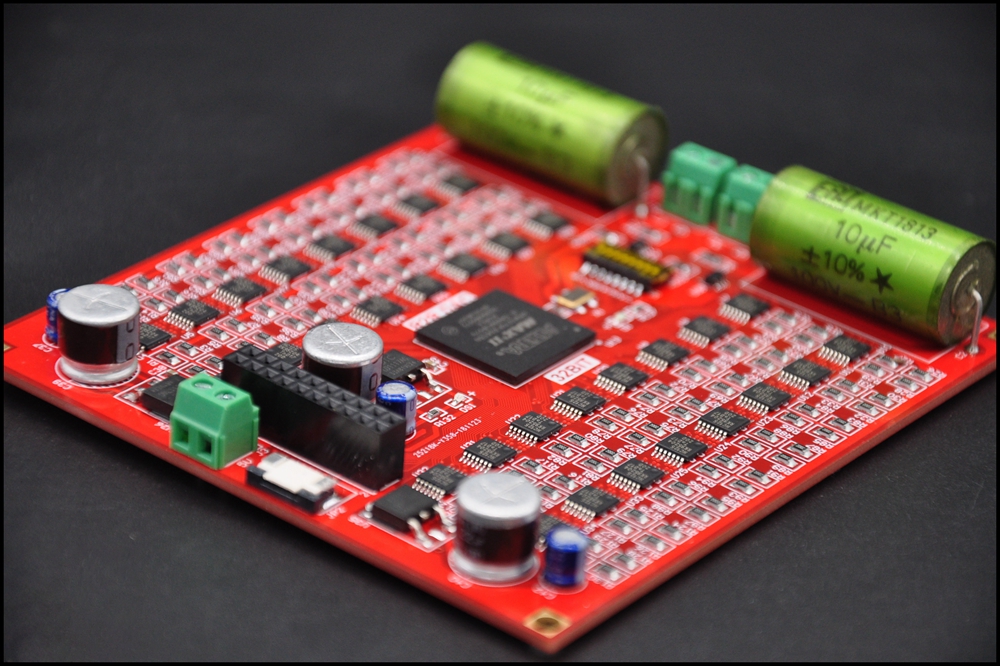

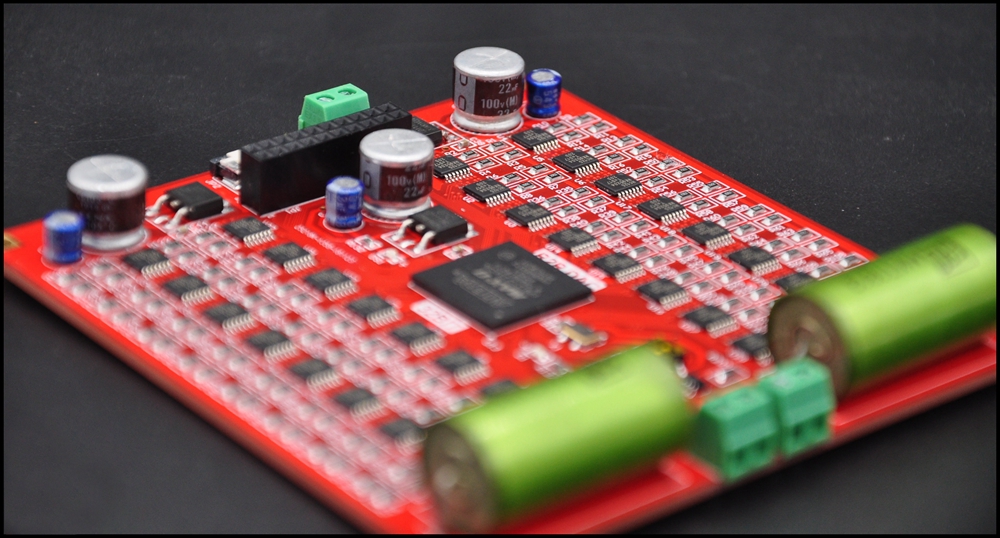

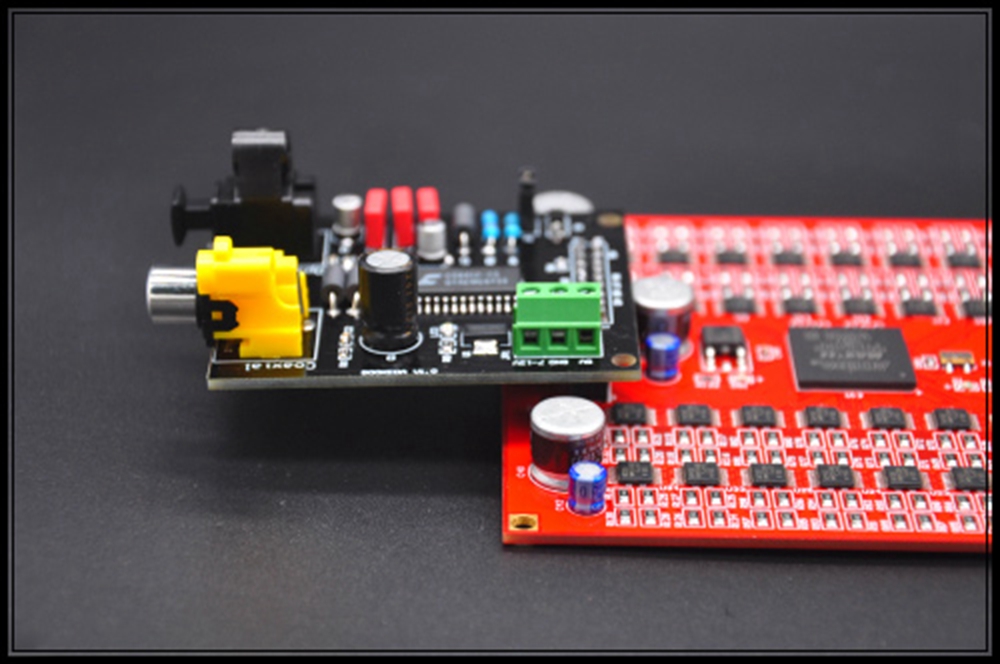

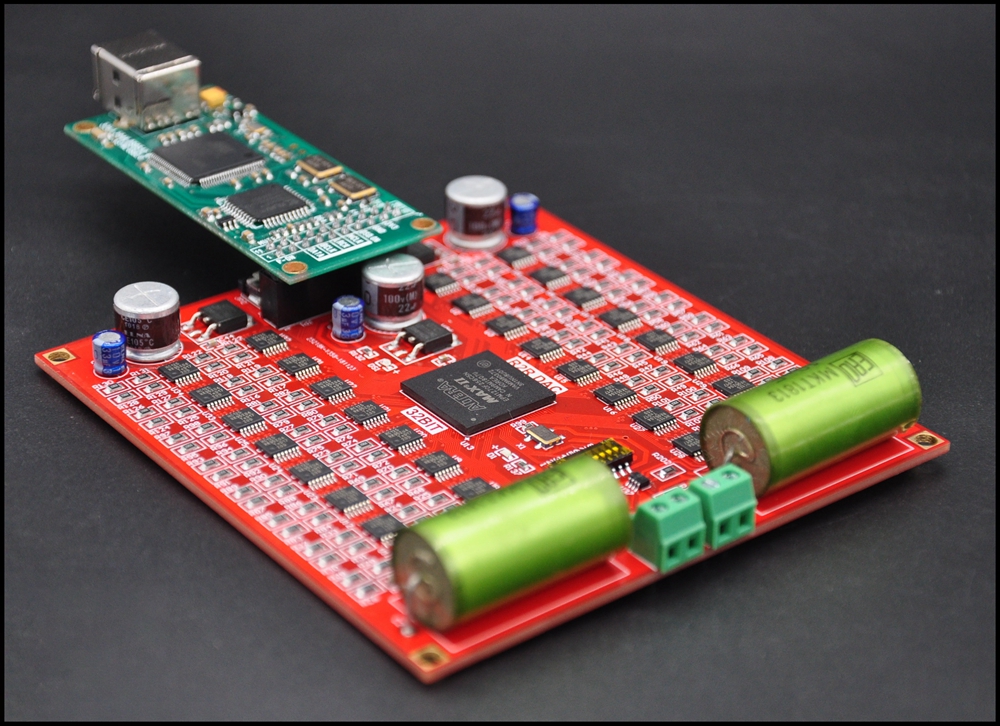

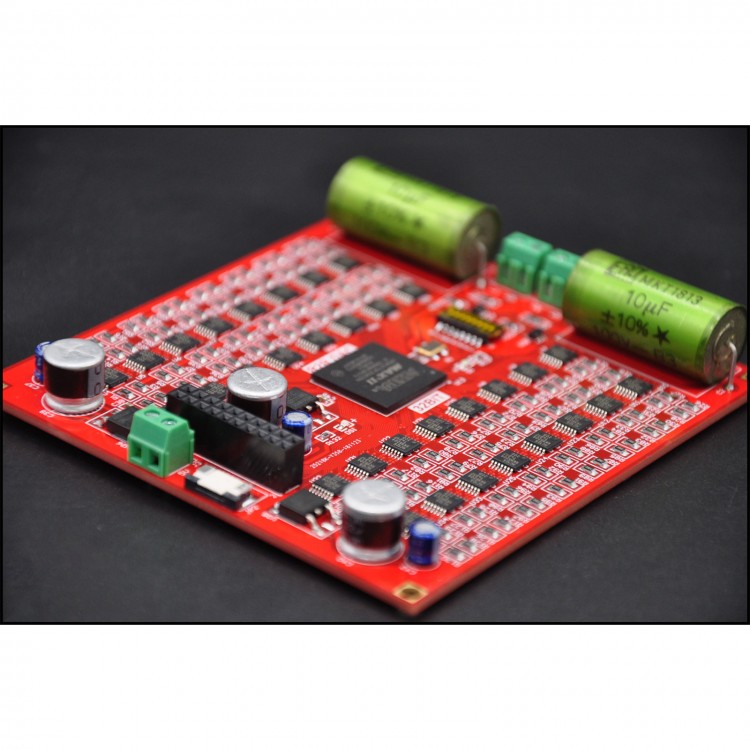

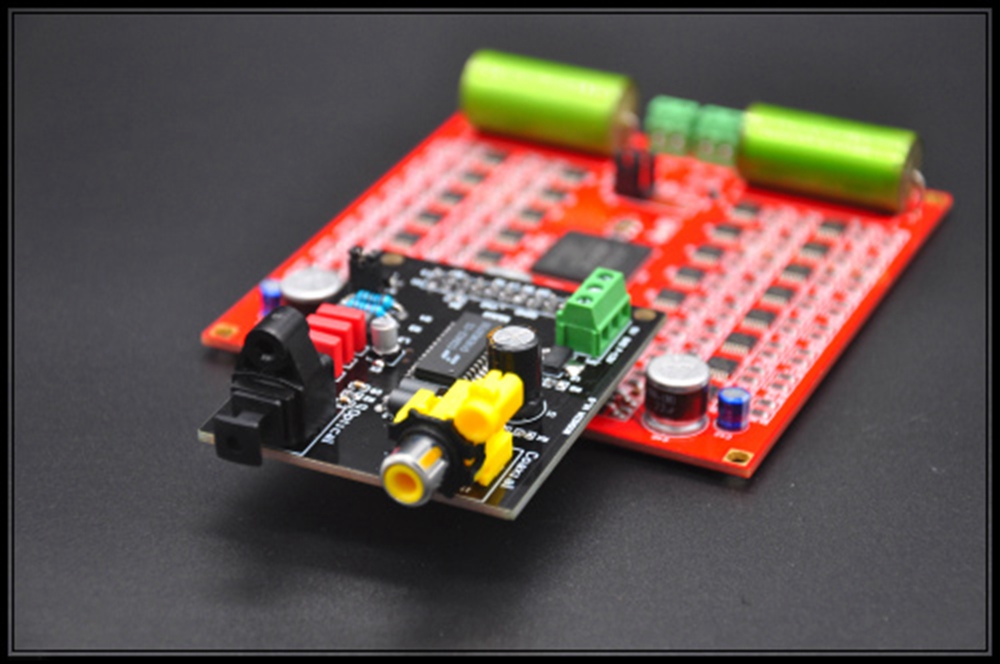

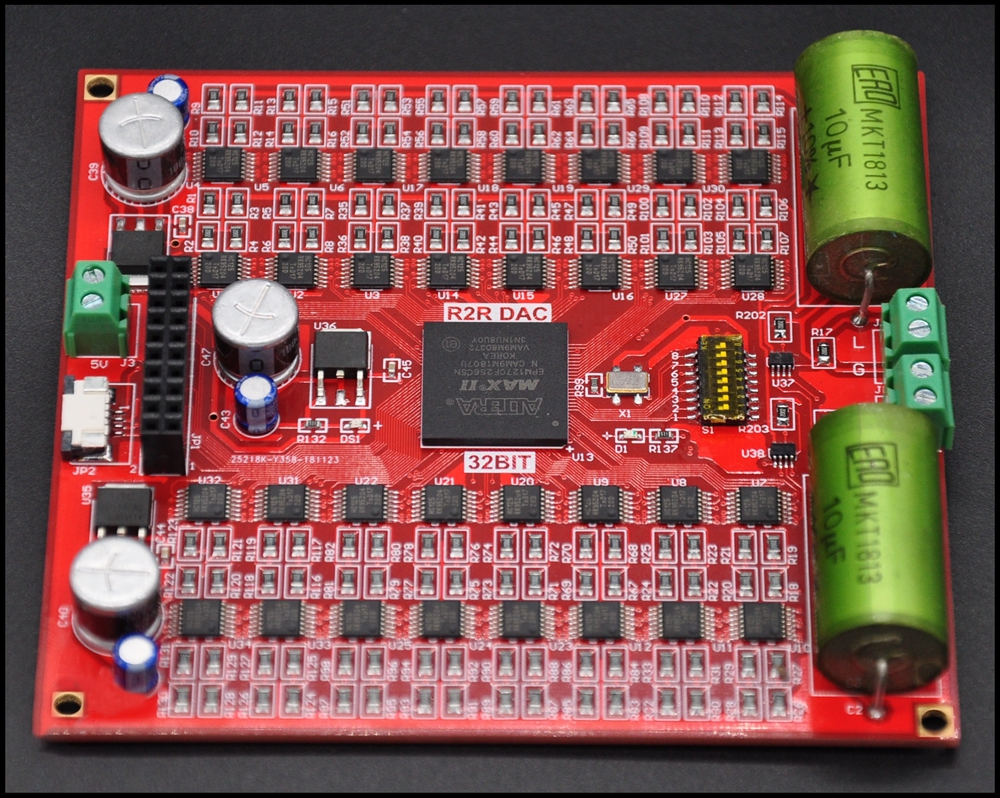

R2R DSD PCM DAC Decoder Board Fully Discrete 32Bits Direct and Dual Decoding Automatic Recognition
Description:
- This module completely decodes DSD and PCM directly, instead of converting DSD to PCM and decoding it, it directly converts DSD files to digital analog through R2R discrete network. Its performance and function exceed any existing DAC integrated chip.
Parameter:
- CPU: FPGA/CPLD
- Decoding bit and audio format:
PCM: 32Bits; 16/24/32/64, automatic recognition
DSD: 32Bits; 32/64/128/256/512/1024, automatic recognition
- Output channel: L/R; (L+/L-)/(R+/R-) independent output
- Output mode: Single/Balanced
- Display interface: FPC1.0mm, it can be connected with OLED/VFD display module
- Resistor precision: 0.01% high-precision and low-temperature bleaching resistor
- System power supply: DC5V/1A, ultra-low ripple scheme
- Size: 9.6 x 9.6cm
Package Included:
- 1 x Board
