Description:

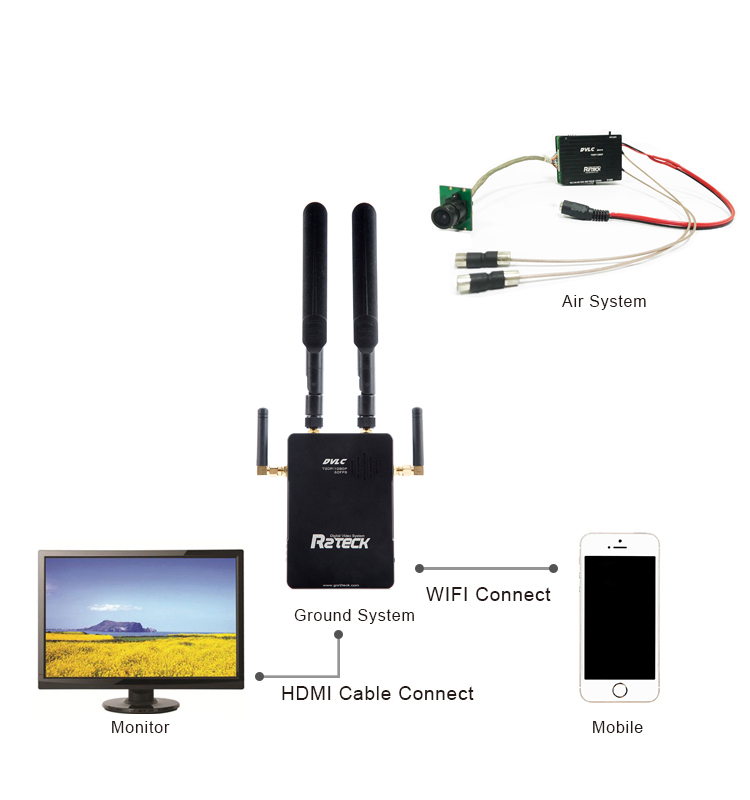

DVLC includes the sky terminal and the terrestrial terminal. It is a 1080p/720p ultra-clear digital image transmission system that uses wireless communication to transmit video images, OSD and other information. DVLC boasts small size, low power consumption, long transmission distance, low delay, etc., which can meet the needs of image transmission in various fields. When using this product in aeromodelling activities, please install the sky terminal to your aircraft and connect the ground terminal to the monitor, or connect the ground terminal via mobile WIFI to view the video image and OSD and other information.

Technical Specifications:
Performance Parameters:
- Communication distance (outdoor, unobstructed): 100mw, ground distance ≥800 meters; 800mw, ground distance ≥3000 meters (double the air distance). If you use a flat antenna, the distance can be doubled
- Effective radiated power (EIRP): 25mw~800mw adjustable
- Receiving sensitivity: -95dbm±2dbm
- Working frequency: 5G

Physical Parameters:
- Working temperature: -10 to 60℃
- Storage temperature: -20 to 50℃
- Dimensions (with housing, without antenna): Sky end: 71 x 51 x 19mm (LxWxH); Ground end: 105 x 74 x 26mm (LxWxH)
- Weight (including the shell and excluding the weight of the antenna): Sky end: 70g; Ground end: 174g

Hardware Function Support:
- Air terminal working voltage: DC-12V, compatible with 2S~3S, average power consumption 5W, peak power consumption 12W
- Ground terminal working voltage: DC-12V, compatible with 2S~3S, average power consumption 5W, peak power consumption 12W

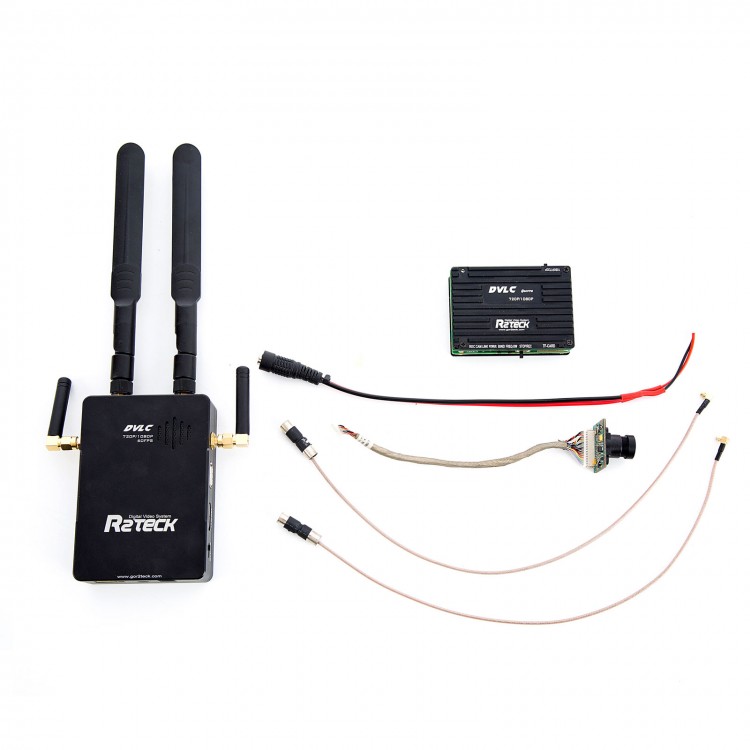

Package Included:
- 1 x Transmitter
- 1 x Transmitter Power Supply 12V Connection Cable
- 1 x Camera
- 2 x Transmitter Antennas
- 2 x Ground End Main Antennas
- 2 x Ground End Mobile Device Antennas
- 1 x Ground End

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
