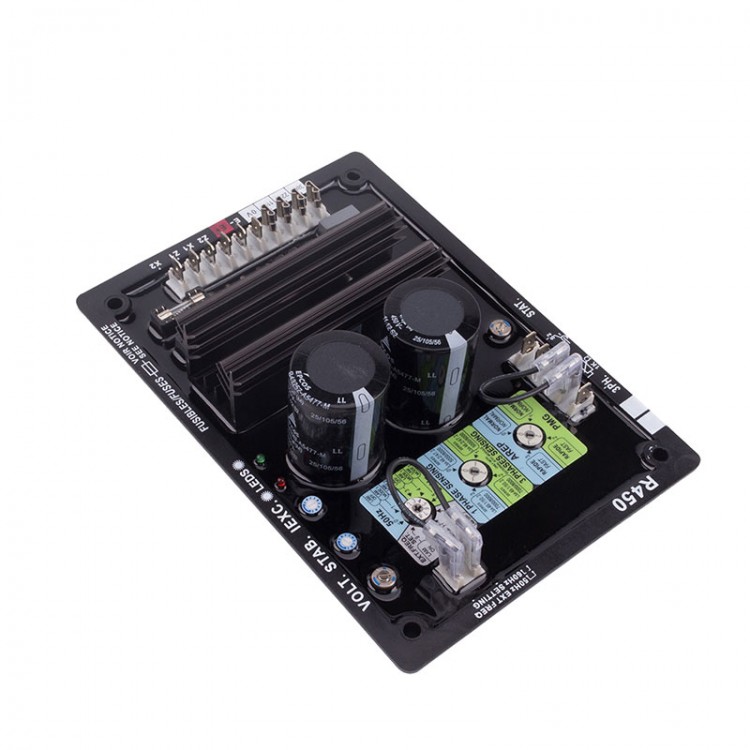

R450 AVR Automatic Voltage Regulator Board For Leroy Somer Stabilizer Alternator Generator Parts
Description:
- R450 is analog Automatic Voltage Regulator with transistors
- For LSA 46.2, 47.2, 49.1 and LSA 50.2 alternators
- For Leroy Somer
- Servo voltage regulator
Applications:
- Standard : for LSA 46.2, 47.2, 49.1 and LSA 50.2 alternators
- Optional : for LSA 42.2, 43.2, 44.2. alternators adapted to excitation systems for SHUNT, AREP or PMG
Main Characteristics:
- Voltage regulation +/- 0.5% at steady state and constant speed
- Control by transistor means that the regulation quality is independant of applied load
- Phase to phase voltage sensing
- Suitable for high levels of vibration and harsh environments
- Integrated "LAM" and " auto adaptative LAM" system to cope with load impacts applied to the engine
- For AREP or PMG excitation with normal or fast response
- Single or three phase voltage sensing with optional module
- Rotating switch facilitating selection
- The R450 is compatible with other modules for Leroy-Somer enabling additional functions
Package Included:
- 1 x R450 AVR
