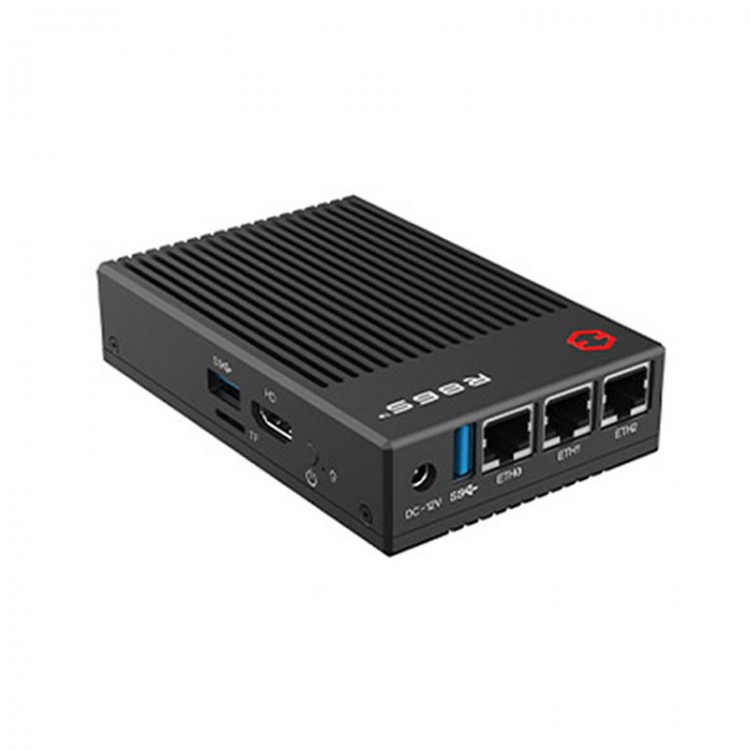

R86S-P2 Industrial Router Optical Port N5105 Multi-network Industrial Controller Mini Computer 10 Gigabit Router
G-series Specification:
- CPU: for Intel Celeron Processor N5105, 4M Cache, up to 2.90GHz, TDP 10W, integrated GPU, support HD 4K
- RAM: 8GB(G1)/16GB(G2/G3)
- Hard drive: 16GB/128GB EMMC
- Interface: Extensible 1 x M.2 2280 PCIE hard drive + 3 x I225-V2.5G network interface + 2 x 10G (SPF+)
- System: Pre-installed operation system
- External interface: 2 x USB3.0 + 1 x HDMI2.0 + 1 x TF + 1 x DC

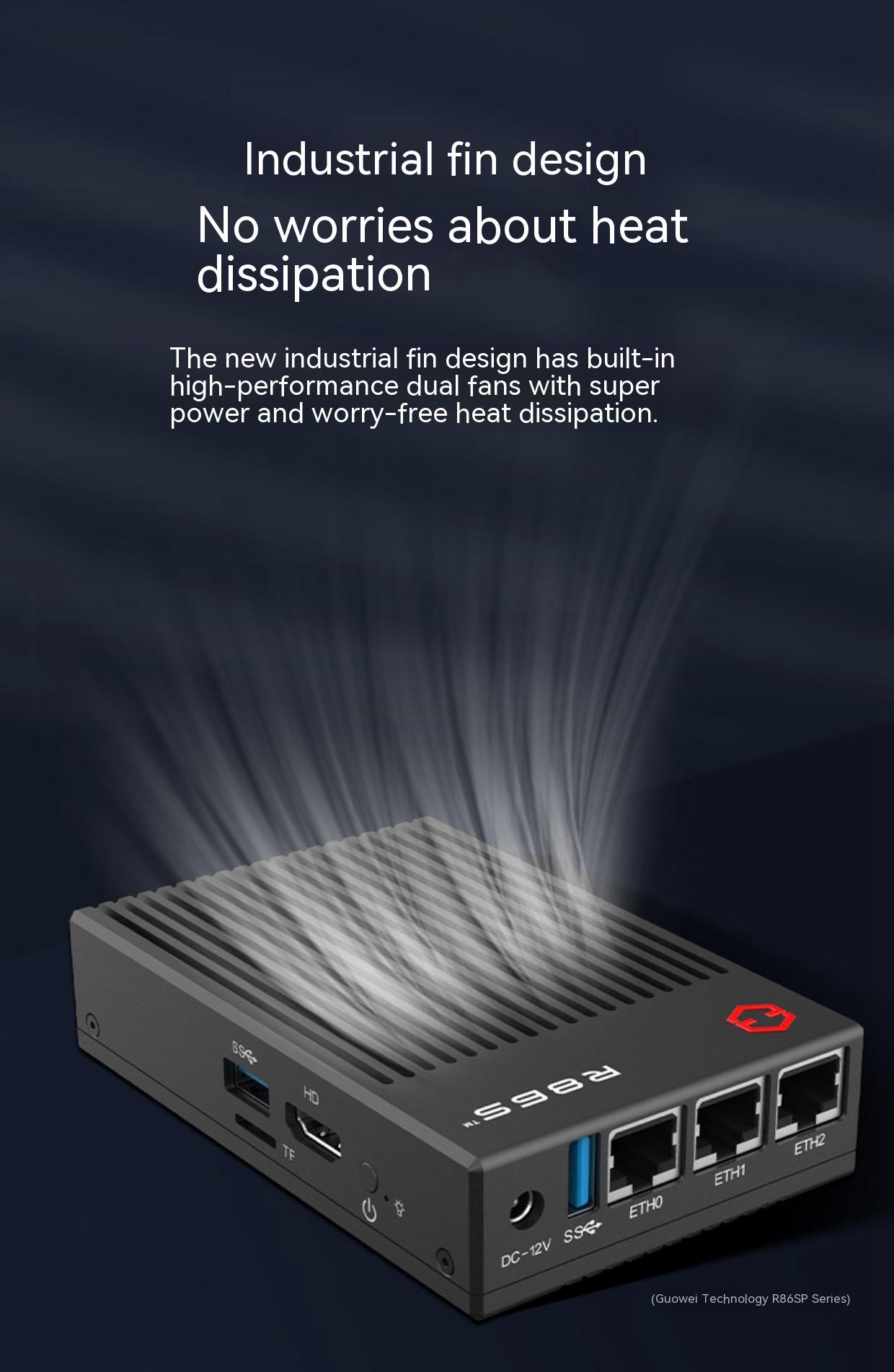

- Dissipation method: Active dissipation (high speed dual fan + dual copper module dissipation)
- Power: DC12V/4A, support automatic start when power on
- Size: 119 x 79 x 41mm
- Weight: 460g
- Accessory: 1 x Power Adapter, 1 x user manual, 1 x certification

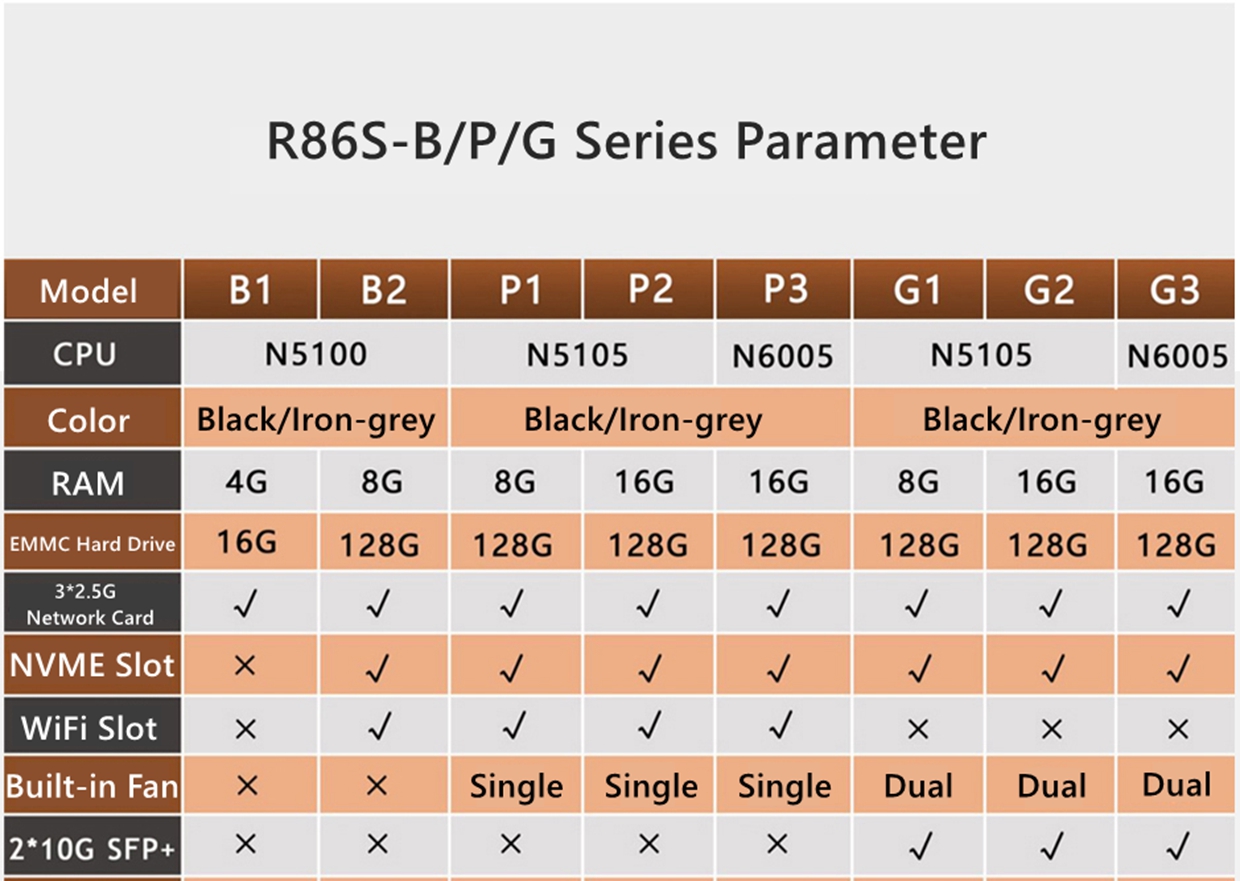

- GW-R86S-G1: N5105 CPU + 8G RAM + 128GB hard drive + extensible 1 x M.2 2280 PCIE hard drive + 2 x 10G optical port (SPF+) + 3 x I225-V2.5G network interface
- GW-R86S-G2: N5105 CPU + 16G RAM + 128GB hard drive + extensible 1 x M.2 2280 PCIE hard drive + 2 x 10G optical port (SPF+) + 3 x I225-V2.5G network interface
- GW-R86S-G3: N6005 CPU + 16G RAM + 128GB hard drive + extensible 1 x M.2 2280 PCIE hard drive + 2 x 10G optical port (SPF+) + 3 x I225-V2.5G network interface

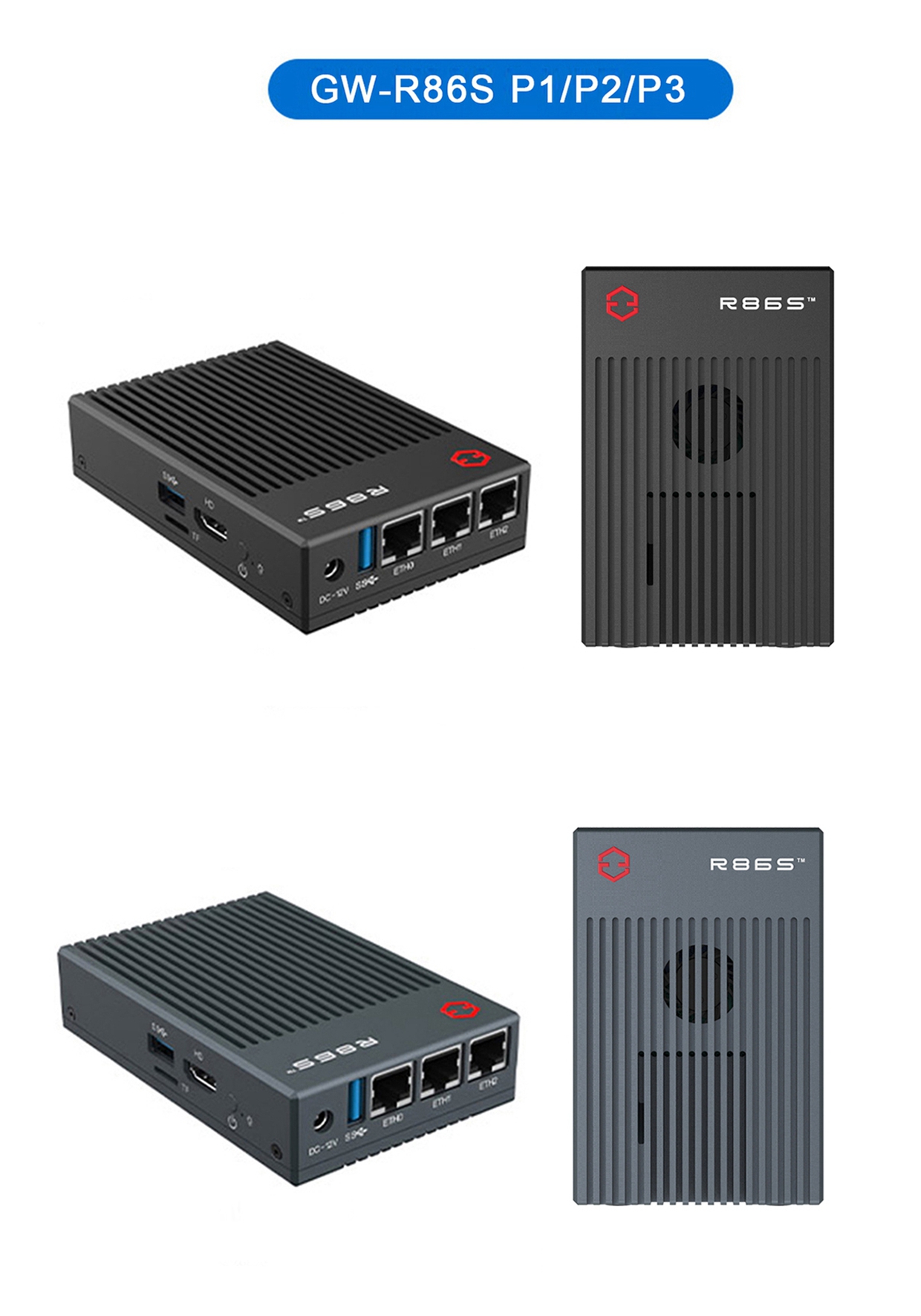

P-series(with fan) Specification:
- CPU: for Intel Celeron Processor N5105, 4M Cache, up to 2.90GHz, TDP 10W; for Intel Pentium Silver N6005 Processor, 4M Cache, up to 3.30GHz, TDP 10W
- Hard Drive: 128GB EMMC
- GW-R86S-P series: 3 x 2.5G I225 network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi slot (P3 is equipped with WiFi 6 + Bluetooth, chip model: for Intel AX201)
- System: Pre-installed system
- External interface: 1 x HDMI2.0, 1 x TF slot, 2 x USB3.0, 1 x DC port
- NVME Size and weight: 119 x 79 x 27.5mm, 360g
- Accessory: 12V Power Adapter, user manual, certification
- GW-R86S-P1: N5105 CPU + 3 x 2.5G network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi card slot + 8GB RAM + 128GB EMMC
- GW-R86S-P2: N5105 CPU + 3 x 2.5G network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi card slot + 16GB RAM + 128GB EMMC
- GW-R86S-P3: N6005 CPU + 3 x 2.5G network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi card slot + 16GB RAM + 128GB EMMC + WiFi 6 + Bluetooth

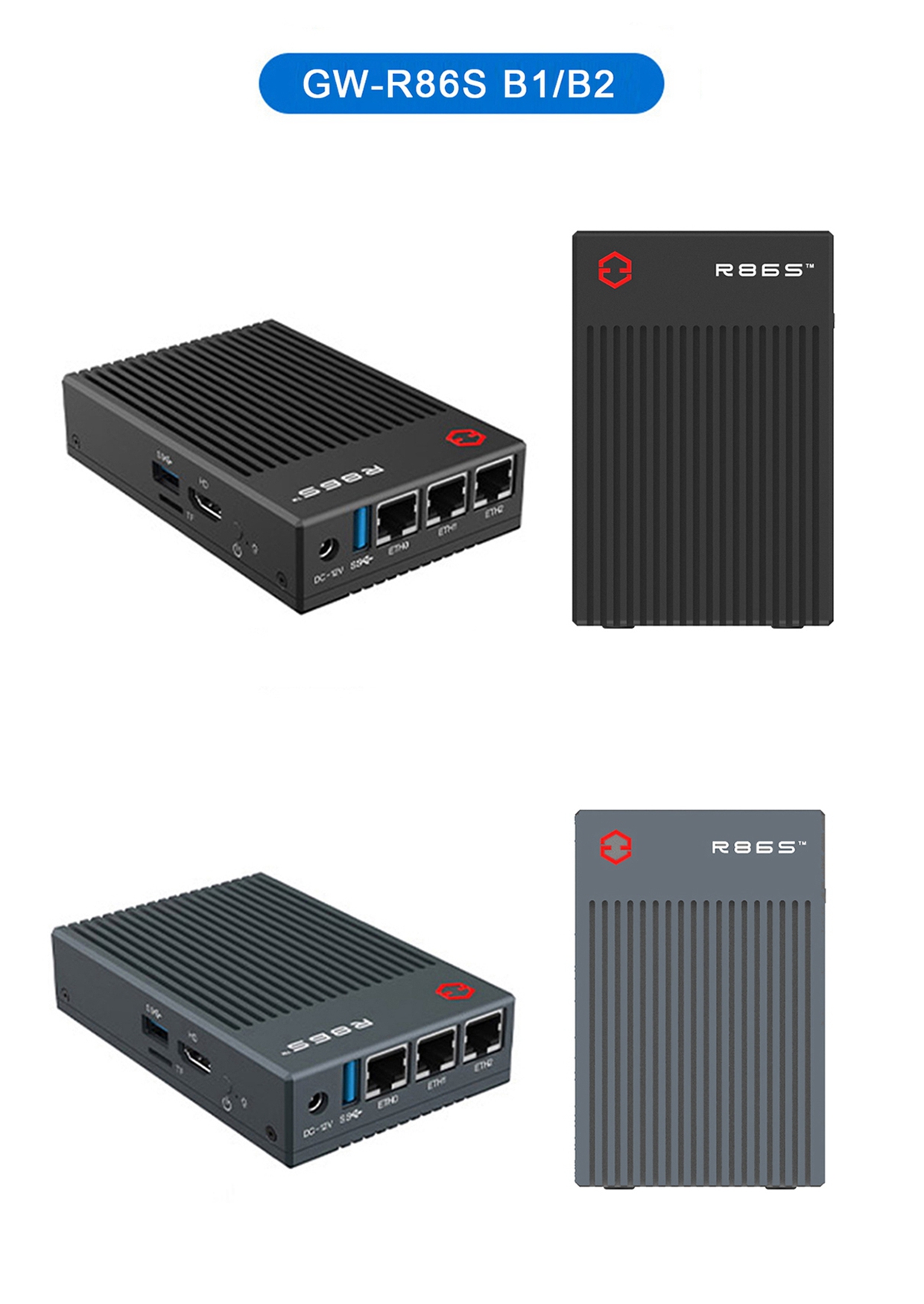

B-series(without fan) Specification:
- CPU: for Intel Celeron Processor N5100, 4M Cache, up to 2.80GHz, TDP 10W; TDP 6W
- Hard Drive: 16GB(B1)/128GB(B2/B3) EMMC
- GW-R86S-P series: 3 x 2.5G I225 network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi slot
- System: Pre-installed system
- External interface: 1 x HDMI2.0, 1 x TF slot, 2 x USB3.0, 1 x DC port
- NVME Size and weight: 119 x 79 x 27.5mm; basic version: 400g; NVME version: 360g
- Accessory: 12V Power Adapter, user manual, certification
- GW-R86S-B1: N5100 CPU without fan + 3 x 2.5G network interface + 4GB RAM + 16GB EMMC
- GW-R86S-B2: N5100 CPU without fan + 3 x 2.5G network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi card slot + 8GB RAM + 128GB EMMC
- GW-R86S-B3: N5100 CPU without fan + 3 x 2.5G network interface + 1 x M.2 hard drive slot + 1 x 2230 WiFi card slot + 16GB RAM + 128GB EMMC
Note:
- The B-series is designed with a low power consumption dustproof seal, which is heavier and suitable for storing in dusty areas. The P/G-series casing has air ducts and a cooling fan.
Package Included:
- 1 x P2 Router
- 1 x Power Adapter
- 1 x User Manual
- 1 x Certification
