R86S-T3 Industrial Router 2.5G Multiple Network Port 10 with N6005 Processor for Industrial Control (16G Memory)

R86S-T3 Industrial Router 2.5G Multiple Network Port 10 with N6005 Processor for Industrial Control (16G Memory)

Specification:
- Model: T3
- CPU: N6005 for Pentium
- CPU parameter:
  Basic frequency: 2.00GHz
  Pulse frequency: 3.3GHz
  TDP: 10W
  4-core 4-thread
- EMMC hard drive: 128G
- NVME card slot: yes
- Memory: 16G, dual channel LPDDR4 x 2933MHz
- Wired network card: 3 x 2.5G (for Intel i226 - V)
- Wireless network card: for Intel Ax 201, WiFi6 + Bluetooth5.2, support 2230 interface
- dissipation fan: yes
- WiFi slot: yes
- 2 x 10G SFP+: no
- AX201 onboard network card: yes

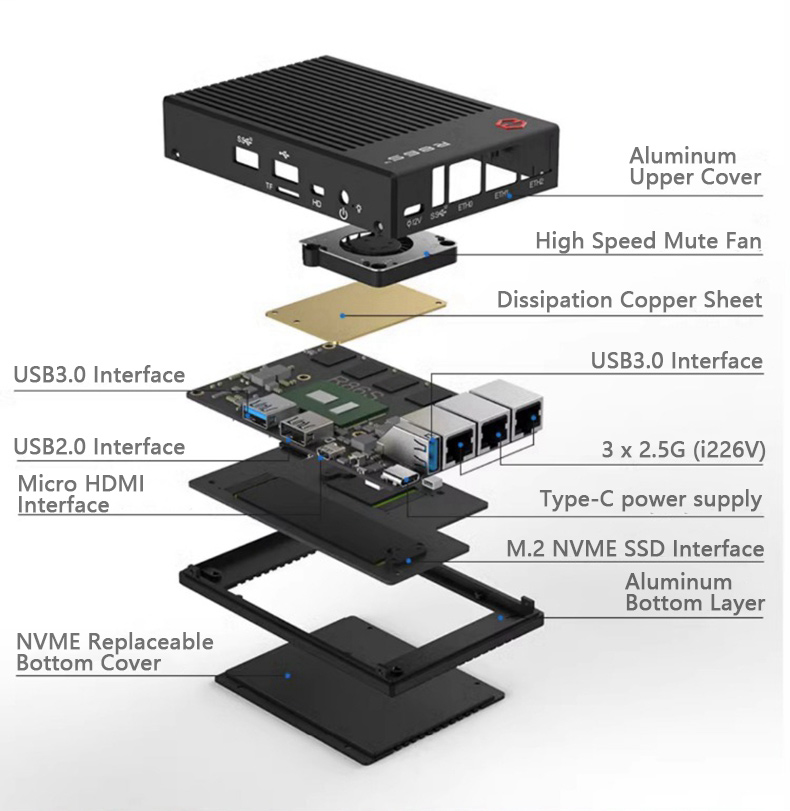

- Internal interface: 1 x M.2 NVMe 2280 (PCIE 3.0x4); 1 x M.2 NGFF wireless network card 2230 (PCIE 3.0x1)
- External interface: Type-C power port, 2 x USB 3.2 Gen2, 1 x USB 2.0, Micro HDMI2.0 (4096 x 2160 at 60Hz), TF card slot (support TF card start)
- Size: 119 x 79 x 27.6mm
- Weight: 340g
- Note: T-series is not equipped with optical port (NVMe interface is PCIe3.0x4 with wireless network card interface)

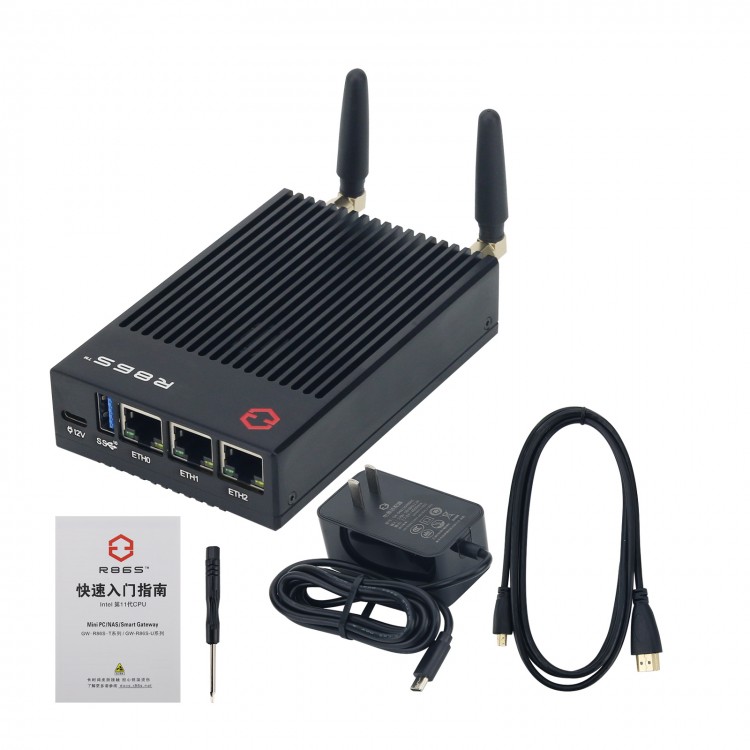

Package Included:
- 1 x Host
- 1 x Power Adapter
- 1 x HDMI Cable
- 1 x Screw Driver
- 1 x User Manual
