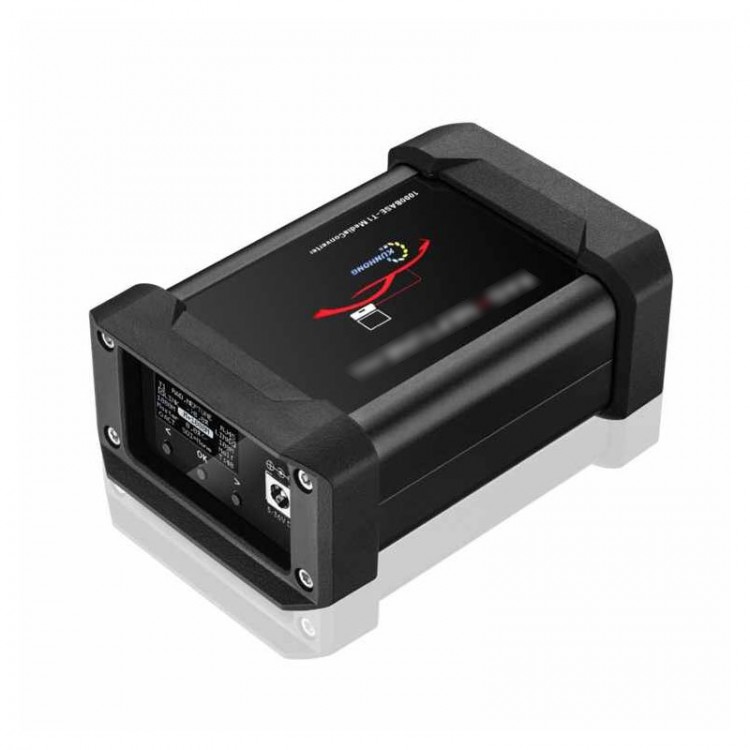

RAD.NEPTUNE-24 PRO Cost-effective 100/1000M Base-T1 Media Converter + Connector for TE MATENET

RAD.NEPTUNE-24 PRO Cost-effective 100/1000M Base-T1 Media Converter + Connector for TE MATENET

Product Features:
RAD. NEPTUNE is an Ethernet physical layer converter. It can bridge the physical layer between the single-pair twisted-pair vehicle Ethernet and the multi-pair twisted-pair traditional Ethernet. Its low cost, compact size, and high performance make it ideal for monitoring, analysis, diagnostics, and other applications in automotive Ethernet environments.

Technical Specifications (RAD.NEPTUNE-24 PRO):
- Supports automotive two-wire Ethernet 1000/100BASE-T1 physical layer
- Supports standard Ethernet 1000/100BASE-TX (RJ45 interface)
- Maximum transmission rate: 1000Mb/s
- 1000BASE-T1 maximum transmission distance: 30m+ (Normal unshielded twisted pair)
- 100BASE-T1 maximum transmission distance: 50m+ (ordinary unshielded twisted pair)
- Supports automatic MDI polarity switching
- Supports legacy mode
- Supports PC-based software control and provides software programming interface
- Enhanced interface protection for laboratory and mass production test applications
- Supply voltage: DC-36V (5V-36V)
- Maximum power consumption: 2.5W

Application Scenarios:
- R&D and debugging of automotive Ethernet equipment
- Programming and testing of mass production of in-vehicle modules
- Automotive maintenance and after-sales: Fault diagnosis, ECU/gateway module flashing and upgrade

Interface Specifications:
RJ45 Legacy Ethernet Interface:
- Green indicator light: The indicator light stays on - 100M mode LinkUp. The indicator flashes - 100M mode activity.
- Yellow indicator light: The indicator stays on - 1000M mode LinkUp. The indicator flashes - 1000M mode activity.

USB Type-C communication Interface:
- Connected to PC software to control the converter, and open programming interface
- Can be powered via USB

2-Wire Automotive Ethernet-T1 Connector:
- M12 aviation plug interface is adopted.
- It can be connected to any automotive Ethernet plug

Advantages:
1. DIP switch + indicator lights

2. Display UI + button design
- Professional UI+ firmware design
- Easy-to-use human-machine interaction
- Intuitive information display
- It supports multi-level menus and has comprehensive functions
- Firmware upgrades are not scheduled to take place

3. Extra-large area alloy radiator
- The "sandwich" construction facilitates quick heat dissipation. Under the same conditions, its temperature rise is 15°C+ lower than that of competitors

4. USB driver direct connection
- Dedicated driver makes it convenient and reliable to use
- The software is comprehensive and it is smooth to use
- Firmware updates are supported
- PC software with open source C++ source code
- Python control examples are provided

5. Replaceable T1 connector
- Replaceable connectors: Compatible with a variety of scenarios
- Connectors can be purchased separately, which is cost-effective
- The threaded aviation plug interface makes the connection secure and reliable
- No branching structure, excellent signal quality

The following are the basic test requirements for this product:
- Full bandwidth test in 1000M/100M mode
- 7*24h aging test
- Maximum communication distance test in 1000M/100M mode
- Interface 4KV anti-static test

Package Included:
- 1 x T1 Media Converter
- 1 x Connector for TE MATENET

Packaging Details:
- Weight: 0.85kg

Note:
- Without mounting holes.
