Radioberry V2.0 SDR Radio Card + 7-inch Capacitive Touch Screen +32G Memory Card + Development Board for Raspberry Pi 4B

Radioberry V2.0 SDR Radio Card + 7-inch Capacitive Touch Screen +32G Memory Card + Development Board for Raspberry Pi 4B

Description:
- For Raspberry Pi 4B has a 64 bit quad core processor running at 1.5GHz; Dual display screen with 4K resolution that supports up to 60fps refresh rate; Provide four memory options: 1GB/2GB/4GB/8GB; Onboard 2.4/5.0GHz dual band wireless WiFi and 5.0BLE low-power Bluetooth; 1 Gigabit Ethernet port; 2 USB 3.0 ports; 2 USB 2.0 ports; 1 5V3A power interface.
- The radioberry is actual a radio card (raspberry pi hat), which can be plugged into a raspberry pi, forming a Software Defined Radio (SDR).
- The radio card uses an Analog Devices AD9866 which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30MHz.
- The radio card adopts for Intel Cyclone 10CL016 FPGA. The firmware will be loaded via the raspberry pi.
- Power supply for the radio card is provided by the raspberry pi.

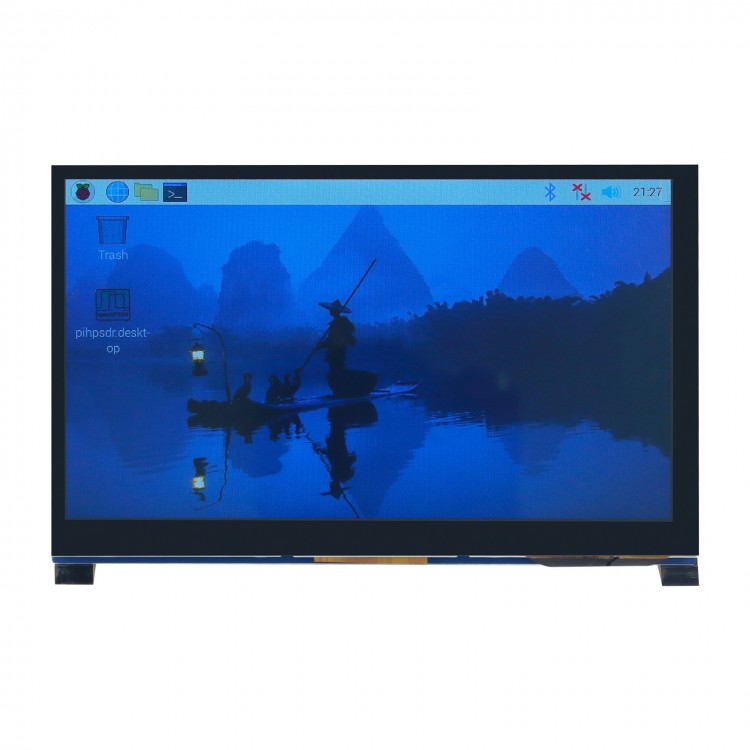

- This screen is suitable for raspberry pi MIPI DSI interface (motherboard identification: display / 15pin 1.0mm spacing), can not be used for computer host or raspberry pi motherboard without MIPI DSI interface (such as zero), and can not be suitable for other chip motherboards.
- Raspberry pi MIPI DSI interface outputs directly, plug and play, without installing driver.
- Without separate power supply, touch + Display + power supply are all solved by one flexible cable.
- Support raspbian multi touch; Support Ubuntu / Kali / win10 lot single touch; Retropi support.
- 800x480 resolution display, 7-inch TN optional.
- Support PWM backlight brightness adjustment to adapt to different use environments (backlight adjustment buttons have been added in the whole series).
- Please connect or disconnect the cable after the raspberry pi is powered off, otherwise the display and raspberry pi may be damaged!

For Raspberry Pi 4B Specification:
- Processor: 64-bit 1.5GHz quad core
- Running memory: 1GB
- WiFi: 802.11n wireless 2.4GHz / 5GHz dual frequency WiFi
- Wireless Bluetooth: Bluetooth 5.0
- Ethernet network port: Gigabit Ethernet
- USB terminal: 2 x USB 3.0, 2 x USB 2.0
- GPIO numbers: 40 GPIO pins
- Audio and video interface: 2 x video and audio Micro HDMI-compatible port, support up to 4Kp60. MIPI DSI display port, MIPI CSI camera port, stereo audio and composite video port.
- Multi-media support:
  H.265: 4Kp60 decoding
  H.264: 1080p60 decoding
  1080p30 encoding OpenGL ES: 3.0 graphic
- SD card support: Micro SD card slot
- Power supply method: USB Type-C
- POE function: support POE function (butt the module is not included, please prepare it by yourself)
- Input power: 5V 3A
- Resolution support: up to 4K, support double display screen
- Working environment: 0 - 50℃

Reference Video:
- https://www.youtube.com/watch?v=kt7jA0T12E8

More Details:
- https://github.com/pa3gsb/Radioberry-2.x/wiki/Overview

Package Included:
- 1 x Radio Card
- 1 x 7-inch Touch Screen
- 1 x for Raspberry Pi 4B Kit
- 1 x 32GB Memory Card
