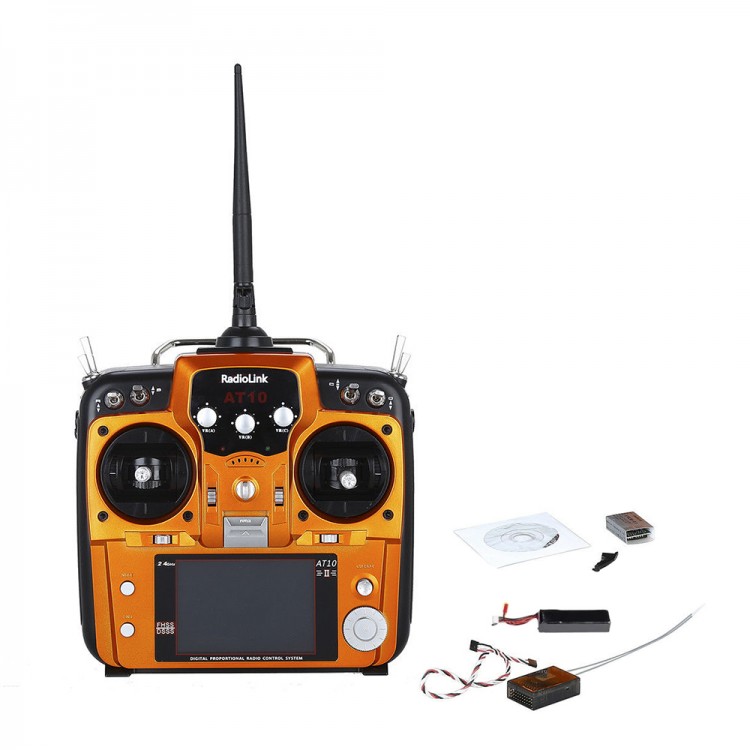

RadioLink AT10 II 2.4G 12CH RC Transmitter + R12DS Receiver with Battery for Drone Quadcopter
Specification:
Size : AT10 II: 180*95*220mm, R10DS: 50*32*150mm
Weight : 0.95kg
Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Modulation mode : QPSK
Channel bandwidth : 5.0 MHz
Spread spectrum : DSSS & FHSS
Adjacent channel rejection: >38dbm
Transmitter power : < 100mW (20dbm)
Operating current : < 105mA
Operating voltage : 7.4V~15V
Control distance : >4000m , the actual control distance depends on the flying environment
Channel : 12 channels, 5-12 channels can be customized
Compatible model: helicopter, fixed wings, glider, car, boat ,robot, etc. all RC models
Signal output: PWM & SBUS & PPM
Low pressure alarm: yes, multiple alarms, the alarm value can be set by yourself
Model storage: 15 sets of model data storage
Simulator mode: under the simulator mode the transmitter action turns off, change to power saving mode
Screen : 3.5 inches 16 digits colorful screen , 320*480 pixels
Support receivers : R12DS (standard config), R12DSM, R9DS, R6DS , R6DSM
Package List:
-1 x AT10 II Transmitter
-1 x R12DS Receiver
-1 x Battery
