Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $135.74 | $132.97 | $128.81 | $123.27 | Contact US |

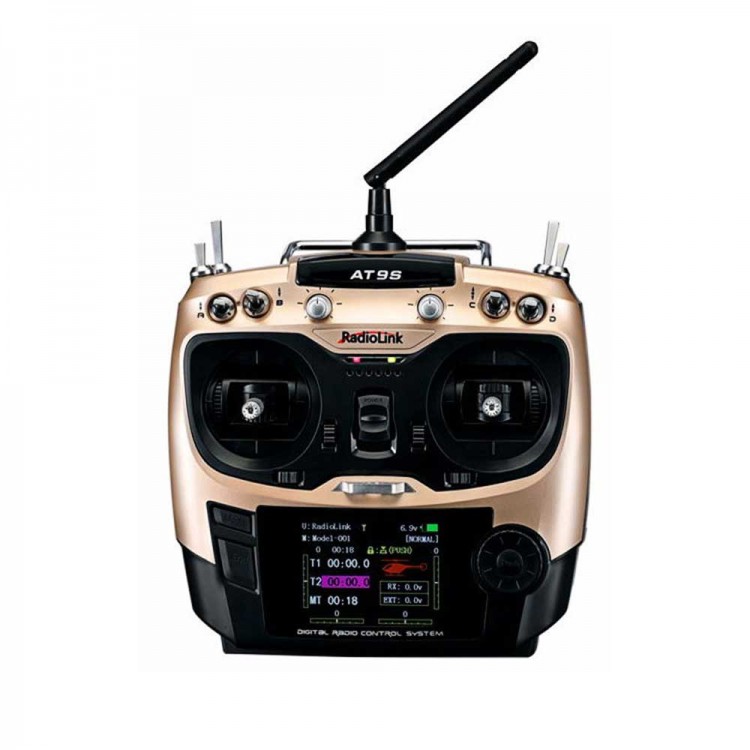

Radiolink AT9S R9DS Radio Remote Control System DSSS FHSS 2.4G 9CH Transmitter Receiver for Quadcopter Helicopter
Description:
- AT9S Size: 183 * 100 * 193mm; R9DS Size: 41 * 23 * 14mm
- Weight: 0.88kg
- Transmission frequency: 2.4GHz ISM band (2400MHz ~ 2483.5MHz)
- Modulation modes: QPSK
- Channel bandwidth: 5.0MHz
- Spread spectrum: DSSS & FHSS
- Adjacent channel rejection ratio:> 38dbm
- Transmit power: <100mW (20dbm)
- Working current: <90mA
- Working voltage: 7.4 ~ 18.0V
- Remote distance: 900 m ground, air 1.5 km (actual distance and flight control environment)
- Number of channels: Channel 10, Channel 5 above can be customized
- Support Model: includes all 120 degrees, 90 degrees swashplate helicopter, all fixed-wing, rotary-wing gliders
- Simulator mode: you can set the simulator mode, in this mode the RF transmitter shutdown, enter a power saving mode
- Display: 2.8-inch 16-bit true color screen with a resolution of 240 × 320 pixels
- Support the type of receiver: R9DS (standard), R10DS,R6DS
Mode (optional, please leave us a message about the one you want):
- Mode 1: right Hand throttle
- Mode 2: Left Hand throttle
Package Included:
- 1 x Radiolink AT9S 9ch transmitter
- 1 x Radiolink R9DS Receiver
- 1 x Manual
