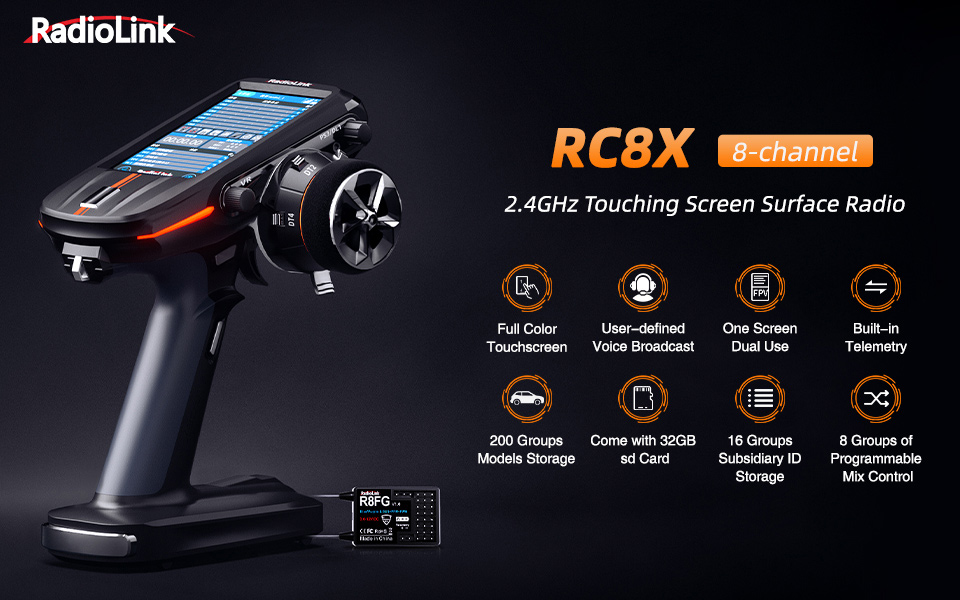

Radiolink RC8X 1968.5FT 2.4G 8CH RC Receiver Transmitter 4.3" Touch Screen for Crawler Drifting Boat

Radiolink RC8X 1968.5FT 2.4G 8CH RC Receiver Transmitter 4.3" Touch Screen for Crawler Drifting Boat

Upgrades:
- 8 Channels
- 4.3 Inch Full Color LCD Touching Screen
- Support multi-language, including English, Russian, Deutsch, Spanish, French, Japanese, Simplified Chinese and Traditional Chinese
- Support voice customization on all functions

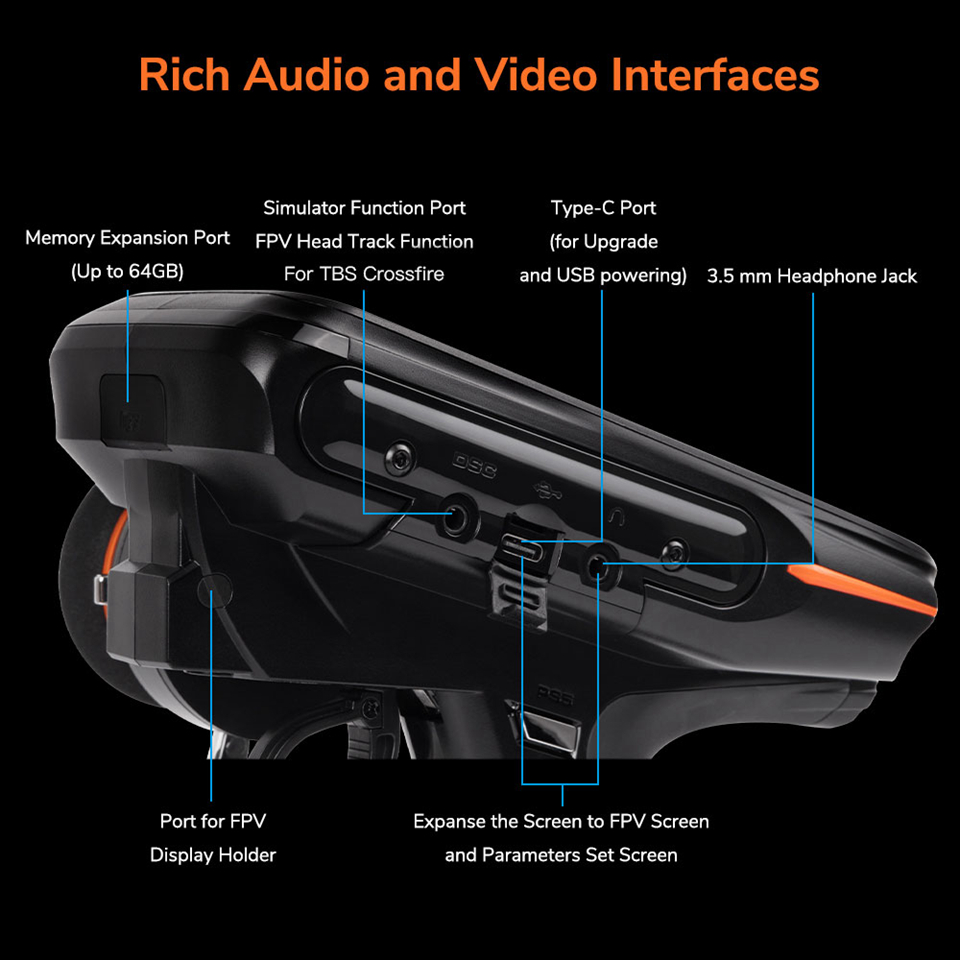

- Rich Audio and Video Interfaces
- One Screen Dual Use
- 200 Groups Models Storage
- 8 Groups Programmable Mix Control
- 16 Groups ID seed
- Compatible all previous receivers including R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM and R4F

Features:
- Multi-language Menu: Support English, Russian, Deutsch, Spanish, French, Japanese, Simplified Chinese and Traditional Chinese. Easy to understand the menu.

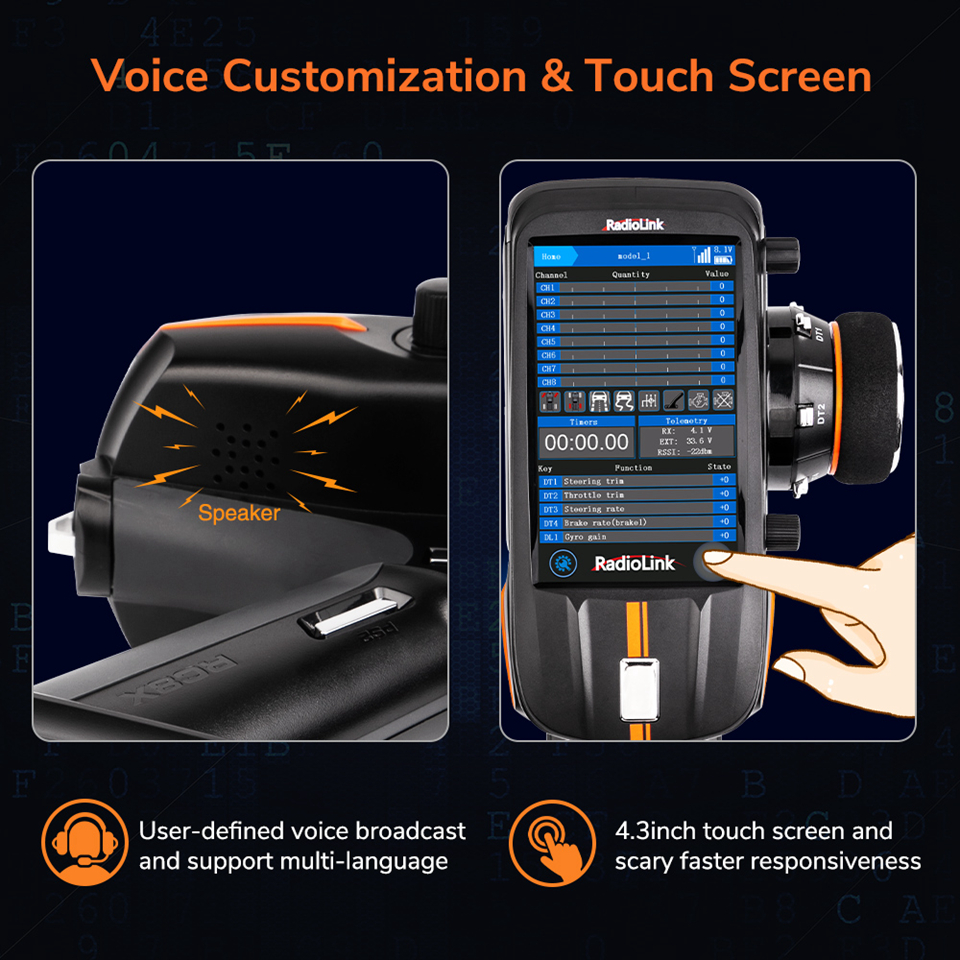

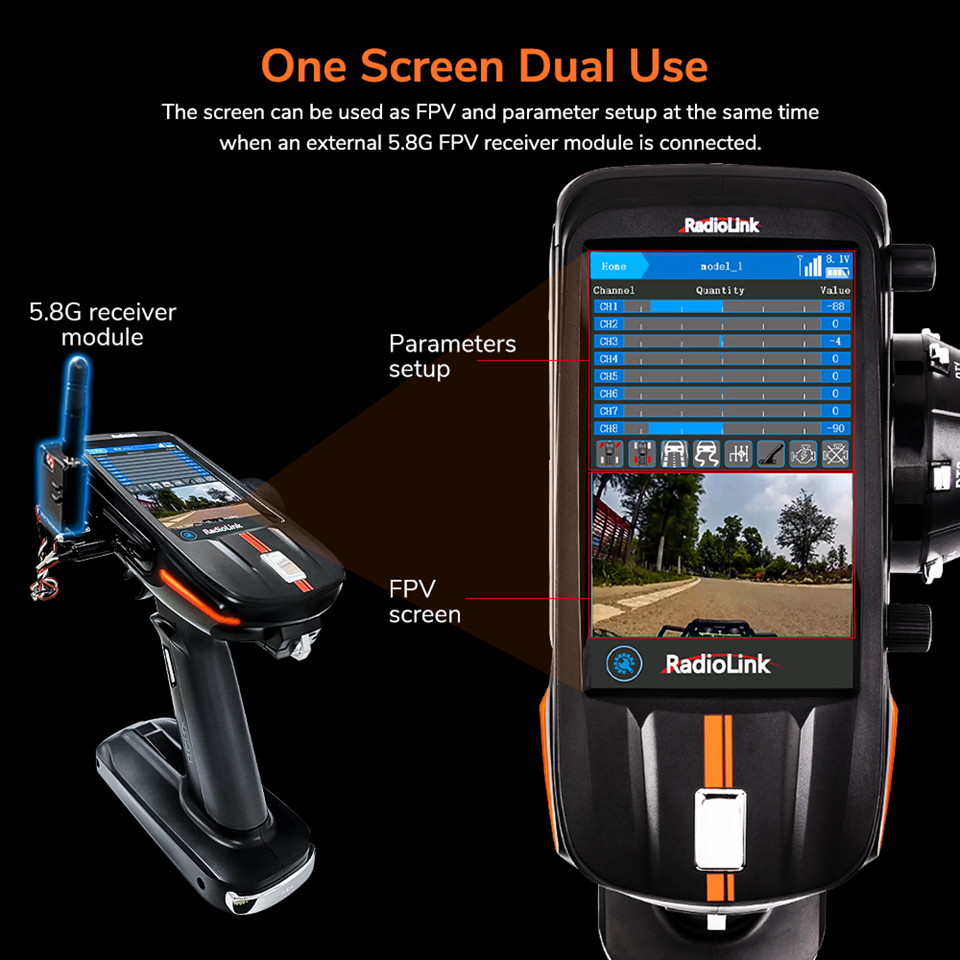

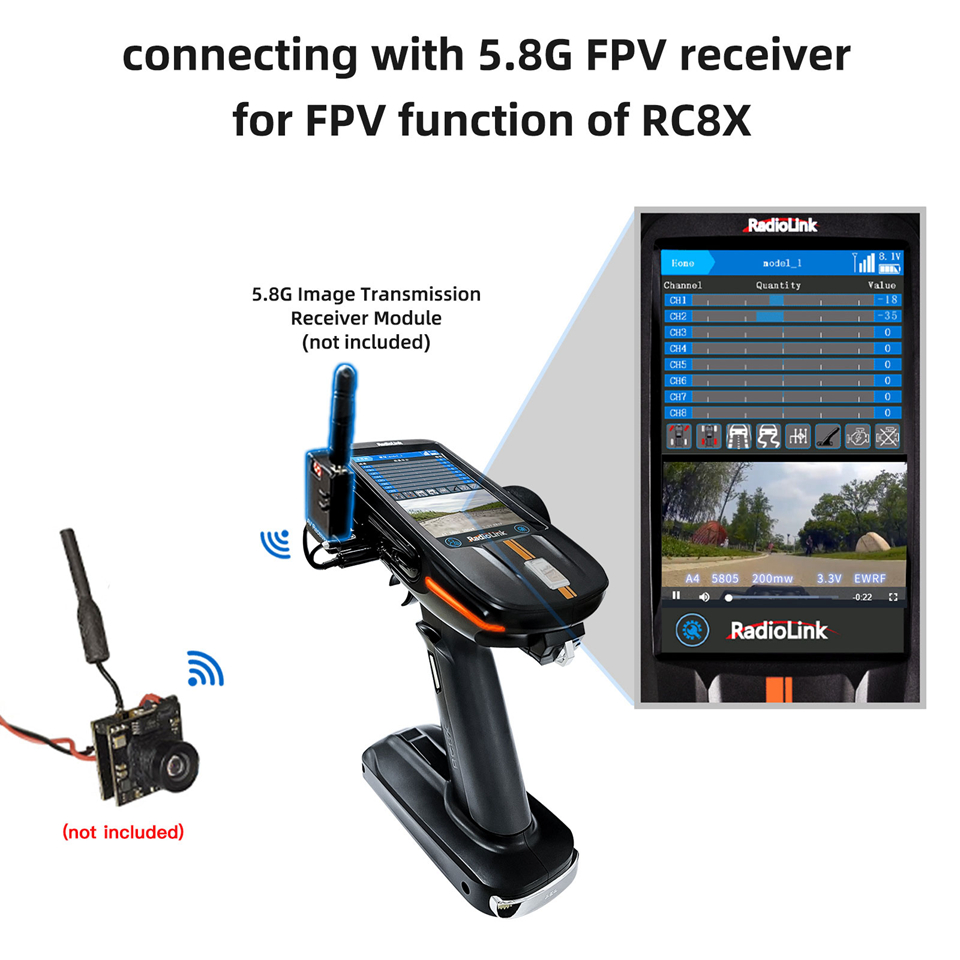

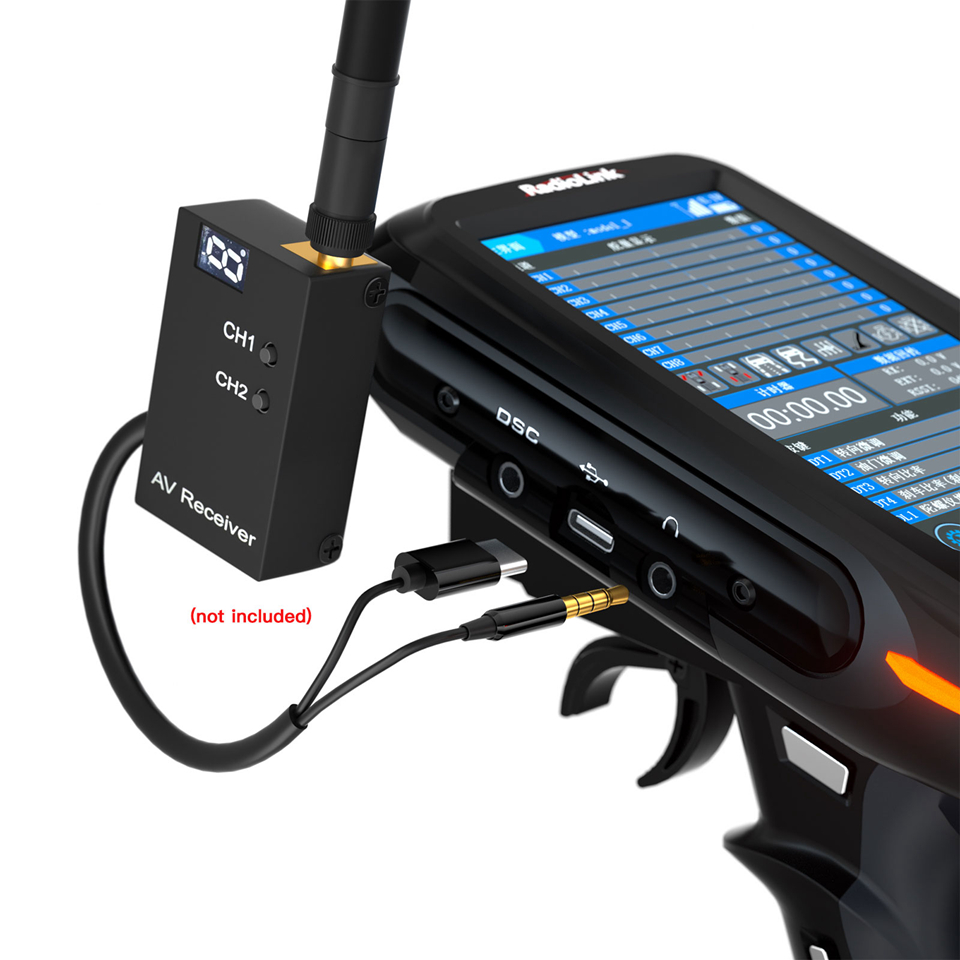

- Full Color LCD Touch Screen : 4.3-inch 800*480 dot matrix capacitive touching screen with ultra-narrow frame and fast scroll without lag. Scary faster screen responsiveness in switching function pages, provide you mobile phone-level screen refresh experience. Besides, the screen can be used for parameter setup and FPV display at the same time when an external 5.8G receiver module is connected, easily realize dual use on one screen.

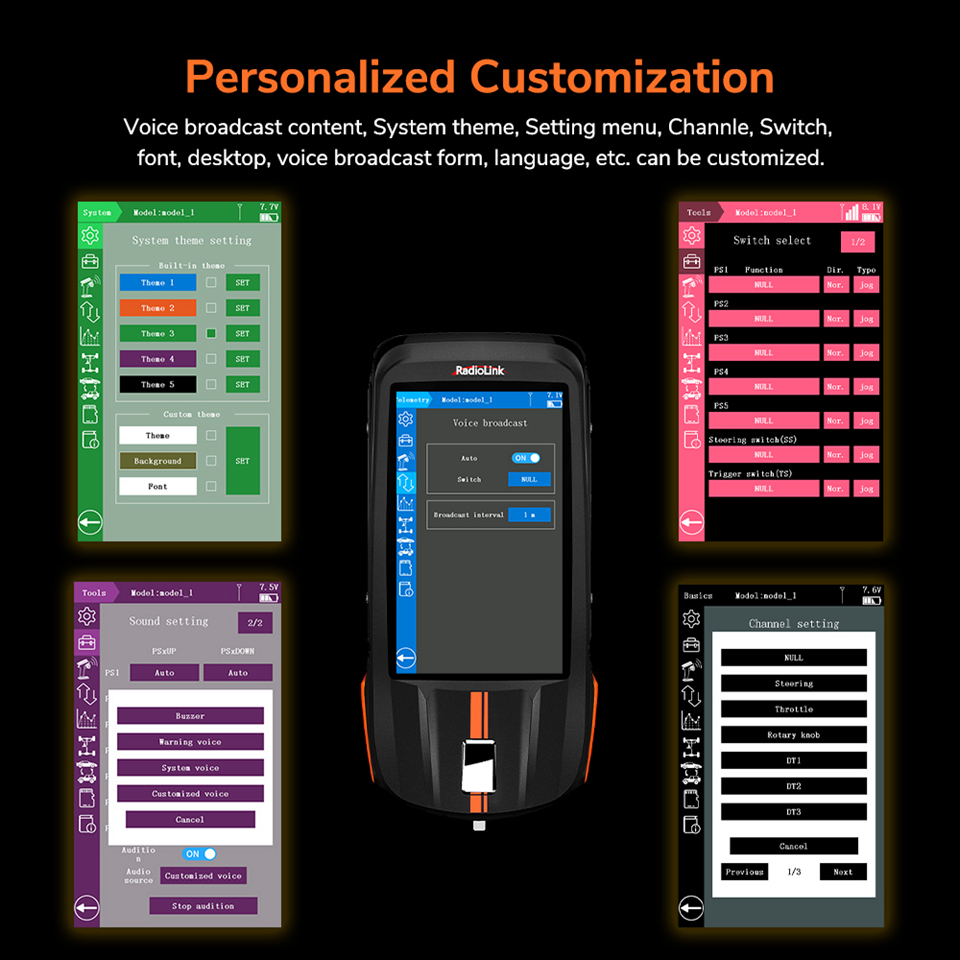

- Personalized Custom Functions: Support custom voice broadcast content, voice broadcast form, setting menu, font, the color of background and font, desktop, system theme, function button, etc; you can achieve a totally unique 8 channels transmitter without one code to modify.
- 8 Channels for Multiple Types of Models: With steering curve, throttle curve, brake curve, etc, RC8X is an ideal partner for all types RC cars and boats in the market,including single-engine and twin-engine models such as Crawlers, Tanks, Trucks, Caterpillars, Basher, Drifting, Bait Boat, etc. Pseudo random algorithm FHSS communication technology makes the control distance up to 600 meters on the ground.
- Multiple Programmable Mix Control: Support 9 kinds of mixing functions including 4WS, 4WD, tank mixing, tilt mixing, CPS mixing etc. It has 8 groups programmable mix control and any 2 channels can be easily set. You could realize every precise driving operation under different complex terrains.
- 200 Models Storage & 16 ID Seed: RC8X is capable of an arbitrary ID designation among a maximum of 16 binding receivers and can storage a maximum of 200 groups models parameters saved.A model memory with different setups can be created by using the model copy function.

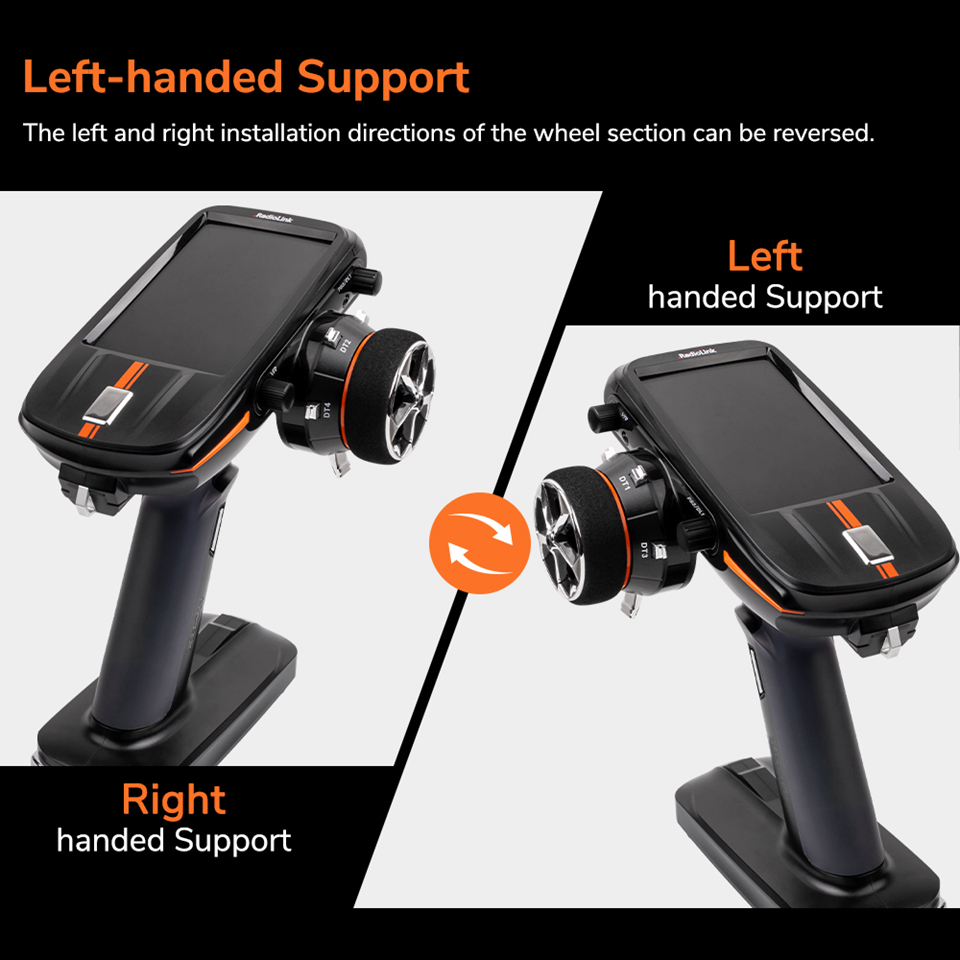

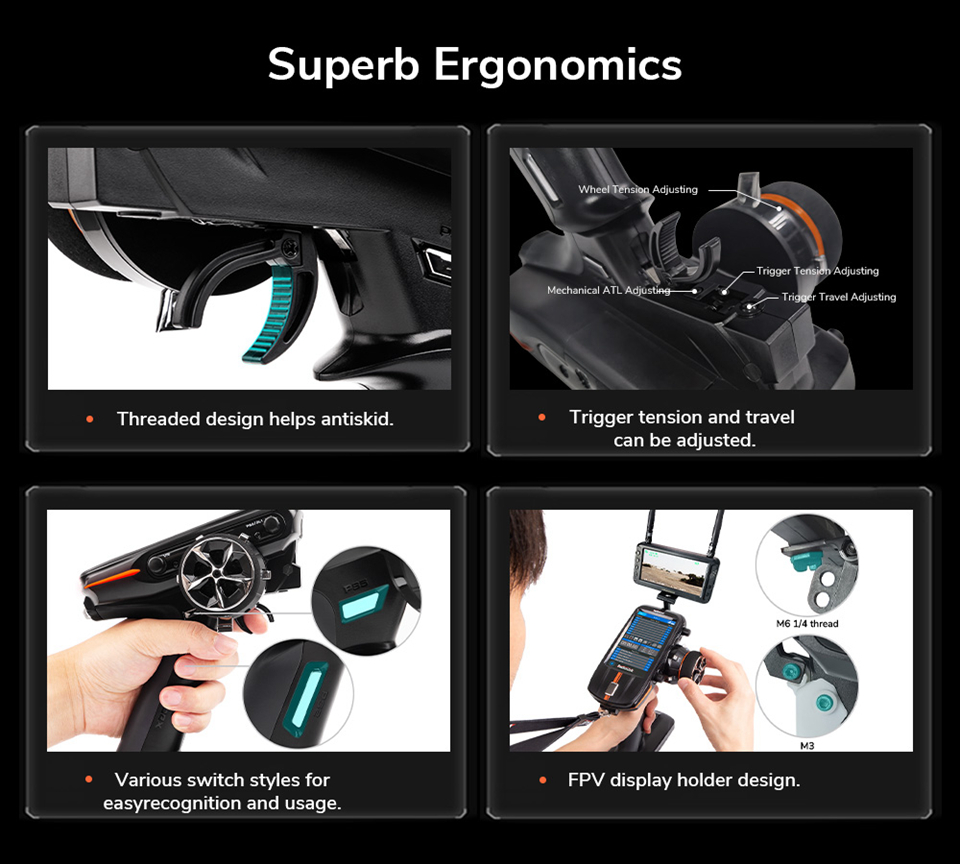

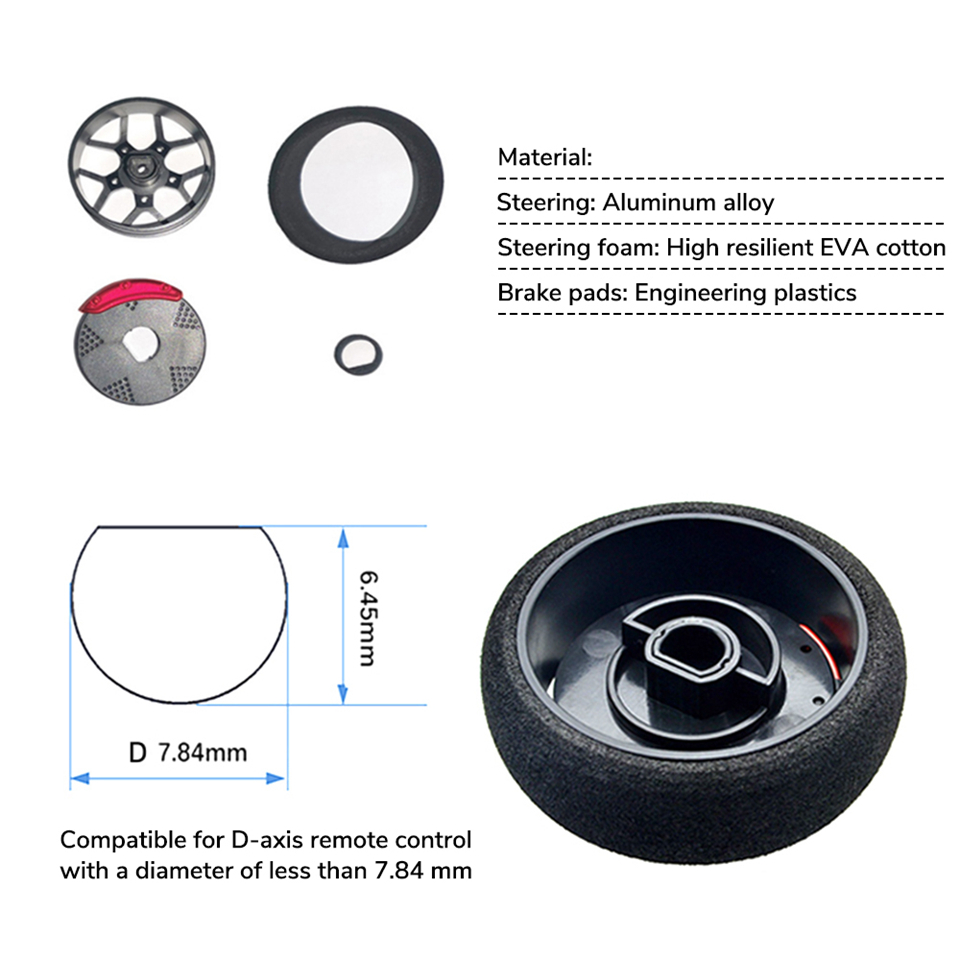

- Ergonomically Designed for Hours of Fun: The steering wheel support left and right installation to meet different usage habits. Rational throttle trigger length and tension, make easy and accurate for throttle adjustment.User-friendly design for each operation and handling.

RC8X Specifications:
- Model Type: RC8X
- Channels: 8 channels
- Screen: 4.3 inches, 800*480 dot matrix, full-color, capacitive LCD touch screen
- Working Voltage:7~15V DC
- Working Current: 290mA±10mA at 8.4V (the LCD screen light on); 200mA±10mA@8.4V(the LCD screen light off)
- Model Storage: 200 models memory
- Control Range: 600m/1968.5ft on ground
- Program Mix: 9 groups program mixes
- ID Seed: 16 groups
- Voice Broadcast: Support, and all the operating can set alarm with voice broadcast, buzzer, or vibration
- Menu Customized: Setting Menu, font, desktop, system theme, etc.
- Low Voltage Alarm: Low transmitter voltage, low receiver voltage or low RSSI alarm can be customized
- CRSF Protocol: for TBS Crossfire
- FPV Head Tracking Function: Support
- Training Function: Support
- Simulator: Support
- Headphone: Support, 3.5 mm Jack
- Extended Memory: Up to 64GB
- Language: Chinese, English and others
- Upgrade: USB online upgrade
- Transmission Power: <20dBm
- Channel Resolution: 4096 with regular jitter of 0.5us
- Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
- Modulation Mode: GFSK
- Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Applicable Model: RC Car(Including Crawlers/Tanks/Caterpillars)/Boat/Robot
- Compatible Receiver: R8FG (Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM and R4F

R8FG Specifications:
- Channel: 8 channels
- Operating Voltage: 3-12V
- Operating Current: 30mA
- Signals: PWM/ SBUS & PWM/ PPM & PWM
- Telemetry: Real-time built-in telemetry, RSSI, and receiver voltage
- Gyro: Receiver with gyro integrated, customizable gyro sensitivity
- Water Splash Proof: Yes. The waterproof grade is IPX4
- Control Distance: 600m/1968.5ft
- Weight: 10.5g (0.37oz)

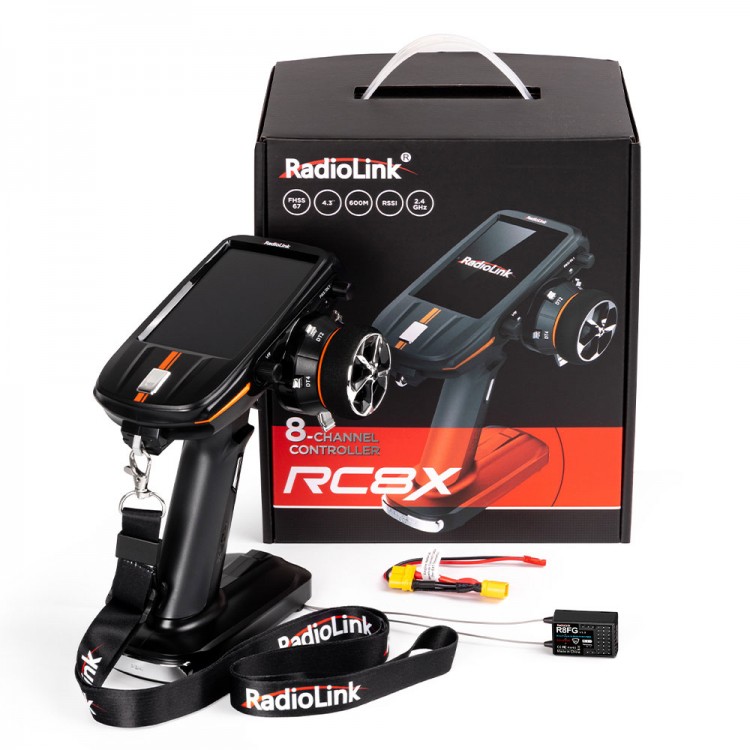

Package Included:
- 1 x RC8X transmitter
- 1 x 32GB TF card
- 1 x R8FG receiver
- 1 x R4FGM mini receiver

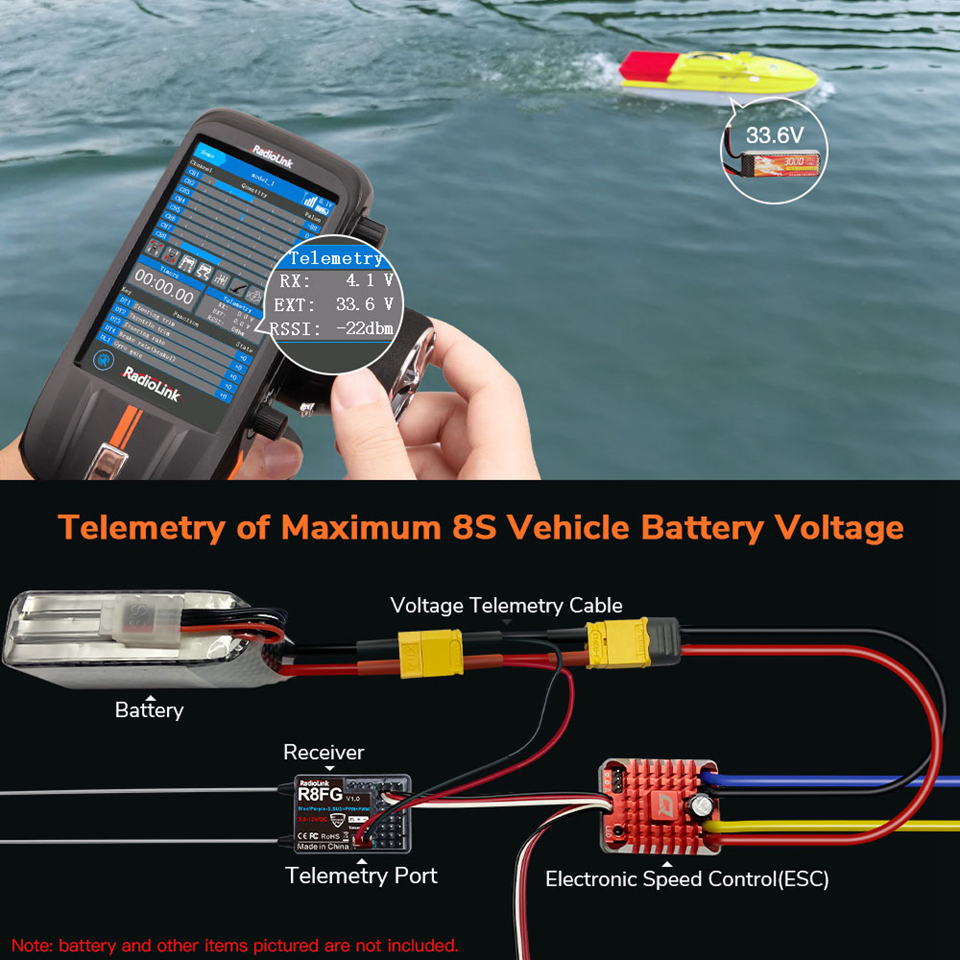

- 1 x XT60 telemetry cable
- 1 x Lanyard
- 1 x Type-C cable for upgrade
- 1 x Throttle trigger (spare)
- 2 x Hex wrenches (1.5 & 2.5mm)
- 1 x User manual

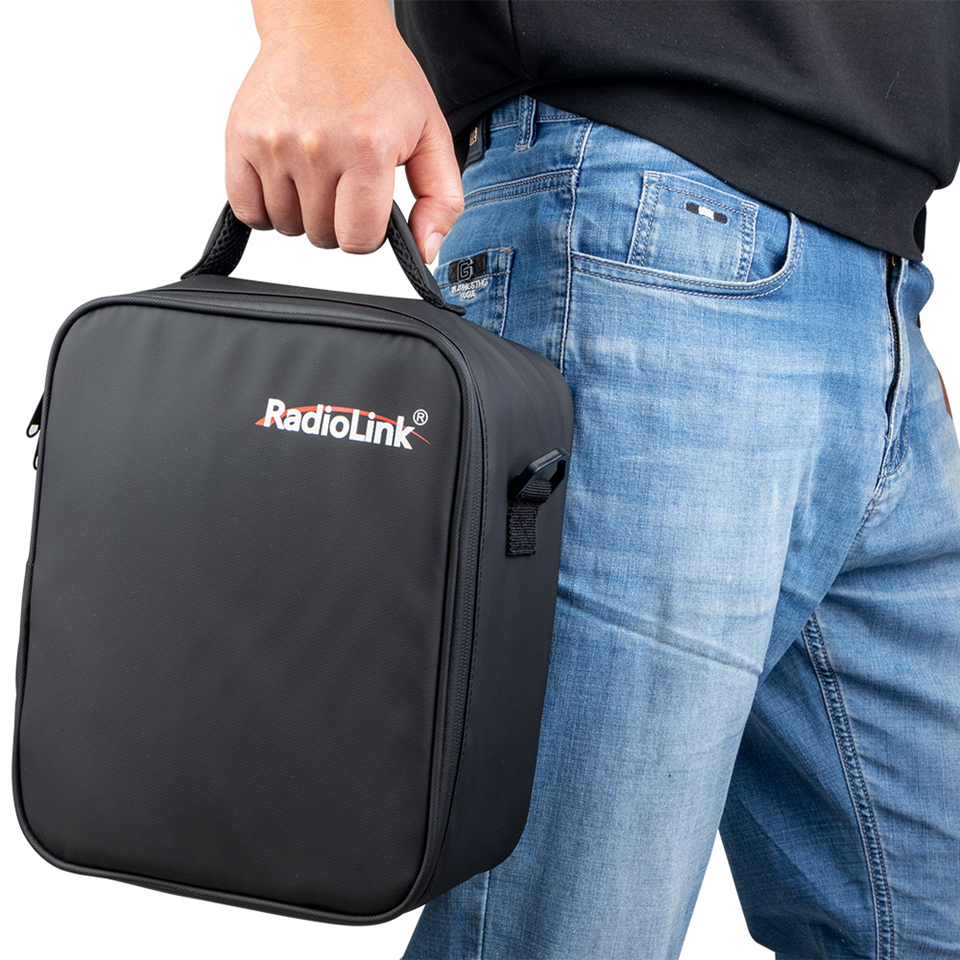

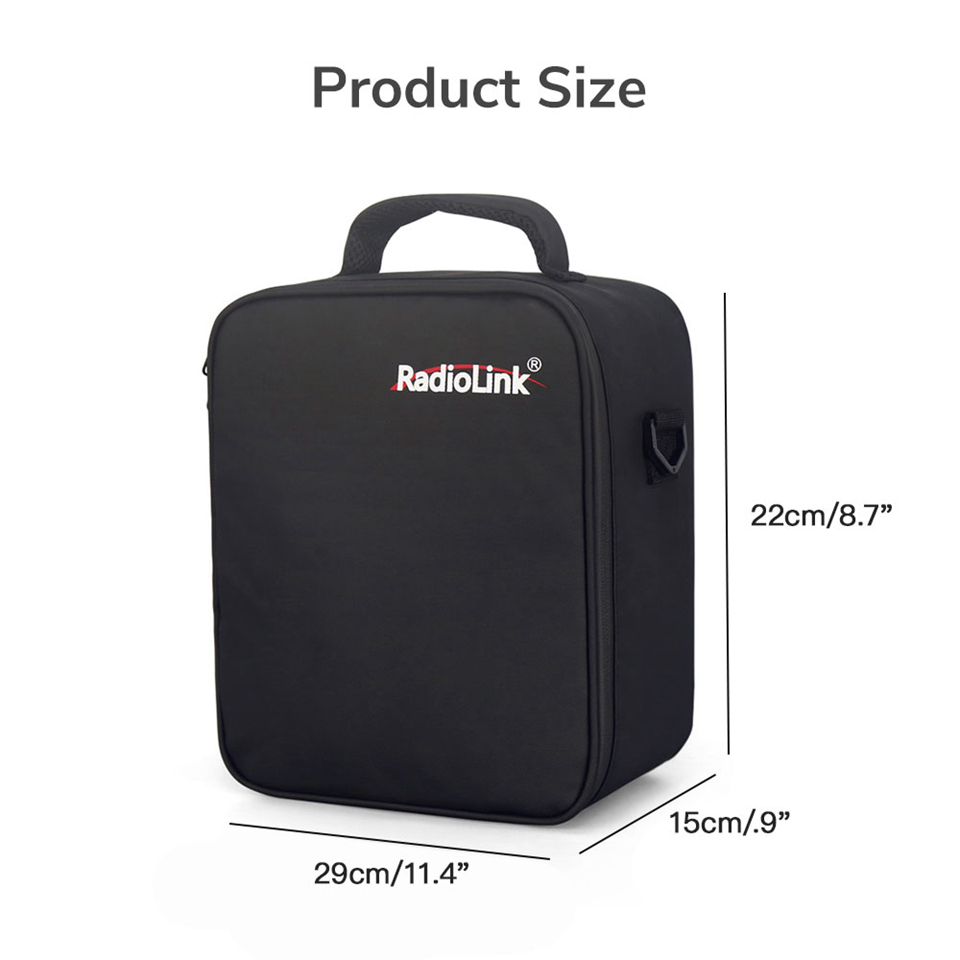

- 1 x Carrying bag

Note:
- The screen works as a display for parameters by default.

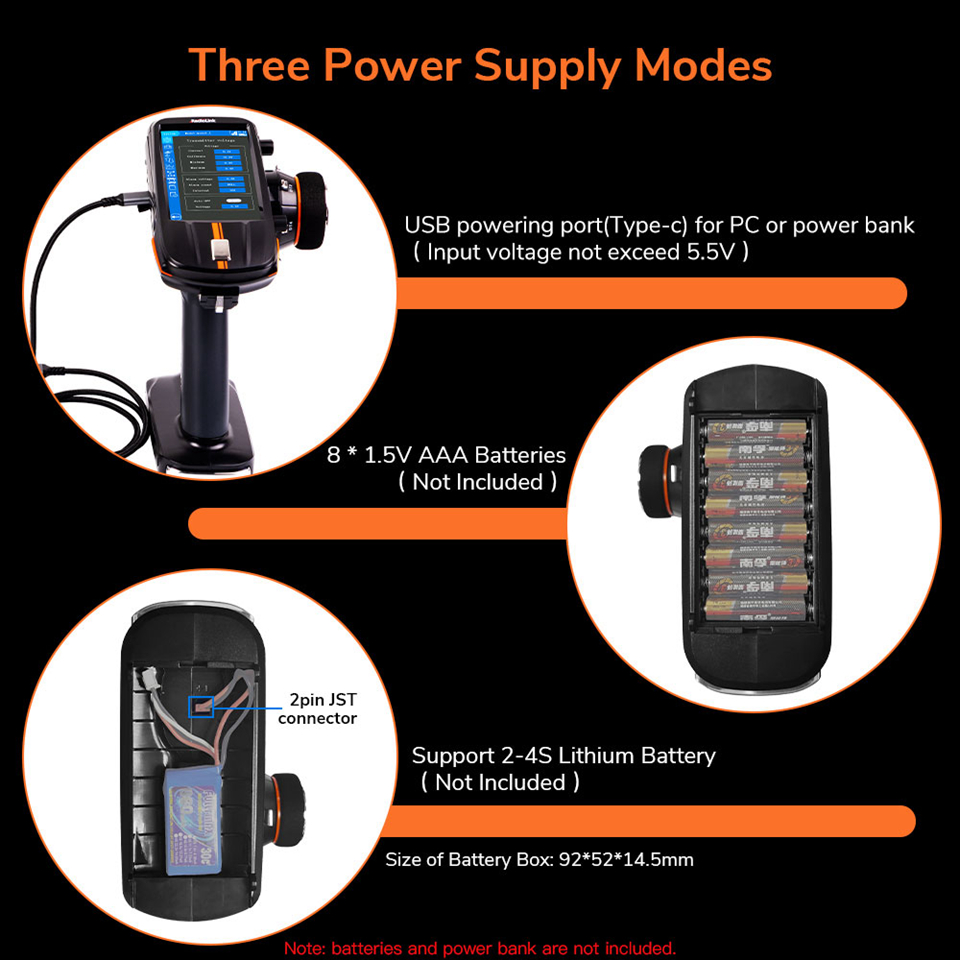

- 8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery is recommended for RC8X.
- Batteries and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

Operation Instruction:

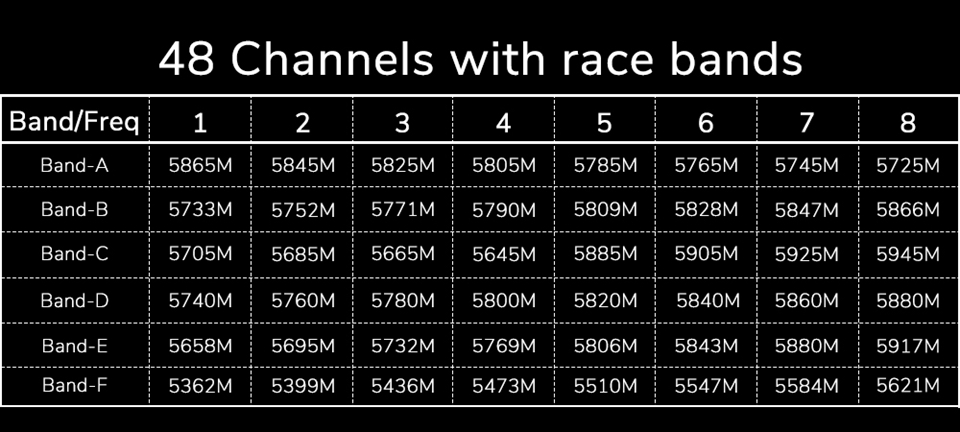

I. Frequency switching:
1. Long press the button for 5 seconds, the Red led flashes one time to enter frequency switching mode.
2. Short press the button one time to change frequency,1-8 adjustable.
3. Blue light flashes 1 time to indicate frequency 1, blue light flashes 2 times to indicate frequency 2, and then 3-8.

II. Band Switching:
1. Long press the button for 5 seconds, the Red led flashes 2 times to enter band switching mode.
2. Short press the button one time to change band,1-6 adjustable.
3. Blue light flashes onetime to indicate band 1, blue light flashes 2 times to indicate band 2, and then 3-6.

III. Transmission Power Switching:
1. Long press the button for 5 seconds, the Red led flashes 3 times to enter power switching mode.
2. Short press the button one time to change transmission power, A-F adjustable.
3. Blue light flashes onetime to indicate 25mw, 2 times to indicate 100mw, 3 times to indicate 200mw. The greater the power, the longer the transmission distance.
Note: The default transmission power is 25mw to oversea because of the policy. Please switch as you need.

IV. Transmission Mode Switching:
1. Normal working mode: The red and blue led is always on.
2. Low power modulation mode (Pitmode): The red led is on and blue led is off. Under this mode, the transmission distance is 1-2 meters.
3. Short press the button 2 times to switch the mode.
Note: After all the parameters are setup, long press the button, and the red and blue light on indicates to enter the save mode, and then the working mode, otherwise the module cannot exit the setting state and cannot save the set parameters.
