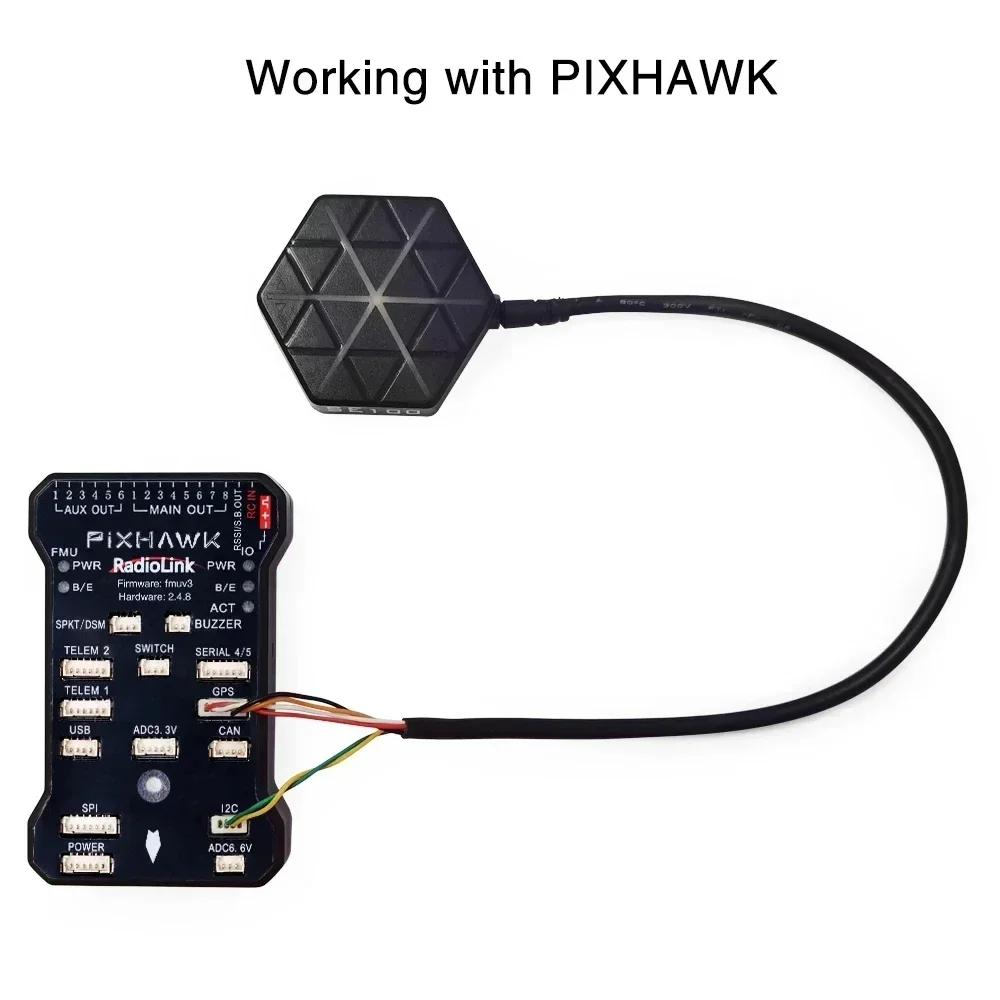

Radiolink SE100 M10N GPS Module High Precision Positioning Module for Pixhawk FPV Flight Controller

Radiolink SE100 M10N GPS Module High Precision Positioning Module for Pixhawk FPV Flight Controller

Features:

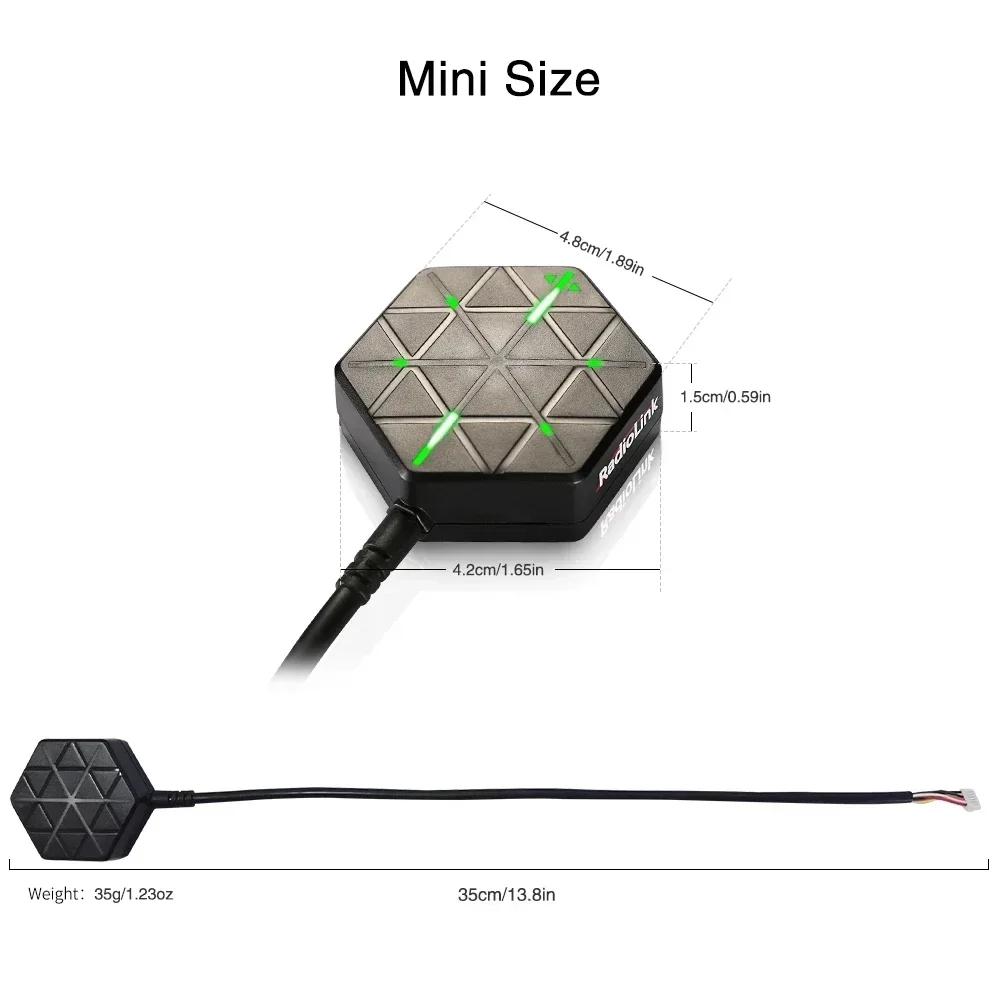

- Mini Size: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it's perfect for you racing drone and quadcopter.
- Excellent Stable: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter. Double Filter: SAWF (Surface acoustic wave filter) for Murata, Independent dual filtering technology, stronger anti-interference ability.
- Top Configuration: Design with U-box UBX-M10050(M10), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.
- Positional Accuracy and Quick: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, Beidou B1, triple-mode operation is available.
- High-performance: Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.

Advanced Configuration:
- GPS decoder chip: Radiolink GPS, with Ublox UBX-M10050(M10), 72-channel, MMIC BGA715L7 for Infineon,is much better than single GNSS 7N.
- Geomagnetic: HMC5983 for Honeywell.
- Antenna : 2.5dbI high gain and selectivity ceramic antenna.
- Power amplify IC: MMIC BGA715L7 for Infineon.
- Double filter: SAWF (Surface acoustic wave filter) for Murata.
- Compass: built-in IST8310 high-precision electronic compass.

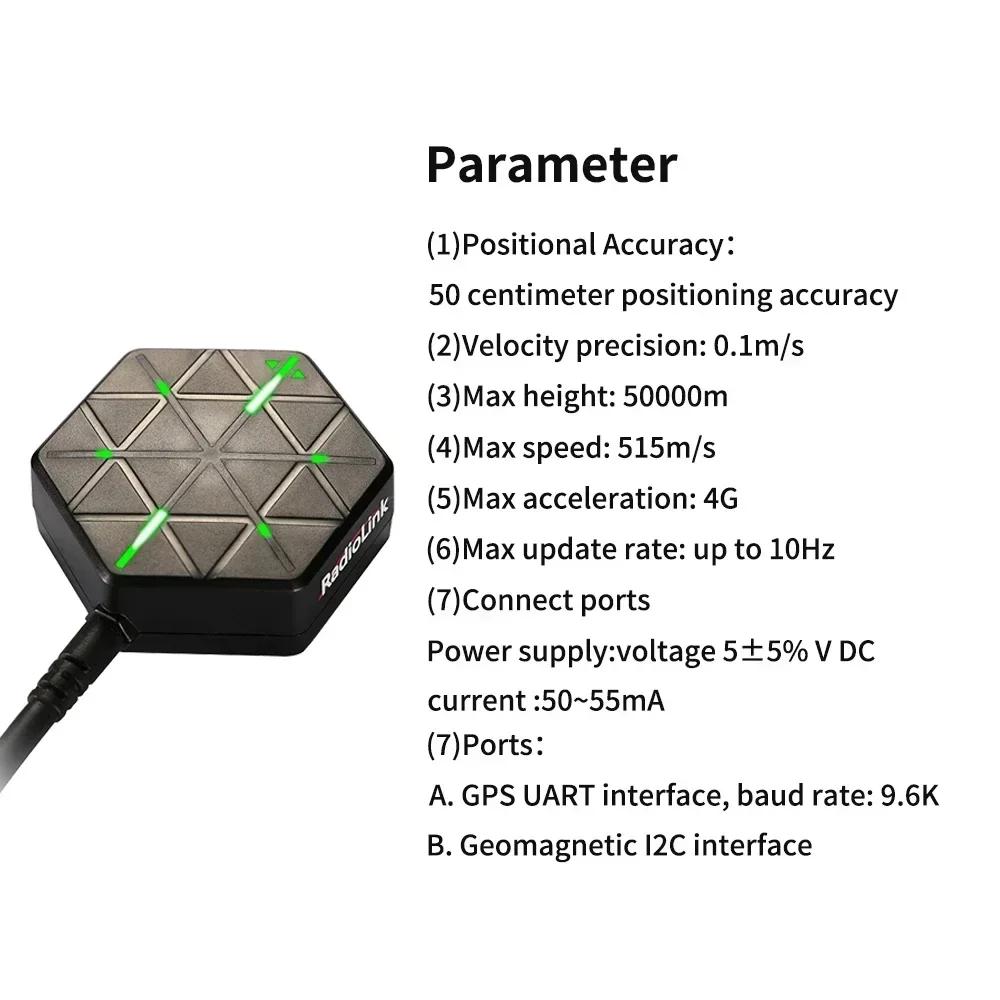

Excellent Performance:
- 50 centimeter position accuracy.
- Positioning 20 satellites in 6 seconds as open ground.
- Valley station-keeping ability.
- Concurrent reception of GPS, QZSS L1 C/A, GLONASS L10F, Beidou B1.
- SBASL1 C/A: for WAAS, EGNOS, MSAS.

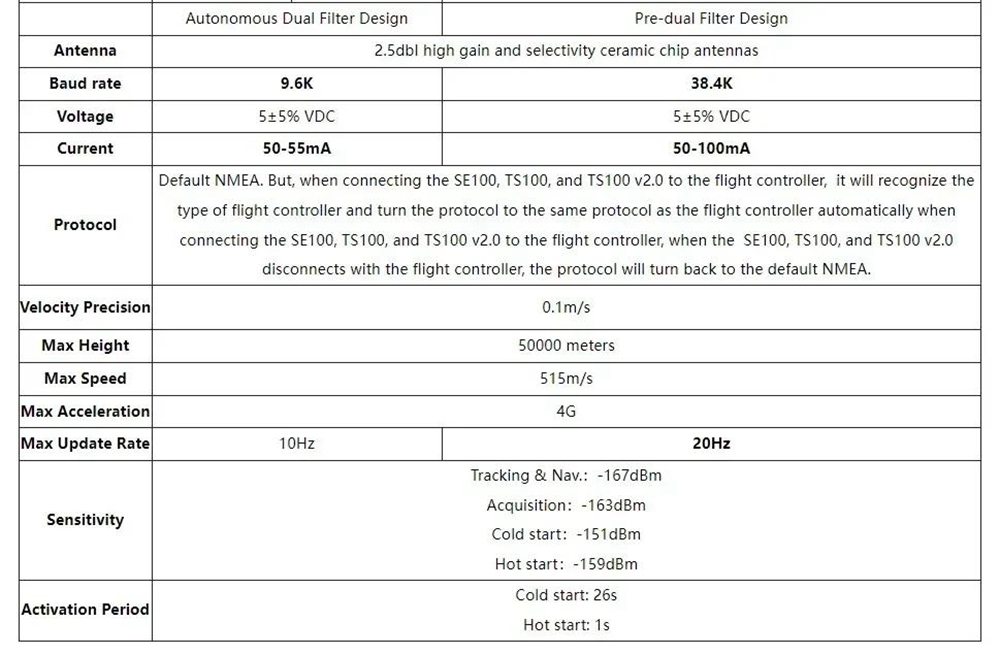

Specification:
- Positioning precision: working in 4-mode, the positioning accuracy reaches 0.5 meters; Single mode accuracy of 2.5 meters.
- Protocol: default NMEA protocol, automatically synchronizes the port protocol type (baud rate 115200) of the flight controller when connected; After disconnecting from the flight control and the button battery in the GPS is depleted (usually around 2 hours), the GPS protocol will revert back to the factory default NMEA protocol.
- Speed measuring precision: 0.1m/s
- Maximum height: 50000m
- Maximum speed: 515m/s
- Maximum acceleration: 4G
- Refresh frequency: 20Hz
- Sensitivity: -167dBm for tracking; -163dBm for catching; -151dBm for cold start; -159dBm for hot start
- Start time: 26s for cold start; 1s for hot start
- Power supply: 5±5% VDC, 50-100mA

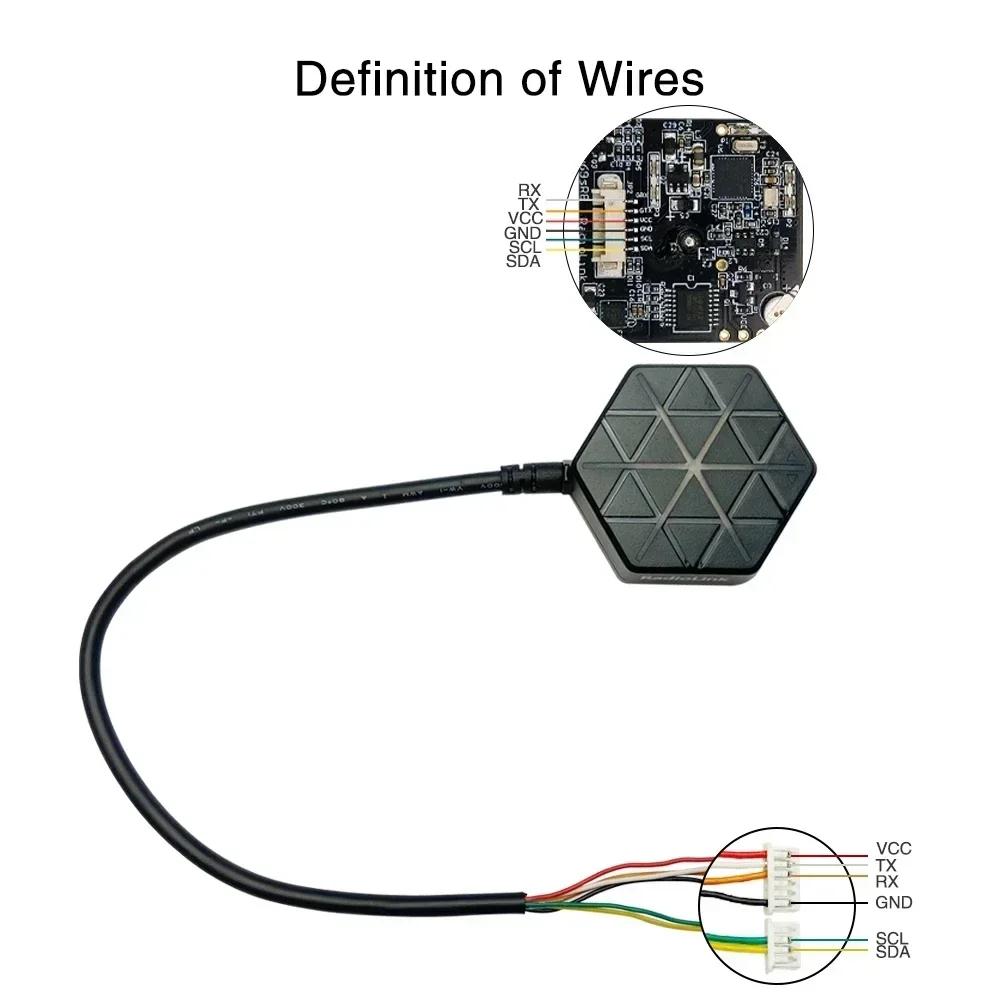

- Interface: GPS UART interface, baud rate of 38.4K; geomagnetism I2C interface

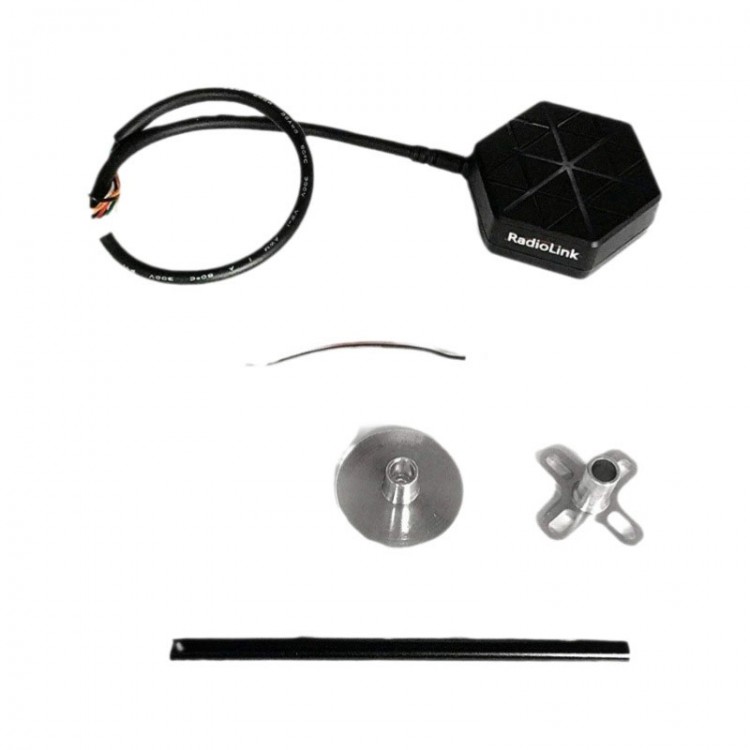

Package Included:
- 1 x GPS Module
