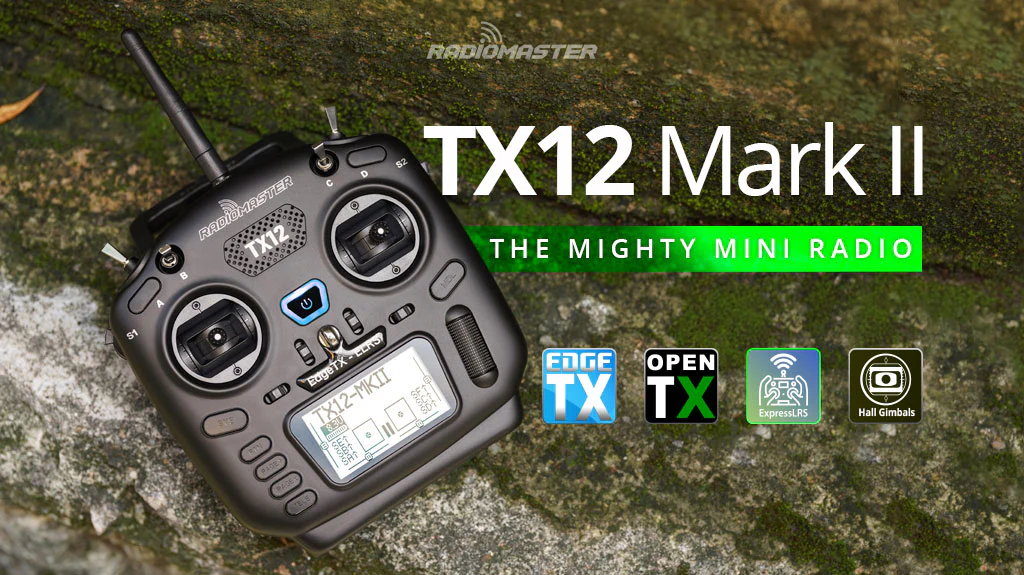

Radiomaster TX12 Mark II RC Controller Remote Controller ELRS with Left Hand Throttle for FPV Drones

Radiomaster TX12 Mark II RC Controller Remote Controller ELRS with Left Hand Throttle for FPV Drones

Read before Purchasing:
- It is the accessory of RC models, not a toy. Therefore, safety should come first. If you have any questions, please consult customer service or check the manual.
- Please comply with relevant laws when using this product. Flight in crowded areas is not allowed.
- About the battery and charger: Please charge the battery before using. Users who do not know how to wire and set up the charger must consult customer service, because incorrect settings can lead to serious injury. When the battery leaks or is damaged, please do scrap treatment, otherwise it will easily cause fire. Our store is not responsible for safety accidents caused by improper operation by users.

Features:
- TX12 is small in size and light in weight. It is comfortable to hold and light to carry. It is easier to have long-time flights
- The remote controller reserves a slot for external high-frequency module such as R9M and TBS. It has strong scalability and adapts to various models and various flight scenarios

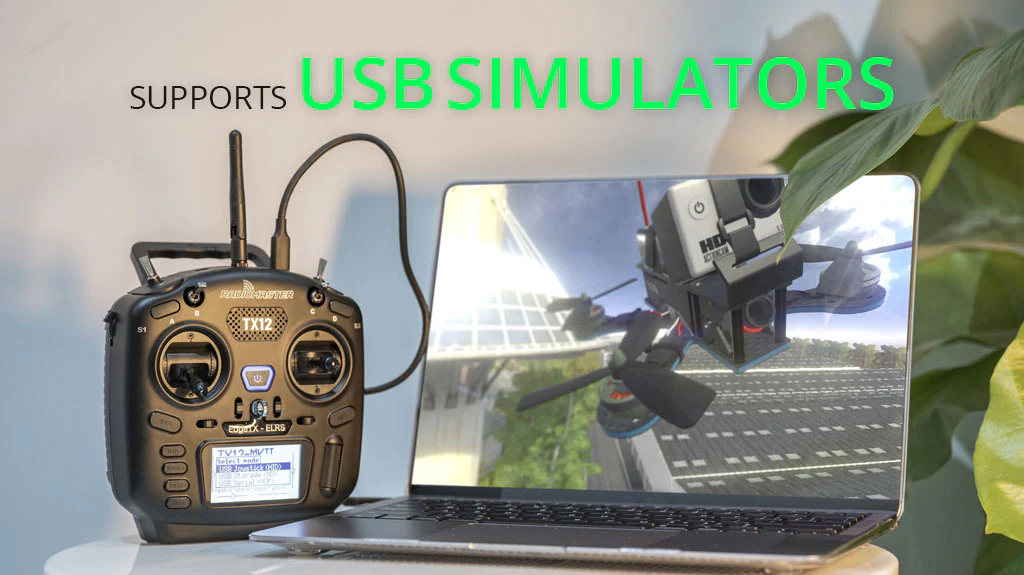

- USB interface supports remote control system to set up and upgrade. It also can be used to charge your power supply, which is convenient and practical
- Foldable handle makes it easy to store and save space
- Super cost-effective RC controller is a good choice, whether it is for entry level or regular use
- Built-in ExpressLRS module

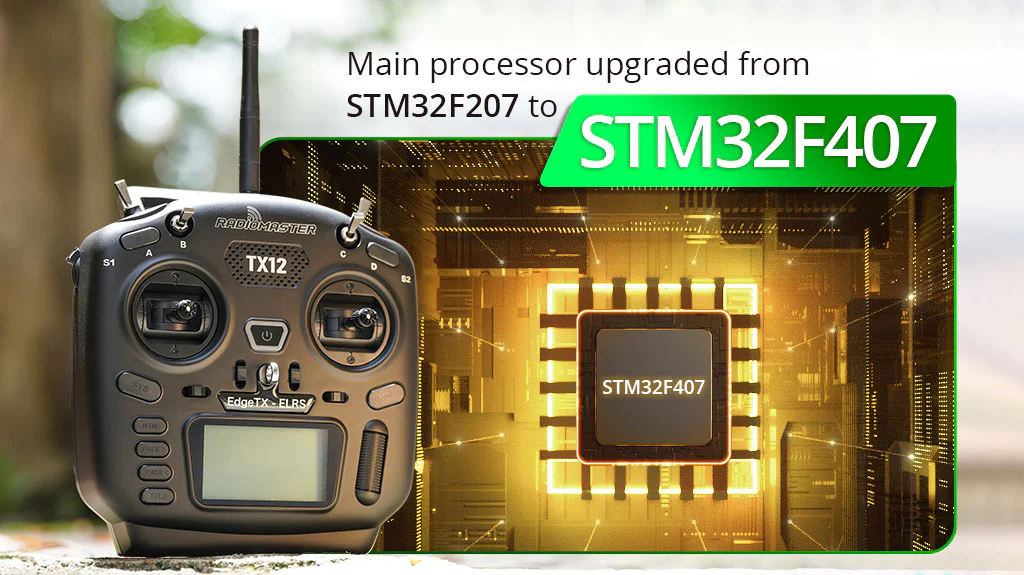

- Main board has been upgraded to STM32F407

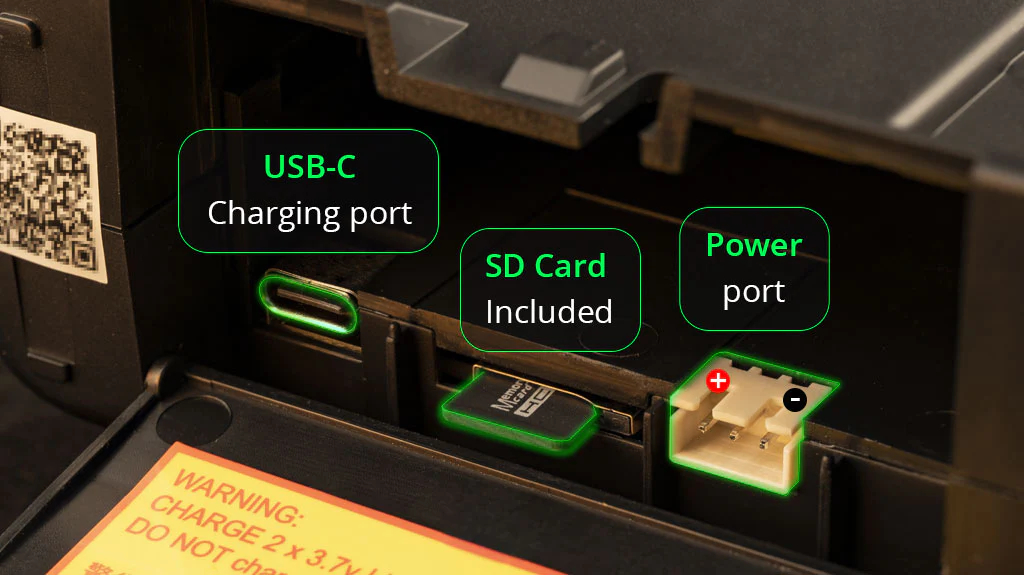

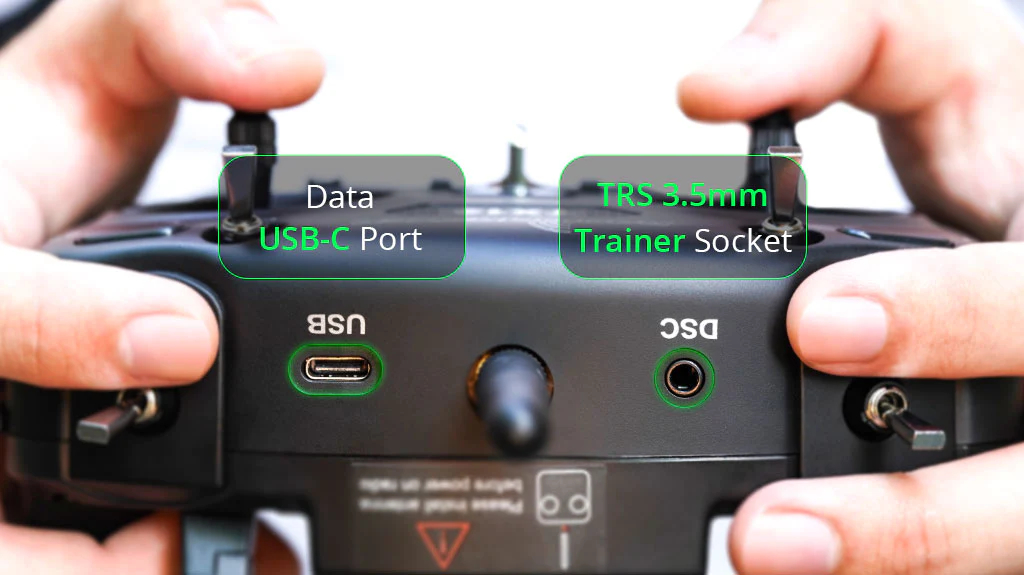

- Using USB-C interface, it supports QC3.0 fast charging

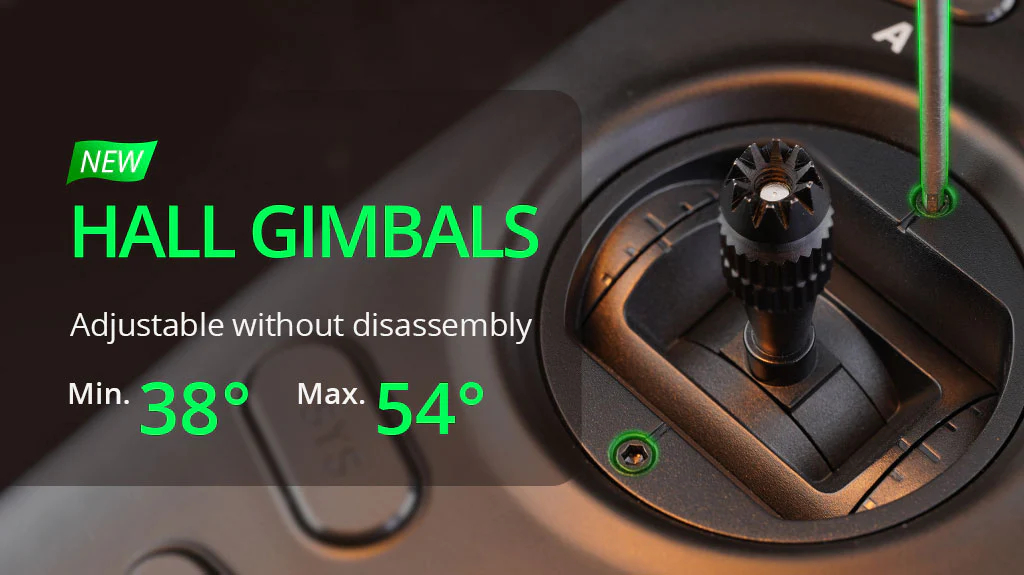

- New Hall joystick. Adjustable without disassembly
- It supports open source operation systems for EDGETX (by default) /OPENTX

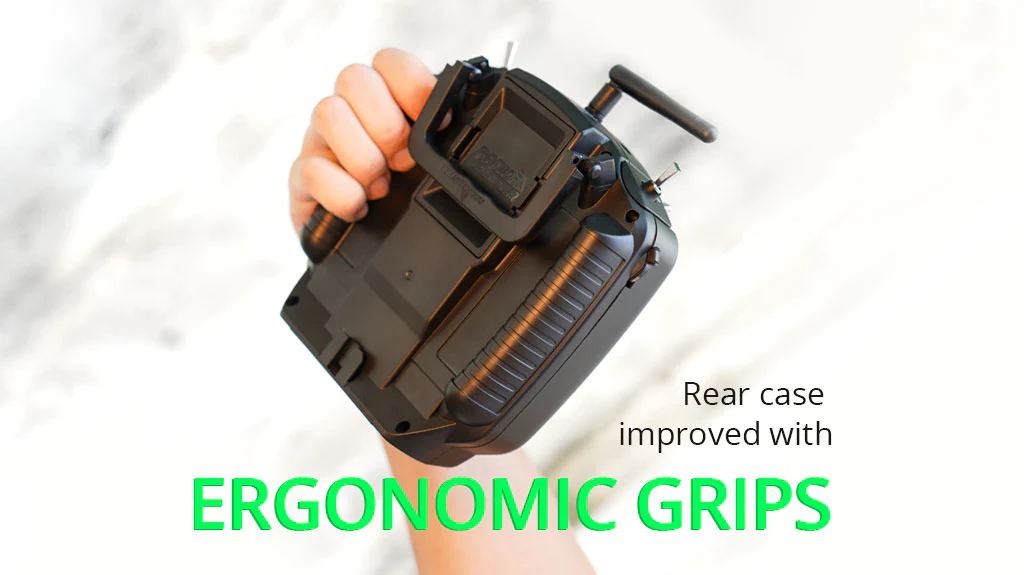

- Grips on its rear side make it comfortable to use

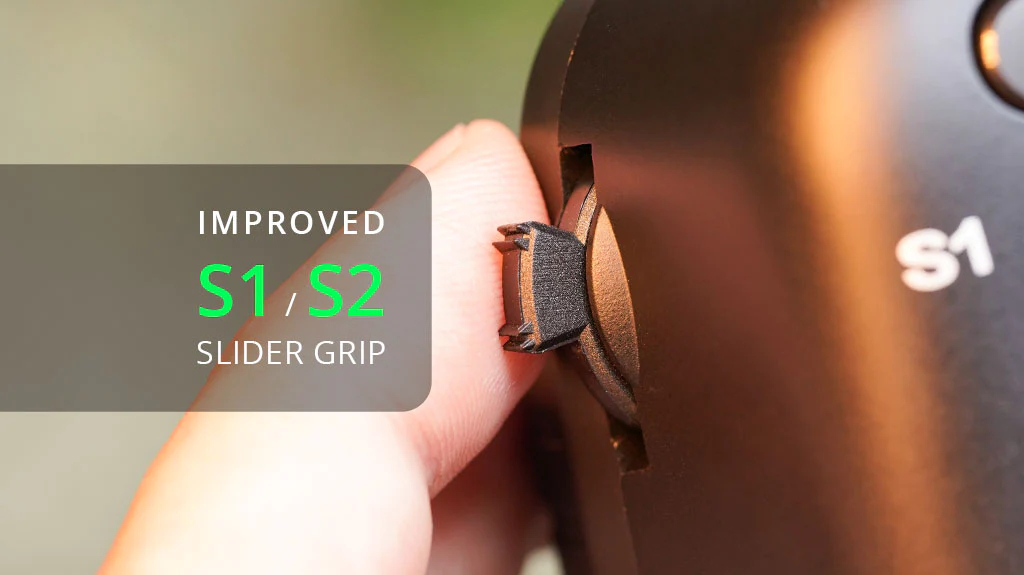

- Improved S1/S2 side slider makes it easy to use
- With a built-in SD card

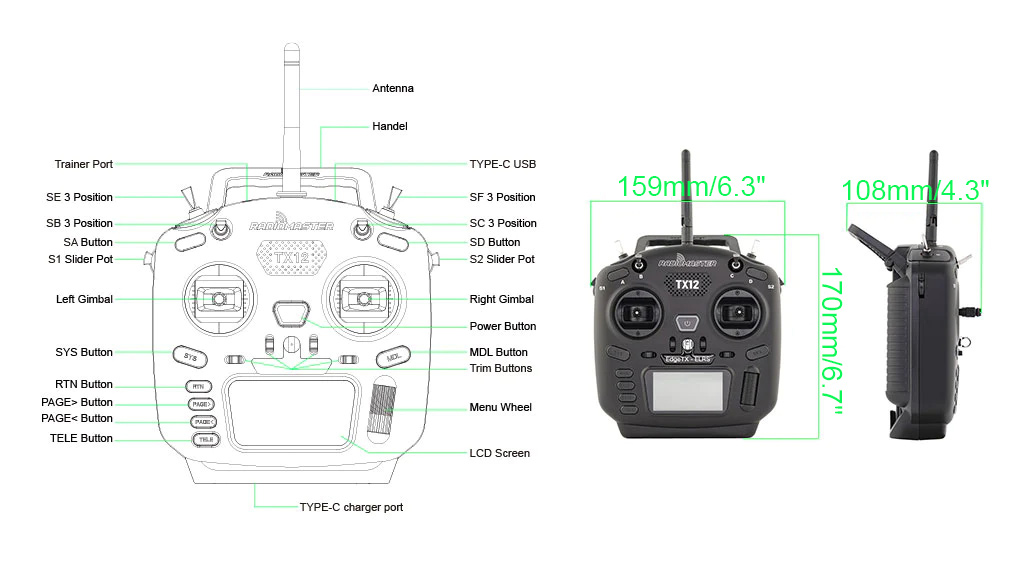

Specifications:
- Weight: 363g/0.8lb
- Transmission frequency: 2.400GHZ-2.480GHZ
- Transmitter module: Single-chip multi-protocol high-frequency module (CC2500) / ExpressLRS built-in module (ELRS)
- Supported protocols: For Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT, etc. (CC2500 version); for ExpressLRS (ELRS version)
- Transmit power: maximum 20dBm
- Antenna gain: 2dB
- Working voltage: 6.6-8.4v DC
- Remote control distance: >2km at 20dbm
- Open source firmware: For EdgeTX (remote controller) / DIY-Multiprotocol-TX-Module (high frequency module) / ELRS
- Number of channels: up to 16 channels (depending on receiver)
- Display: 128*64 monochrome LCD display
- Joystick: Hall joystick
- Compatible external module: For JR/FrSKY module
- Upgrade method: Support USB online/SD card offline upgrade
- View the list of protocols supported by DIY-Multiprotocol-TX-Module: https://github.com/pascallanger/DIY-Multiprotocol-TX-Module/blob/master/Protocols_Details.md

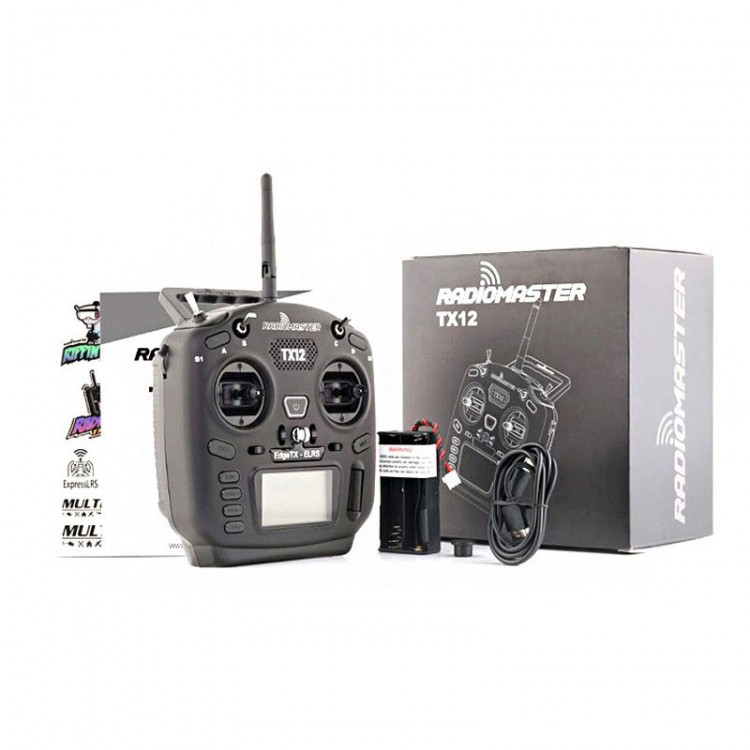

Package Included:
- 1 x RC Controller
- 1 x Antenna
- 1 x USB-C Cable
- 1 x Quick Start Guide
- 1 x Sticker

Note:
- Batteries are not included. Two 18650 batteries or 2S 21700 battery pack can be used. It supports a third-party 2S battery pack with a maximum size of 74 x 60 x 22mm/2.9 x 2.4 x 0.9".
