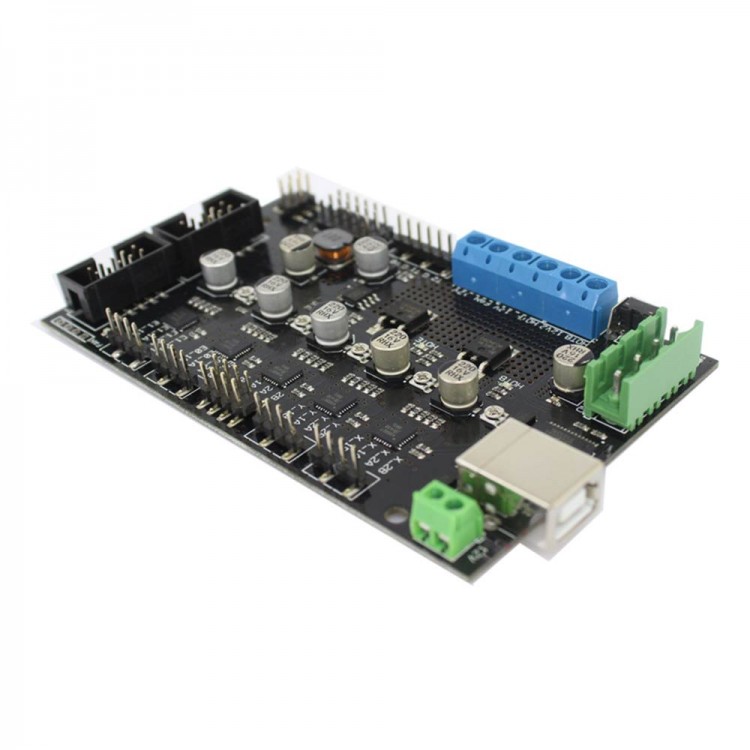

Ramps1.4+Mega2560+A4988 Integrated Board 3D Printer Mainboard Control Module Mega 3D Ramps 1.4 MELZI 2.0
Features:
- Integrate 2560, ramps1.4 and A4988 stepper motor on a board, solve the problem of Ramps1.4 composite interface
- Can replace the motor drive, support 4988 drive.
- Circuit board uses the high quality 4 layers plate, and has specially made the heat dissipation optimization processing
- High quality MOSFET tube, better heat dissipation.
- Adopt special power chip, support 12V power input, solve the problem of Ramps voltage conversion chip heating.
- The firmware can use the open source firmware Marlin, configurationis same with ramps1.4, can directly replace Ramps1.4.
- Can be directly connected to the Ramps1.42004LCD control board and 12864LCD control board.
-Reserved for Servos on Ramps1.4, AUX-1, AUX-2 interface, to provide 3*5V output, 3* 12V output interface.
- Support 15A current, more powerful, more stable
Note:
- If the Power supply is reversal connections, motor driver board will burn the chip and circuit, please confirm again to power on
- Supporting the line can refer to: 2PIN, 4PIN, 3PIN
Package included:
- 1 x Ramps1.4+Mega2560+A4988 Integrated Board
