Product Description:

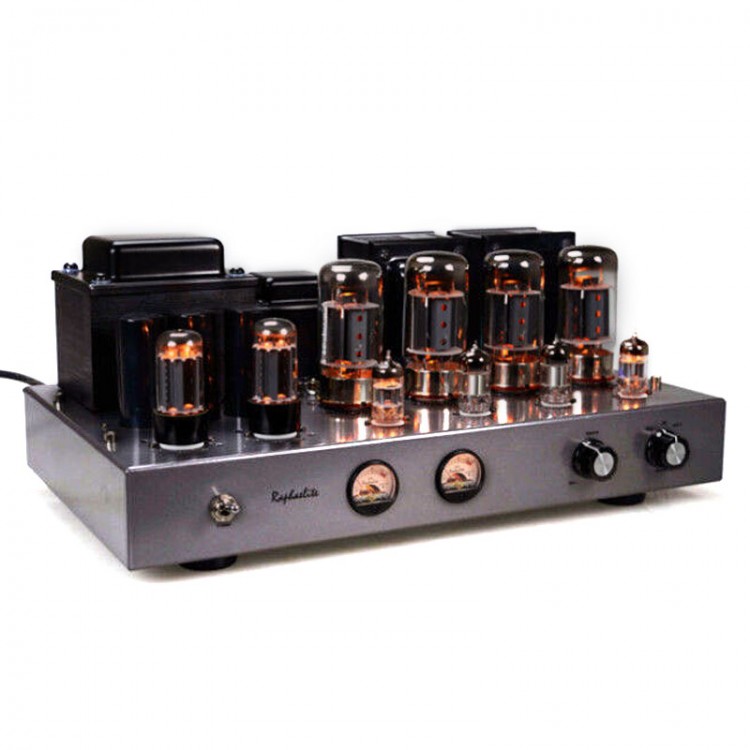

- Raphaelite CP65 Multi-function push-pull KT88、6550、EL34、KT66 tube amplifier
- This is Multipurpose tube amplifier, compatible KT88,6550, EL34, KT66 tubes, after the power toggle switch to the appropriate gear, and adjust the tube current, allows each tube are working in the best operating point.

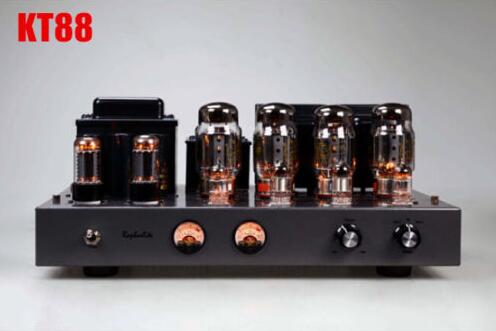

KT88 ---- 50~60mA

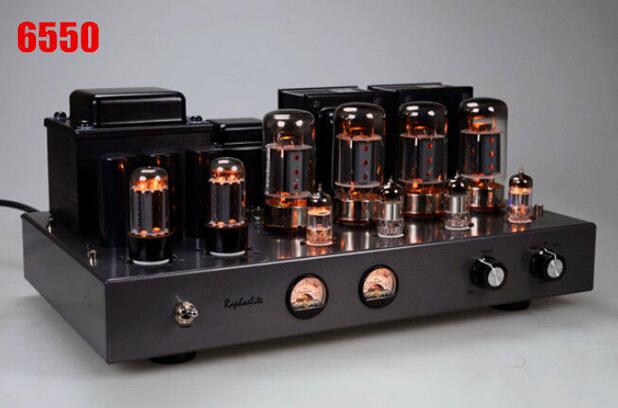

6550 ---- 50~60mA

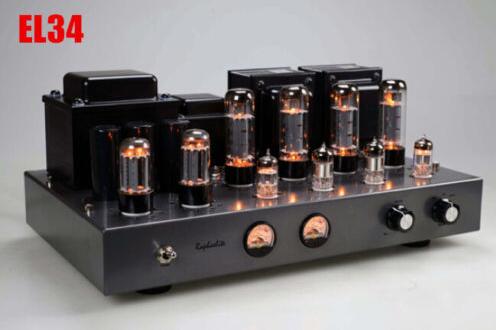

EL34 ---- 45~50mA

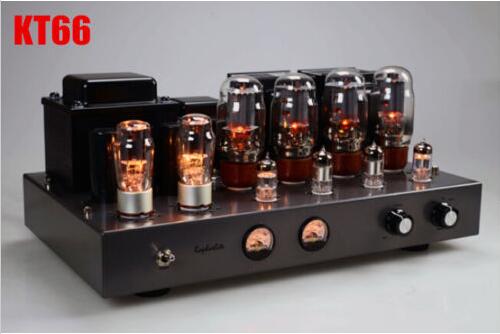

KT66 ---- 50~60mA
- The Default version is CP65(6550 tube),if you want other version pls mail me for the technical Parameters and exact price!

CP65 Technical Parameters:
- Article: CP65 power amplifier
- Model: CP65
- Art. No. : Z-006
- Tubes: 5AR4×2 、EF86×2、 12AT7×2、 Svetlana 6550×4
- Input Sensitivity: 300mV
- Power Output: 2×50W （RMS THD<1%）
- S / N Ratio: 80dB
- Input Impedance: 100KΩ
- Output Impedance: 4Ω, 8Ω
- AC Input: 100V-240V/50-60Hz (PLS mail me for the Voltage you want,For 110V/240V we need extra 3days)
- Power Consumption: 200W
- Frequency Response: 5Hz – 60KHz -1dB
- Dimension: 430×260×200（W-D-H）
- Net Weight: 22KG（26KG with package）

CP65 Features：
1. full tube rectification
power supply using Raphaelite high-quality 400W transformer, full-wave dual tube rectifier.
2. low leakage inductance of the output transformer
Output transformer is the core of tube amp, and this machine use Raphaelite 50W Low leakage inductance output transformer, the use of sub-layered around the system,Primary Secondary staggered up to 9 layers, extremely difficult.
3, multi-model power tube selection
This feature is convenient for the user to adjust the mix and tone, CP65 main power supply design for dual voltage selection. Users simply open the safety lock to switch two-way switch, adjust the use of different power tubes. This machine can use EL34, KT66,5881,6550, kt88 tubes, with humanization current adjustment device, you can make different types of tube work right in the most appropriate operating point.
4, Multi-purpose ammeter head

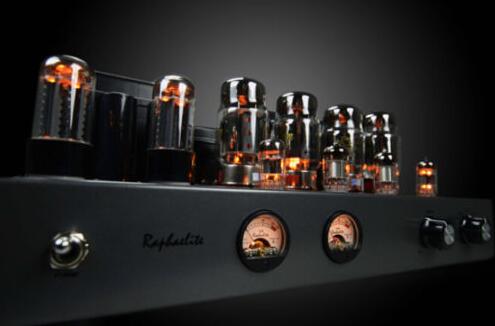

CP65 front design has two Taiwanese production of tungsten backlight meter for monitoring output level left and right channels. Also use this meter Cooperate with transistor Screen flow detection switch, to facilitate testing and adjusting the quiescent current of each Screen flow detection switch. With this design, users can detect and adjust the working status of the power tube, do not open the cabinet in strenuous, with a multimeter to adjust, use more convenient.
5, stable and reliable import tubes
6550 and kt88 tubes are high-power high-calorie, for the pursuit of consistency and reliability, the machine power to control the use of the Russian svetlana 6550 served. Similarly rectifier and voltage amplification as imported products. Rectifier using two Russian SOVTEK the 5AR4, voltage control the use of two U.S. and two Russian GE 12AT7 EH's EF86. Used in this circuit do pentode EF86 preamp, which is commonly used in the United States and the United Kingdom early tube amp design, for example QUAD2, LEAK TL-12, MARANTZ-8B and other classic crew are used too. This pentode if properly designed, mellow sound, active, flexible, allowing users to find vintage tube amp sounds feelings.

CP66 Technical Parameters:
- Article: CP66 PA
- Model: CP66
- Tubes: 5Z4-T × 2 EF86 × 2 12AT7 × 2 KT66 × 4
- Input Sensitivity: 300mV
- Power Output: 2 × 20W (RMS THD <1% 1KHz 8Ω)
- S / N Ratio: 80dB
- Input Impedance: 100KΩ
- Output Impedance: 4Ω, 8Ω
- AC Input: 110V/220V/230V/240V
- Power Consumption: 190W
- Frequency Response: 7Hz - 50KHz -3dB
- Dimension: 430 × 260 × 200 (W-D-H)
- Net Weight: 22KG

Package List:
- 1 x  CP65 Tube Amplifier
