Specifications

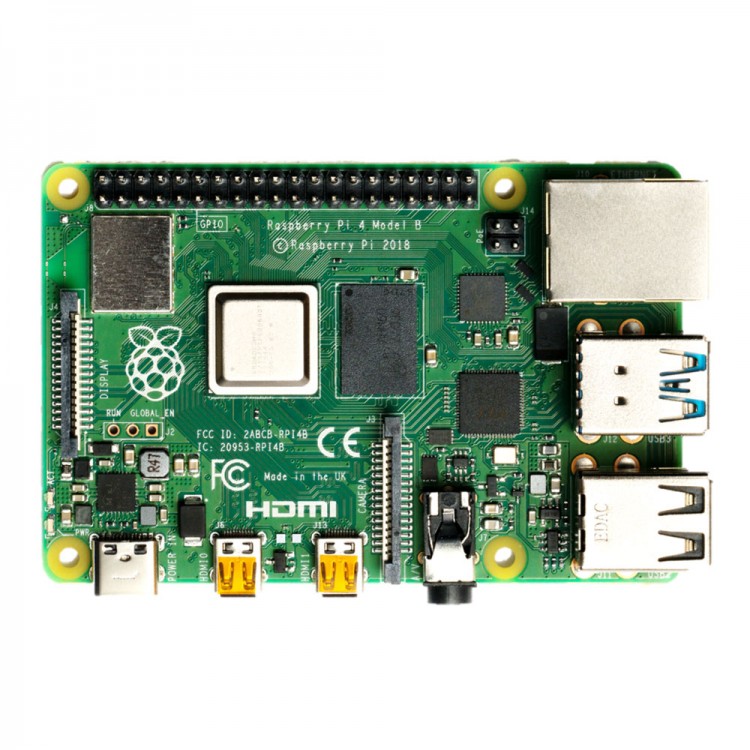

Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
Gigabit Ethernet
2 USB 3.0 ports; 2 USB 2.0 ports.
Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
2 × micro-HDMI ports (up to 4kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
OpenGL ES 3.0 graphics
Micro-SD card slot for loading operating system and data storage
5V DC via USB-C connector (minimum 3A*)
5V DC via GPIO header (minimum 3A*)
Power over Ethernet (PoE) enabled (requires separate PoE HAT)
Operating temperature: 0 – 50 degrees C ambient
* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
Documents
Raspberry Pi 4 Model B product brief
Raspberry Pi 4 Model B schematic diagrams
Raspberry Pi 4 Model B mechanical drawing
Documentation including hardware and configuration
Software & OS
Beginners
should start with the NOOBS (New Out Of Box Software) operating system
installation manager, which gives the user a choice of operating system
from the standard distributions.
Raspberry Pi OS (previously called Raspbian) is the recommended operating system for normal use on a Raspberry Pi.
Find help with installing Raspberry Pi OS on your Raspberry Pi in official online Getting started guide.
You
can browse basic examples to help you get started with some of the
software available in Raspberry Pi OS, find more detail about Raspberry
Pi OS, or read information on fundamental Linux usage and commands for
navigating the Raspberry Pi and managing its file system and users.
Package included:
- 1 x Raspberry Pi 4 8GB Board
