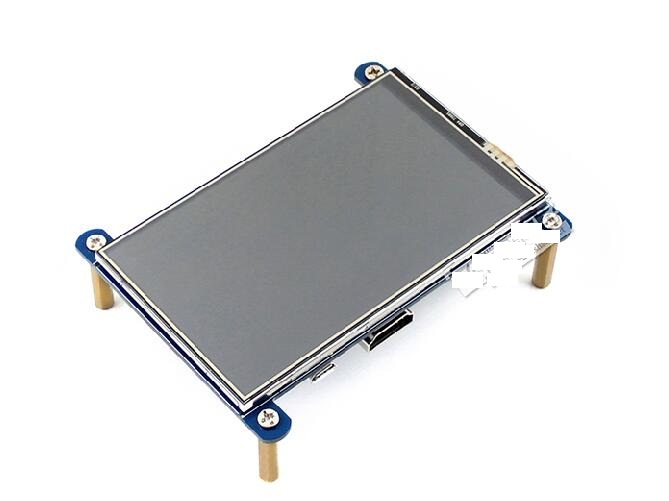

Raspberry Pi HDMI LCD Resistance Screen Display IPS Touch 800×480 4.0 inch

Raspberry Pi HDMI LCD Resistance Screen Display IPS Touch 800×480 4.0 inch

Product parameter:
- Mode:4.0 inch HDMI LCD
- Resolution:800×480
- Display interface:HDMI
- Touch interface:RPi I/Os
- Application:only Pi

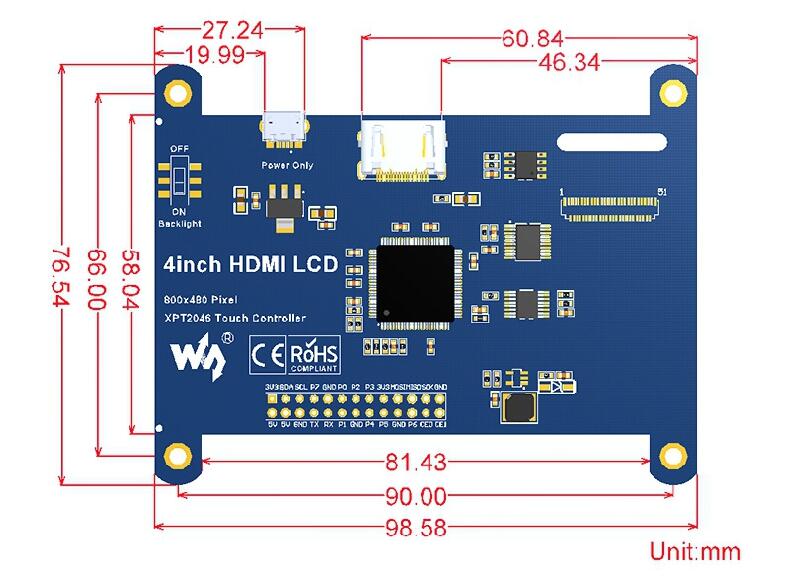

- Dimension:99 × 58
- Touch screen type:Resistance type touch control
- Feature:IPS screen
- Compatible and can direct insert any version RPi (RPi generationⅠB type and RPi Zero,you need HDMI connecting wire)
- Supply Raspbian/Ubuntu sysstem drive( Users can directly use it in original Raspbian/Ubuntu system)
- It can be as computer monitor,no-touch function (HDMI cable is needed when you connect computer)
- Merely use for display,it occupy no I/O source (If you use touch screen function,it occupy I/O)
- Support backlight control,elevtricity-saving.

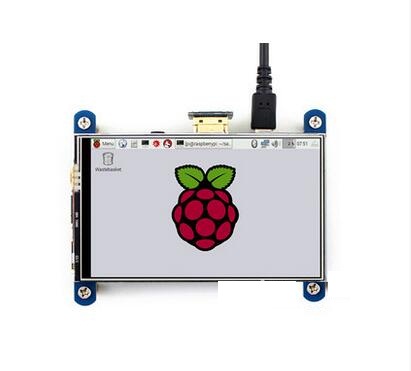

RPi 4.0inch HDMI Display Screen,800×480 HD resolution,with resistance touch screen.

Note:
- Pi refers to Raspberry Pi

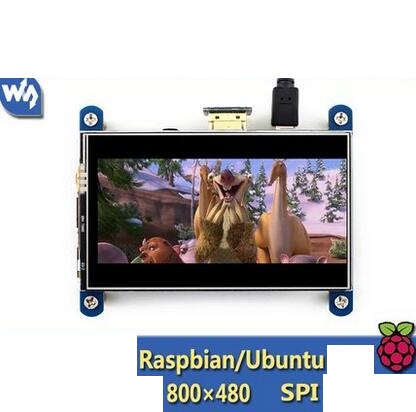

- If you want to gain better video paly experience,we suggest you choose HDMI display interface LCD.

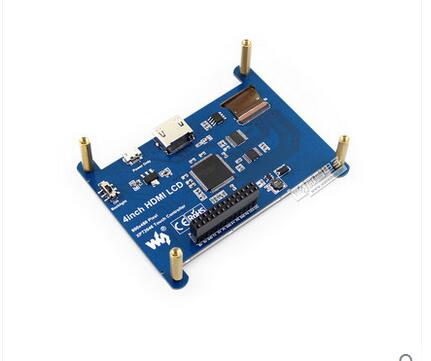

Interface Definition:
Pin number Identifying  description
1、17    3.3V    power+ (3.3V power input)
2、4    5V    power+ (5V power input)
3、5、7、8、10、11、12、13、15、16、18、24    NC    NC
6、9、14、20、25    GND    power ground
19    TP_SI    touch panel SPI data input
21    TP_SO    touch panel SPI data output
22    TP_IRQ    touch panel break,test the touch panel is pressed down,it is low level.
23    TP_SCK    touch panel SPI clock signal
26    TP_CS    touch panel chip Select,low level choose touch panel.

User manual:Click here

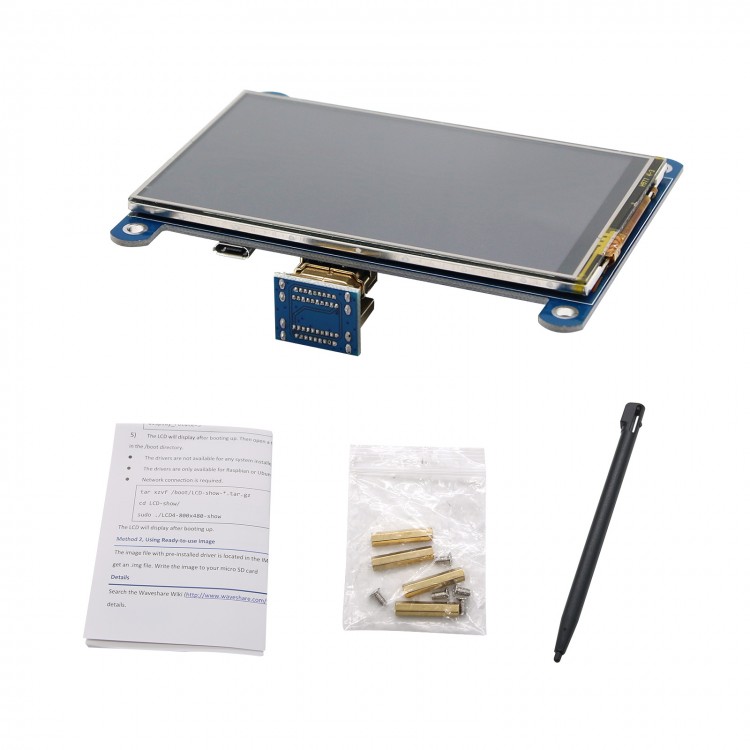

Package List:
- 1 x 4.0 inch HDMI LCD
- 1 x HDMI Connector
- 1 x Resistance screen touch pen
- 4 x RPi Copper package
- 1 x CD
