Raspblock AI Smart Robot Car Unassembled Autonomous Driving With Main Board For Raspberry Pi 4B/2G

Raspblock AI Smart Robot Car Unassembled Autonomous Driving With Main Board For Raspberry Pi 4B/2G

Description:

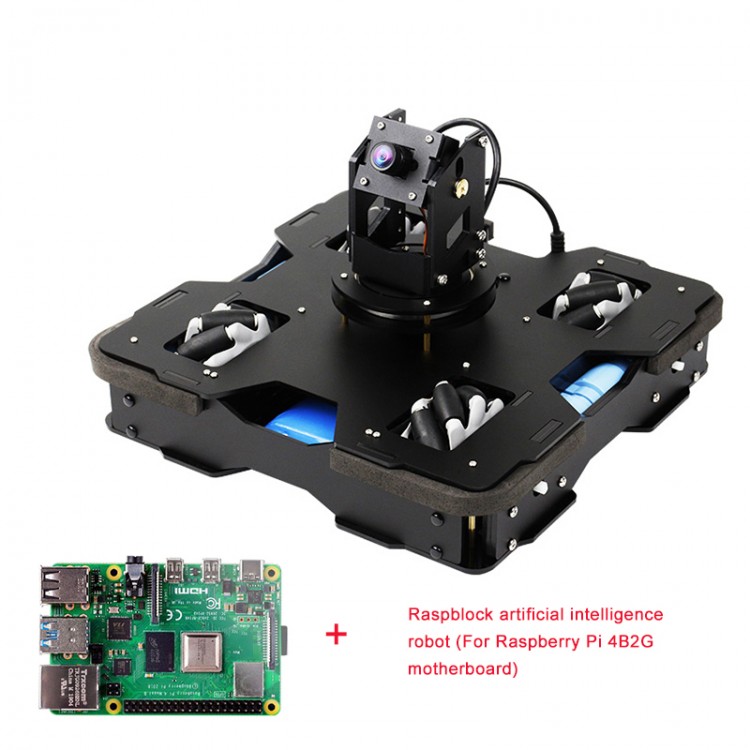

Raspblock omnidirectional intelligent robot is designed for Raspberry Pi. Open Source CV is the image processing library, mainstream development tool for Jupyter Lab is used, and programming language for Python3 is used. It combines omnidirectional Mecanum wheels and 2DOF camera, 1DOF manual lifting gimbal, can realize color recognition and tracking, face recognition and tracking, object recognition and tracking, gesture recognition, QR code recognition, machine learning (For KNN, CNN, Smart gameplay such as SVM, TensorFlow), handwritten digit recognition, voice broadcast and multiple control methods of omnidirectional Mecanum wheels.

Specifications:
- Microprocessor: For Raspberry Pi 4B Broadcom BCM2711
- Operating system: For Raspberry Pi's official Linux system is based on that for Debian
- Programming language: For Python3
- Input: 2MP HD wide-angle camera, gyroscope, encoder
- Output: Four independent motor interfaces, buzzer, horn, 4 PWM servo interfaces
- Attitude calibration: gyroscope attitude calibration
- PTZ rotation: 180 degree PWM servos, manual lifting
- Remote control method: mobile APP (WIFI), for PS2 handle (WIFI)
- Safety protection: reverse connection protection, over-current protection, low voltage alarm, voltage monitoring (Note: reverse connection protection does not include servo interface, please install it according to the instructions to avoid burning the expansion board)
- Motor: Motor with code plate*4
- Communication method: WIFI communication
- Car tire: omnidirectional Mecanum wheel
- Assembly size: 235*235*150mm (standard structure)
- Assembled weight: 1420g

Package Included:
- 1 x Main Board For Raspberry Pi 4B/2G
- 1 x Expansion Board
- 1 x Set of Acrylic Car Body
- 1 x Set of PTZ Acrylic
- 1 x Camera Lifting Frame
- 1 x Camera Holder
- 1 x Camera Fixing Bracket
- 1 x Camera
- 1 x Remote Joystick
- 1 x Set of Anti-Collision Cotton
- 2 x Anti-Dust Nets
- 2 x Magic Tapes
- 2 x Mecanum Wheels R
- 2 x Mecanum Wheels L
- 4 x Motors
- 1 x Charger
- 1 x Card Reader
- 1 x Bearing 6010ZZ
- 2 x Bags of Servos
- 1 x Bag of Fan
- 1 x Audio Cable
- 1 x Camera Connection Cable
- 1 x HDMI To MICRO Cable
- 1 x Connection Cable For Main Board
- 1 x Speaker
- 4 x Motor Cables
- 1 x Screwdriver + Tweezers
- 5 x Bags of Parts

Note:
- Assembling is needed.
- Rich course materials are provided after purchasing.
- 18650 battery group (12.6V) is highly recommended. Battery is not included in the package.
- 16G TF card is not included. You can burn Raspblock image according to the tutorials.
